ETIMAT 10 3p+N D32 Circuit breaker 002156719

Name: ETIMAT 10 3p+N D32 Circuit breaker
Brand: ETI POLAM
SKU: ABD027ETIP
Price: 120.15 PLN
Availability: BackOrder

Index local:

ABD027ETIP

Numéro de catalogue:

002156719

Code EAN:

5902047600289

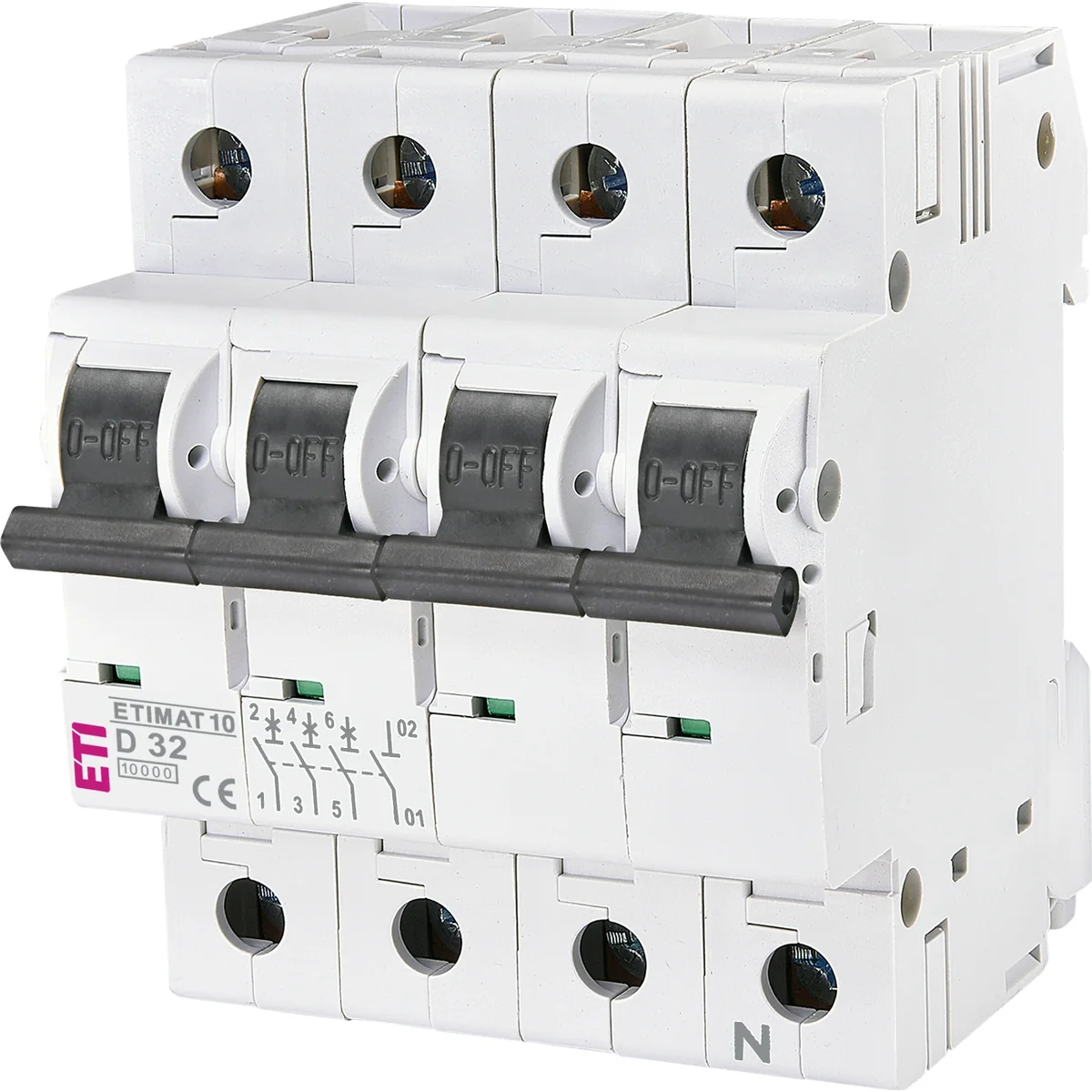

Cliquer sur la photo pour l'agrandir

Producteur: ETI POLAM

Prix:

120,15 zł

gross / pcs.

(y compris la TVA 23%)

2 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Données techniques Détails du fabricant Fichiers à télécharger

Données techniques

Built-in depth

68 mm
Number of poles (total)

4
Rated current

32 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Concurrently switching neutral conductor

Yes
Pollution degree

3
Width in number of modular spacings

4
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

D
Number of protected poles

3
Rated insulation voltage Ui

500 V
Voltage type

Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
