ETIMAT 10 3p+N C32 Circuit breaker 002136719

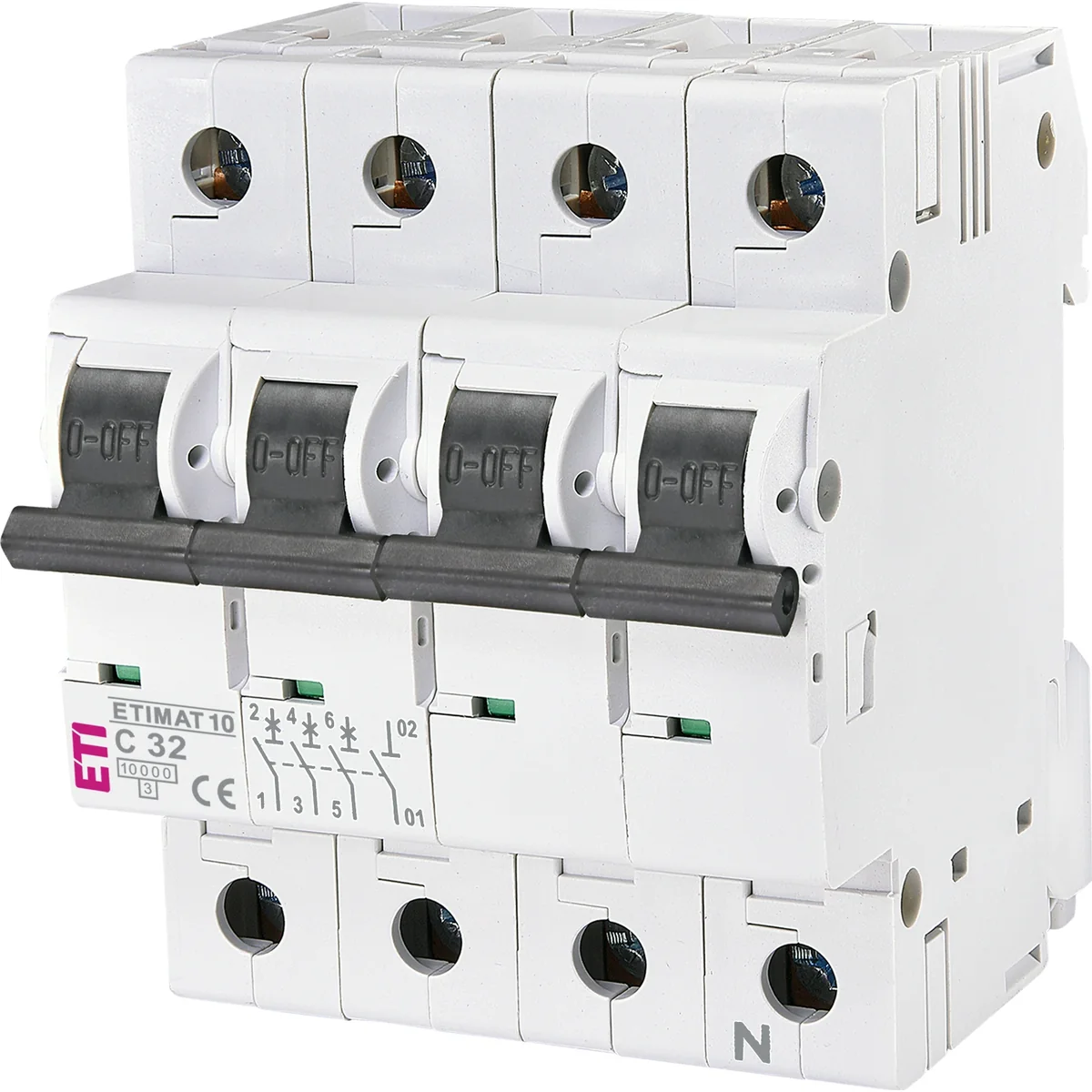

Name: ETIMAT 10 3p+N C32 Circuit breaker
Brand: ETI POLAM
SKU: ABC072ETIP
Price: 114.27 PLN
Availability: BackOrder

local index:

ABC072ETIP

Catalog number:

002136719

EAN code:

5904722942462

Click on the photo to enlarge

Manufacturer: ETI POLAM

Price:

114,27 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Built-in depth

68 mm
Number of poles (total)

4
Rated current

32 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

C
Number of protected poles

3
Rated insulation voltage Ui

500 V
Voltage type

Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

Yes
Pollution degree

3
Width in number of modular spacings

4
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
