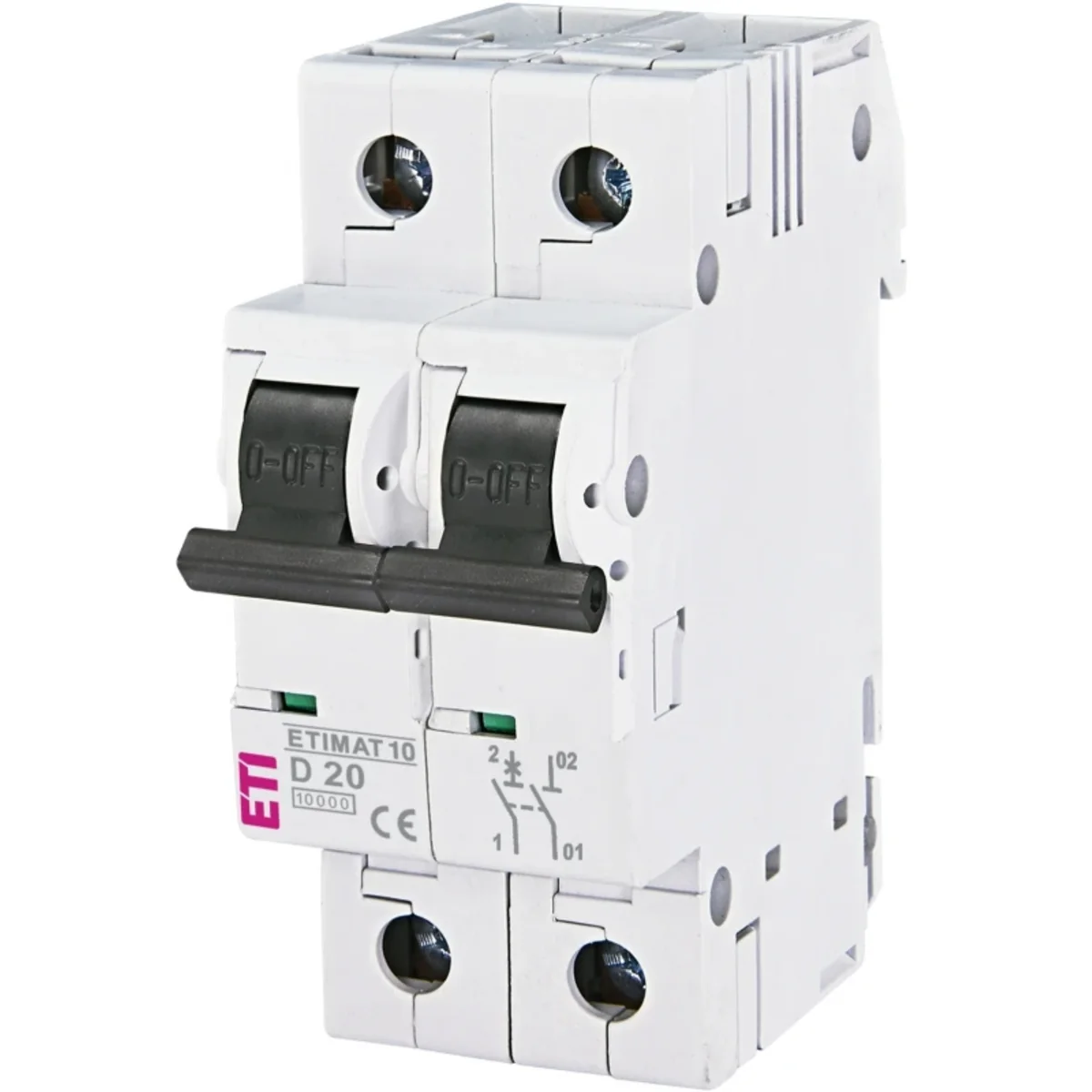

ETIMAT 10 1p+N D20 Circuit Breaker 002152717

Índice local:

ABD108ETIP

Número de catálogo:

002152717

Código EAN:

5902047600104

Haga clic en la foto para ampliar

Fabricante: ETI POLAM

68,68 zł

gross / uds. (IVA incluido 23%)

Dostępne hasta una semana

Por encargo

Elija su mayorista

Seleccione

Cantidad uds. (múltiple: 1 )

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Archivos para descargar

Datos técnicos

Built-in depth

68 mm
Number of poles (total)

2
Rated current

20 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Concurrently switching neutral conductor

Yes
Pollution degree

3
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

D
Number of protected poles

1
Rated insulation voltage Ui

500 V
Voltage type

Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
