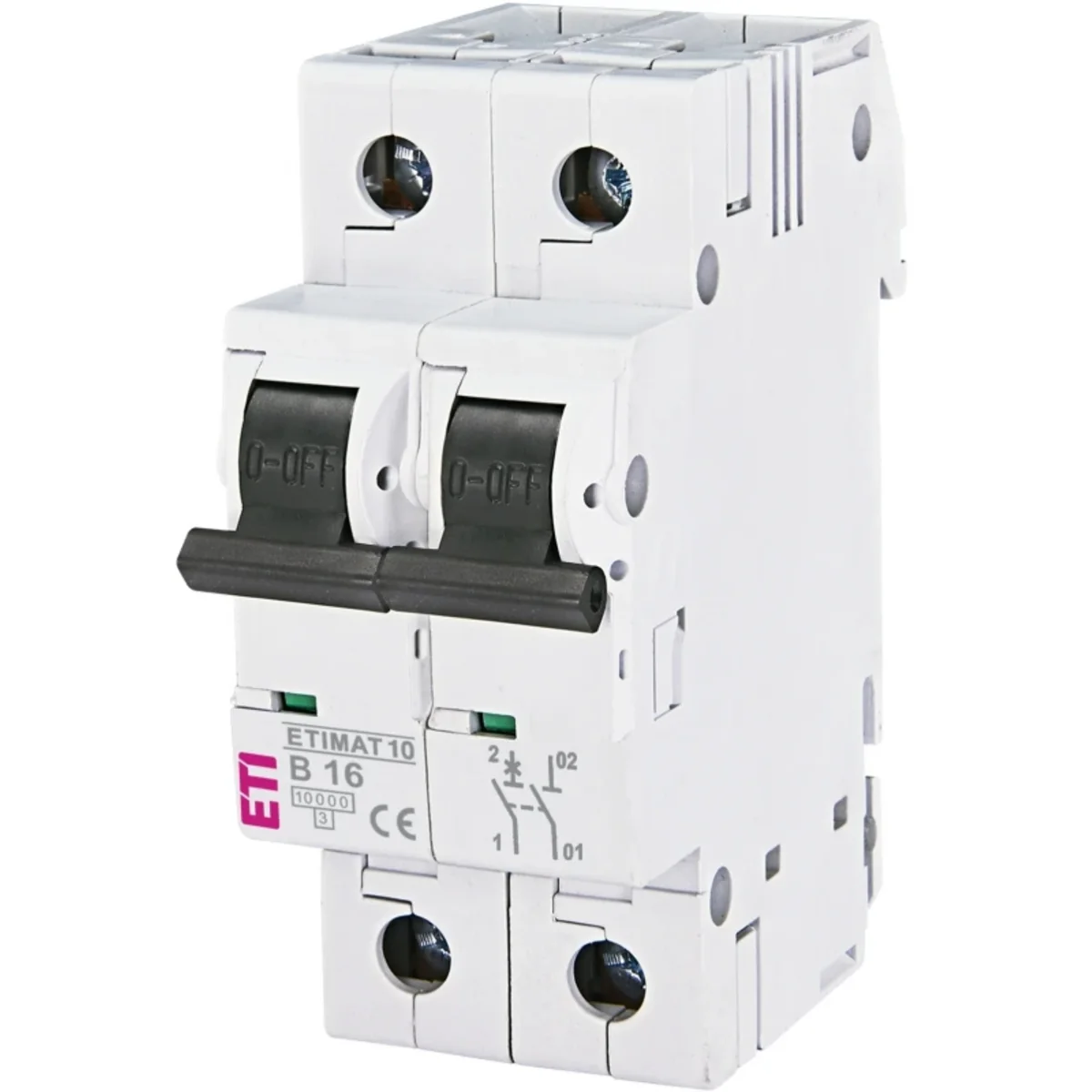

ETIMAT 10 1p+N B16 Overcurrent circuit breaker 002122716

Name: ETIMAT 10 1p+N B16 Overcurrent circuit breaker
Brand: ETI POLAM
SKU: ABB033ETIP
Price: 49.95 PLN
Availability: BackOrder

Indeks lokalny:

ABB033ETIP

Numer katalogowy:

002122716

Kod EAN:

5904722942097

Kliknij zdjęcie, aby powiększyć

Producent: ETI POLAM

Cena:

49,95 zł

gross / szt.

(w tym VAT 23%)

do 4 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Dane techniczne

Built-in depth

68 mm
Number of poles (total)

2
Rated current

16 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

Yes
Pollution degree

3
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

B
Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
