EFI-P4 AC 63/0.03 4-pole residual current circuit breaker 002061613

Name: EFI-P4 AC 63/0.03 4-pole residual current circuit breaker
Brand: ETI POLAM
SKU: ARP036ETIP
Price: 59.56 PLN
Availability: InStock

local index:

ARP036ETIP

Catalog No:

002061613

EAN code:

3838895865056

EFI-P4 AC 63/0.03 4-pole residual current circuit breaker

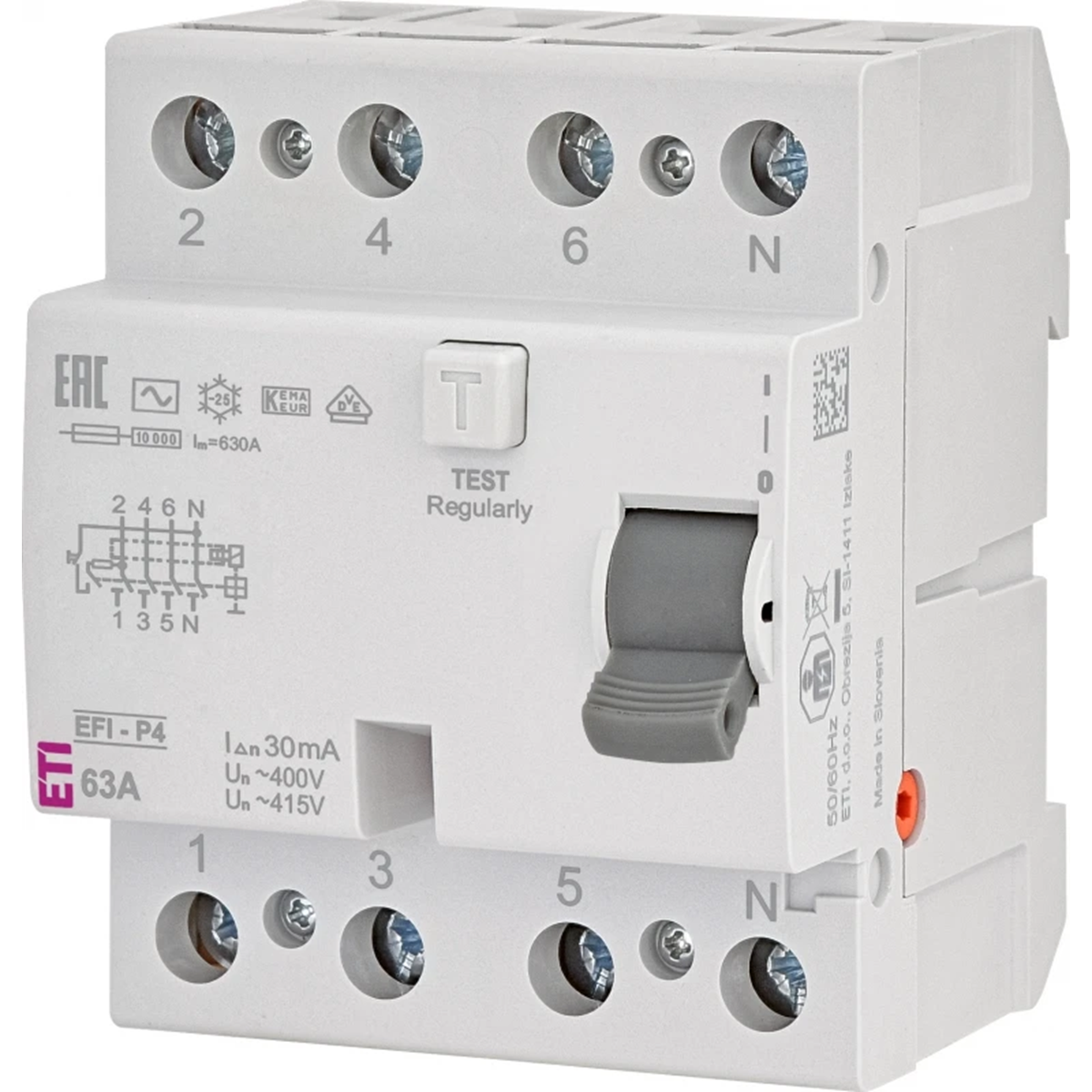

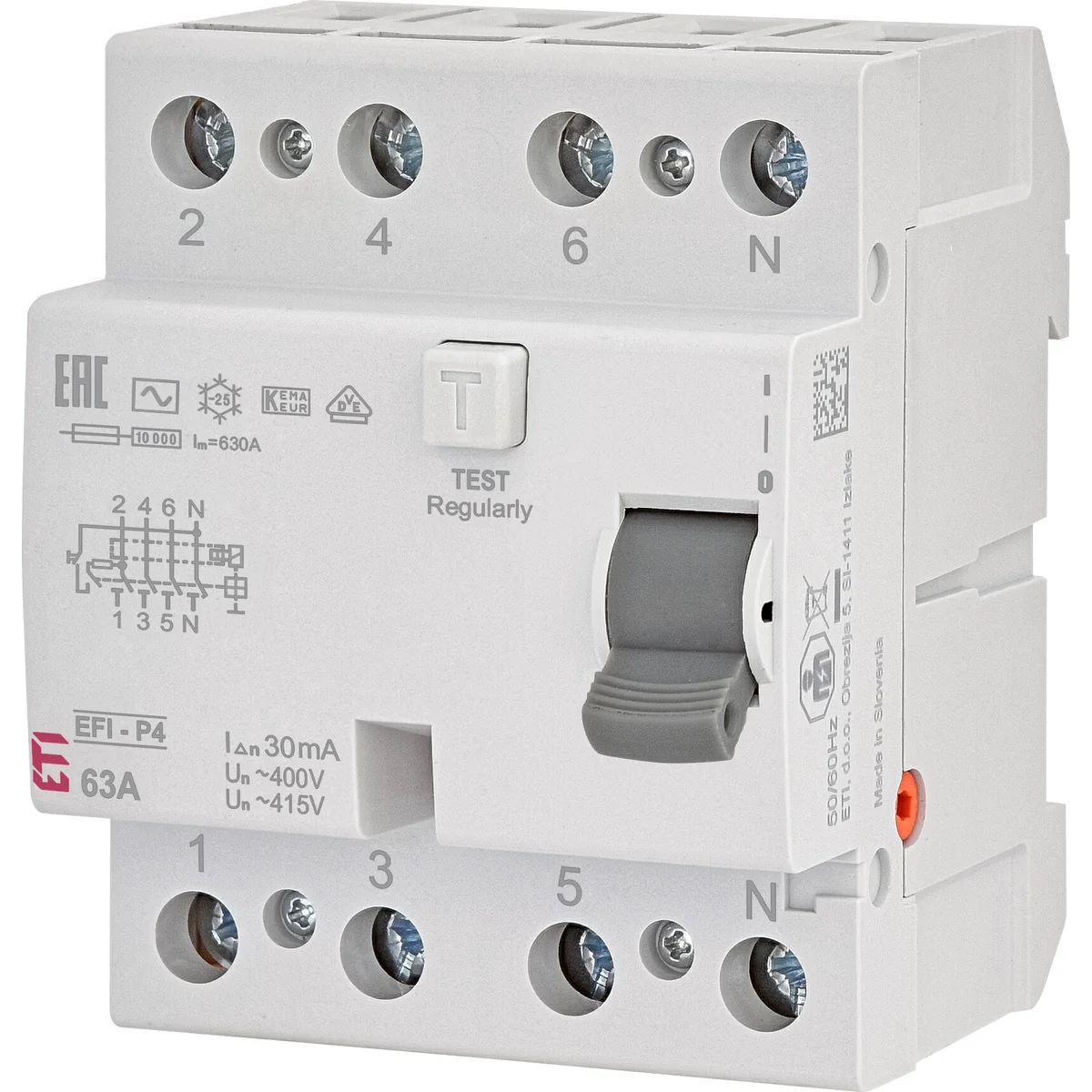

Click on the photo to enlarge

Manufacturer: ETI POLAM

Rated frequency [Hz]: 50/60

Installation: On the TH-35 rail

Rated voltage [V]: 415

See full description

Price:

59,56 €

gross / pcs.

(including VAT 23%)

Accessible 5 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Residual current circuit breaker:

Number of poles 3+N
Clamp capacity: 1-25 mm2
Rated operating current: 0.03IDn (mA)
Impact current: 0.4kA
Short circuit strength: 10 (Icw).

Technical data

Rated frequency [Hz]

50/60
Rated voltage [V]

415
Level of security

IP20

Installation

On the TH-35 rail
Rated current [A]

63
PKWIU

27.12.22.0

Other technical data

Number of poles

4
Leakage current type

AC
Frequency

50/60 Hz
Width in number of modular spacings

4

Rated current

63 A
Short-circuit breaking capacity (Icw)

10 kA
Degree of protection (IP)

IP20
Built-in depth

68 mm

Bulk packaging

A kind of package	Pudełko	Pudełko
Quantity	1 pcs.	27 pcs.
Weight (kg)	0,320	10,205
Volume (m3)	0,001	0,017
Width (m)	0,075	0,233
Length (m)	0,078	0,253
Depth (m)	0,092	0,287
