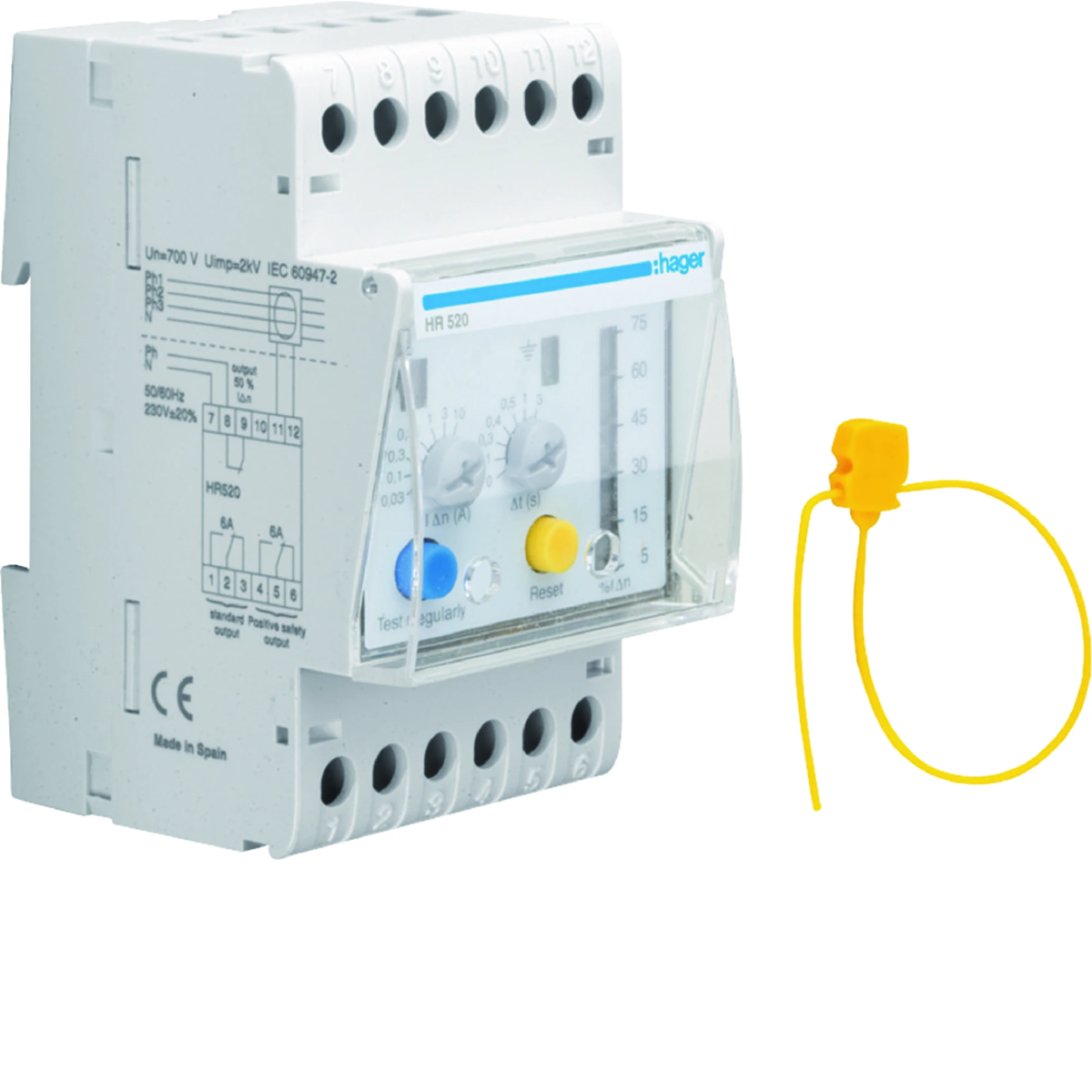

Earth leakage relay 0.03-10A, adjustable delay, 50% LED HR520

local index:
ARP027HAGE
Catalog No:
HR520
EAN code:
3250613281328
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Tightening torque [Nm]: 1.7
Differential current [mA]: 30 | 100 | 300 | 500 | 1000 | 3000 | 10000
Price:
294,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Earth leakage relays:
• supply voltage 230 V~ (±20%), 50/60 Hz
• Test and Reset
buttons • cage clamps
- wire 1.5-4 mm²
- cord 1-2.5 mm²
• standards: IEC 60755,
EN 60947-2 annex B, IEC 61008-1

Technical data

  • Rated frequency [Hz]
    50/60
  • Differential current [mA]
    30 100 300 500 1000 3000 10000
  • Working temperature [°C]
    -10 to 55
  • Number of modules
    3
  • PKWIU
    27.12.24.0
  • Tightening torque [Nm]
    1.7
  • power loss [W]
    4.1
  • Tripping type of the residual current device
    AND
  • AC rated voltage [V]
    230

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Max. power on-delay time
    3000 ms
  • Max. rated operation voltage Ue
    230 V
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Rated fault current
    0.03 ... 10 A
  • Delay adjustable
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,300 0,303 14,464 370,136
Width (m) 0,073 0,080 0,323 0,800
Length (m) 0,080 0,061 0,259 1,186
Depth (m) 0,094 0,095 0,369 1,200
