System D fuse-links are designed to be replaced by laymen (mainly for household and similar applications). They are used to protect power installations against the effects of short circuits and overloads and to protect against electric shock. System D includes the entire range of five physical sizes DI, DII, DIII, DIV, DV of fuse links, ceramic and plastic sockets, and necessary accessories - heads, calibrated links, etc. D fuse links are made for Voltage [V]: voltages AC 500, 690, 750V and 1200V and DC 250V, 440V, 600V and have a rated breaking capacity of 50kA at AC current and 8kA at DC current. These fuse links have a colored operating indicator visible when the links are mounted in the fuse head and fuse base.

Advantages:
→ high Rated short-circuit capacity [kA]:,
→ slow (gL-gG) and fast (gF) characteristics,
→ wide range of rated currents from 2 to 200 A,
→ new rated currents 32A and 40A,
→ various types of incoming and outgoing terminals in sockets,
→ sockets with a TH rail holder.

Characteristic

gG
Rated current [A]

125
Compliance with standards

PN-IEC 269-1, EN 60269, PN-87/E-93100

Rated voltage [V]

500
Type

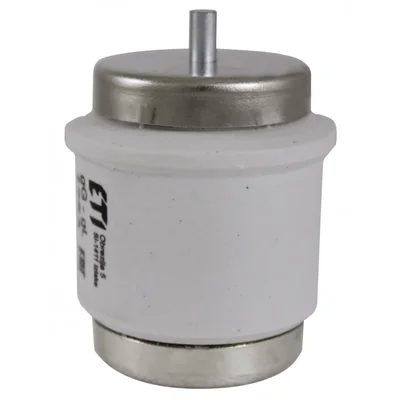

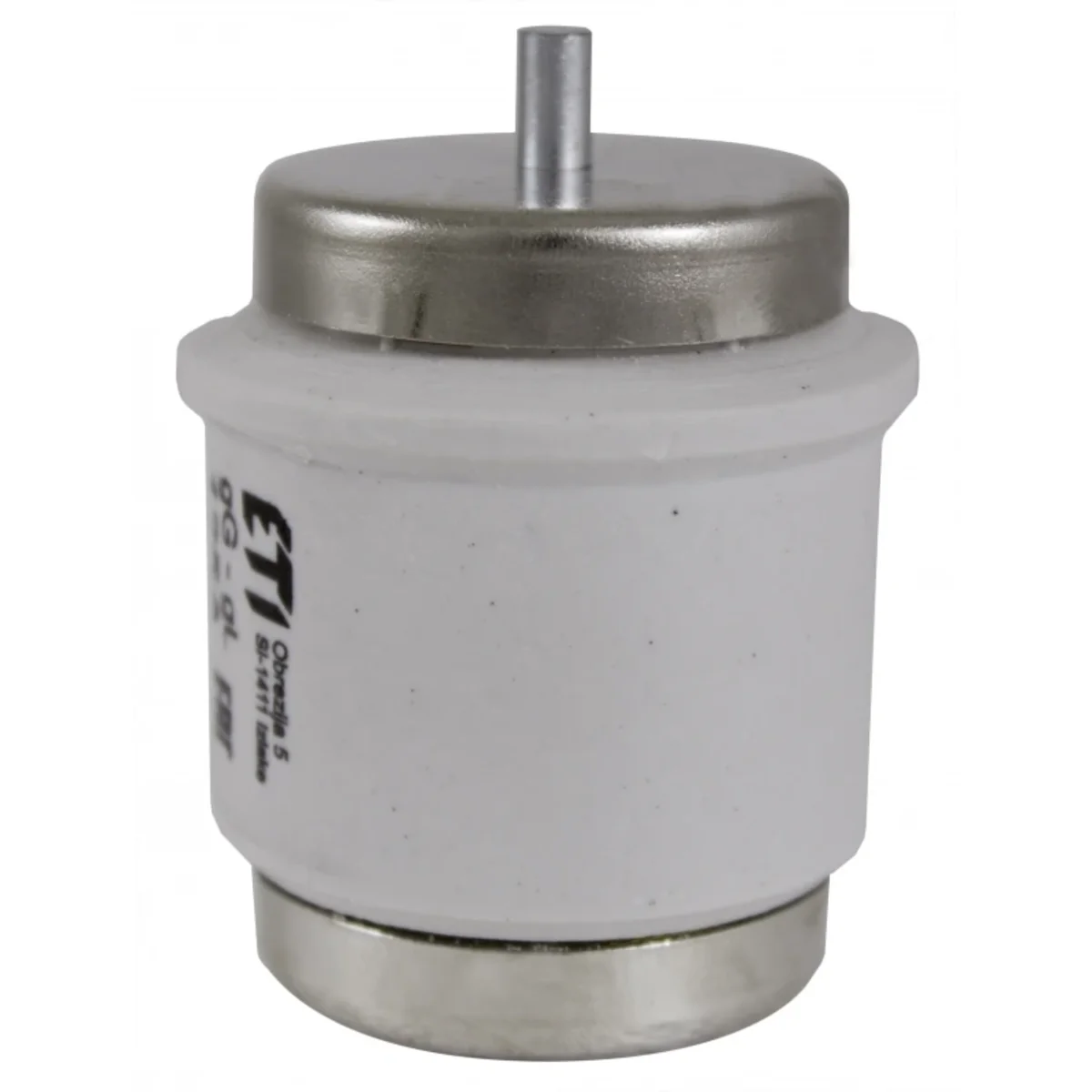

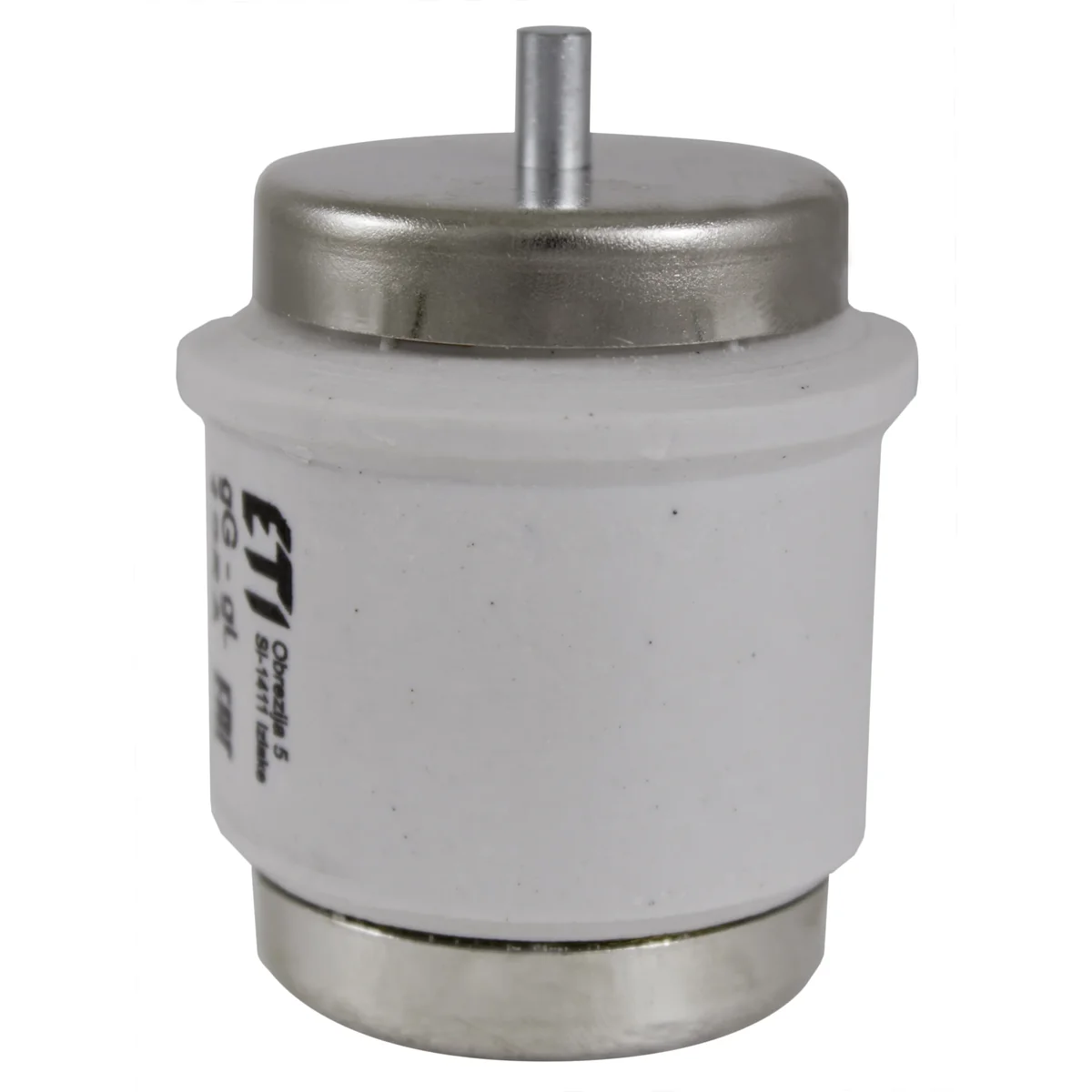

DV/gG 125A 500
PKWIU

27.12.21.0

Other technical data

Construction size

DV
Rated voltage

500 V
Utilization category

gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Rated current

125 A
Colour code

Yellow
Release characteristic

Time-lag (T)

A kind of package	Pudełko	Pudełko
Quantity	10 pcs.	60 pcs.
Weight (kg)	2,270	-
Volume (m3)	0,002	-
Width (m)	0,108	-
Length (m)	0,225	-
Depth (m)	0,070	-
