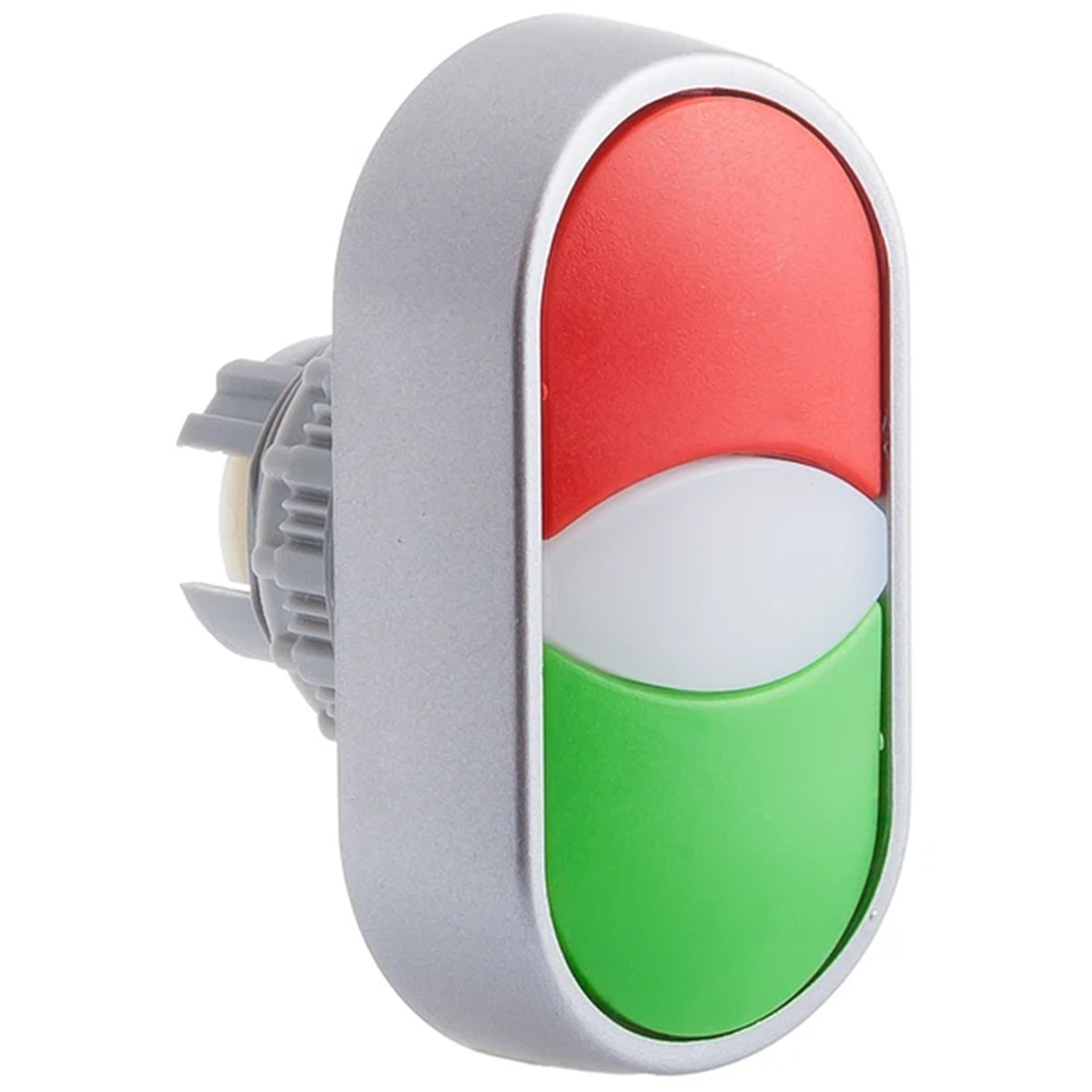

Drive with a double-key self-return button SP22-2KL-Z/C\.

local index:
AKS219SPAM
Catalog No:
SP22-2KL-Z/C\.
EAN code:
5907723068421
Manufacturer: SPAMEL
Face ring color: Gray
Button color: Red/Green
Face ring material: Plastic
Price:
8,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SP22 control buttons are used to connect or disconnect currents up to 2.5 A, light and sound signaling in machine panels and control cabinets. Control buttons and signal lamps SP22 have a modular structure. Control buttons or signal lamps SP22 are delivered as complete products or in the form of segments constituting functional elements of a button or lamp. The modular structure of the SP22 buttons and lamps facilitates the creation of the necessary functional variants of the buttons, as well as the introduction of changes to the existing control circuits. The SP22 control buttons are designed to be built into standardized holes with a diameter of 22.3 mm, made in control and signaling desks (boards) or directly in the bodies of machines and devices. The above-desktop part of the buttons is made in black or covered with satin nickel.

Technical data

  • Face ring color
    Gray
  • Face ring material
    Plastic
  • The degree of protection of the device
    65
  • Number of control positions
    4
  • Button color
    Red/Green
  • Type of electrical connection
    Screw connection
  • Hole diameter [mm]
    22

Other technical data

  • Colour button
    Red/green
  • Construction type lens
    Oval
  • Width opening
    22 mm
  • Type of button
    Flat
  • With protective cover
    No
  • Switching function latching
    No
  • With front ring
    Yes
  • Colour front ring
    Chrome
  • Number of command positions
    1
  • Hole diameter
    22 mm
  • Height opening
    6 mm
  • Suitable for illumination
    No
  • Labelled
    No
  • Spring-return
    Yes
  • Material front ring
    Plastic
  • Degree of protection (IP), front side
    IP65
