Double-throw twist switch black 1 NO contact 1 NC contact ST22-P.CZ-11\.

local index:
AKS965SPAM
Catalog No:
ST22-P.CZ-11\.
EAN code:
5907723035409
Manufacturer: SPAMEL
Rated insulation voltage [V]: 500
Continuous current [A]: 10
Price:
14,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

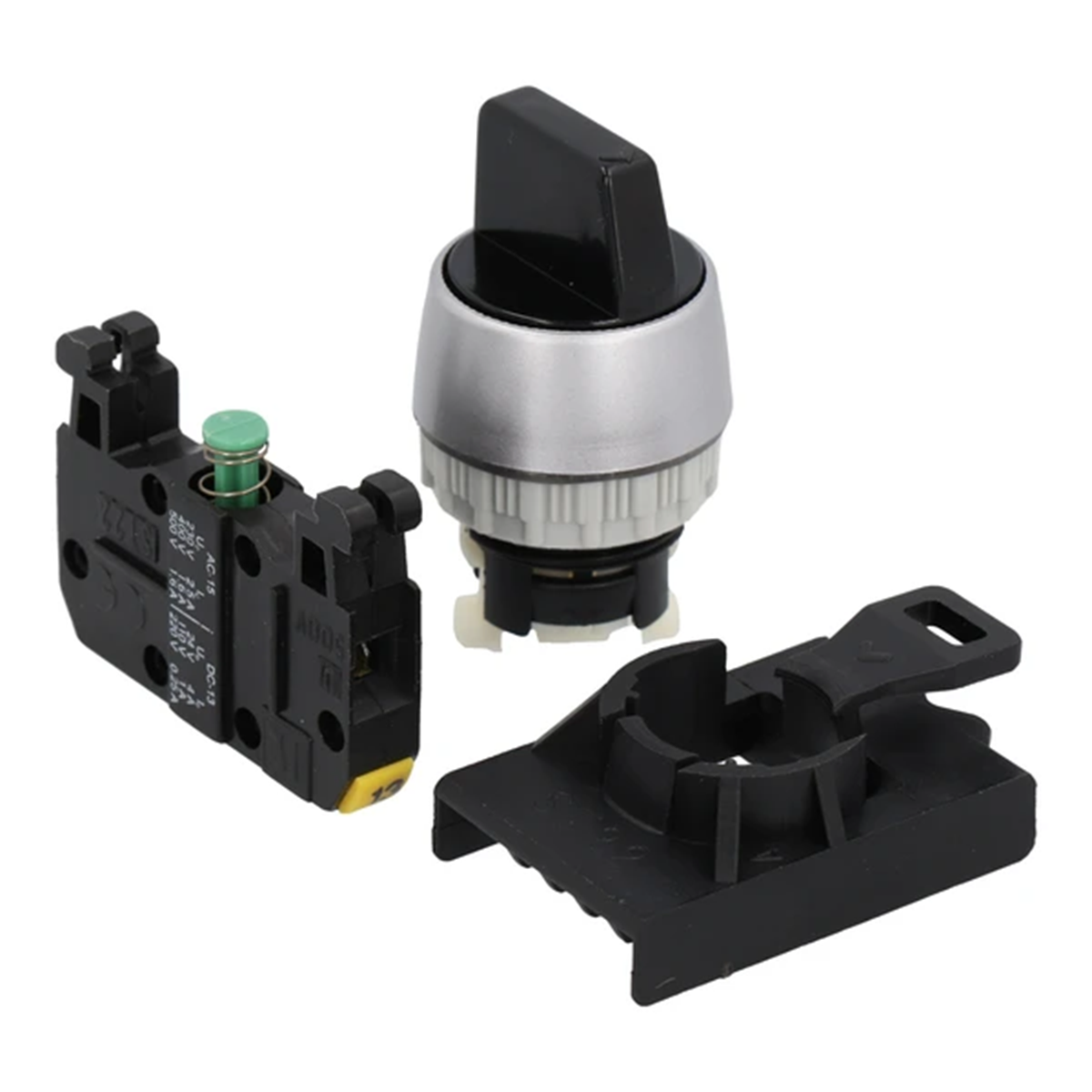

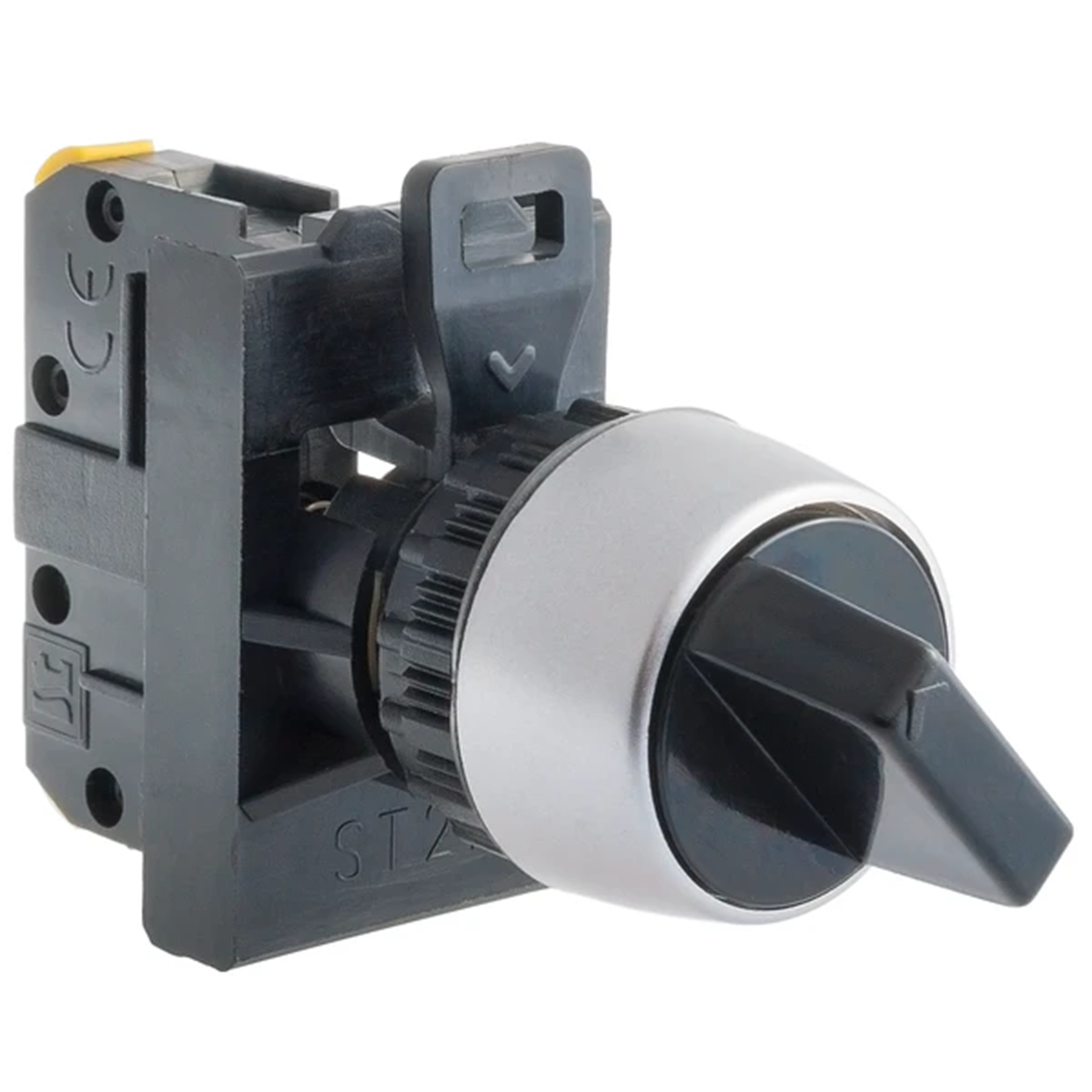

Double-throw twist switch black 1 NO contact 1 NC contact

Technical data

  • Rated insulation voltage [V]
    500
  • Continuous current [A]
    10

Other technical data

  • Number of switch positions
    2
  • Suitable for illumination
    No
  • Colour button
    Black
  • Width opening
    22 mm
  • Spring-return
    No
  • Supply voltage
    24 ... 230 V
  • Number of contacts as normally closed contact
    1
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Type of control element
    Toggle
  • With light source
    No
  • Hole diameter
    22 mm
  • Switching function latching
    Yes
  • Degree of protection (IP)
    IP65
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • With front ring
    Yes
  • Colour front ring
    Grey
