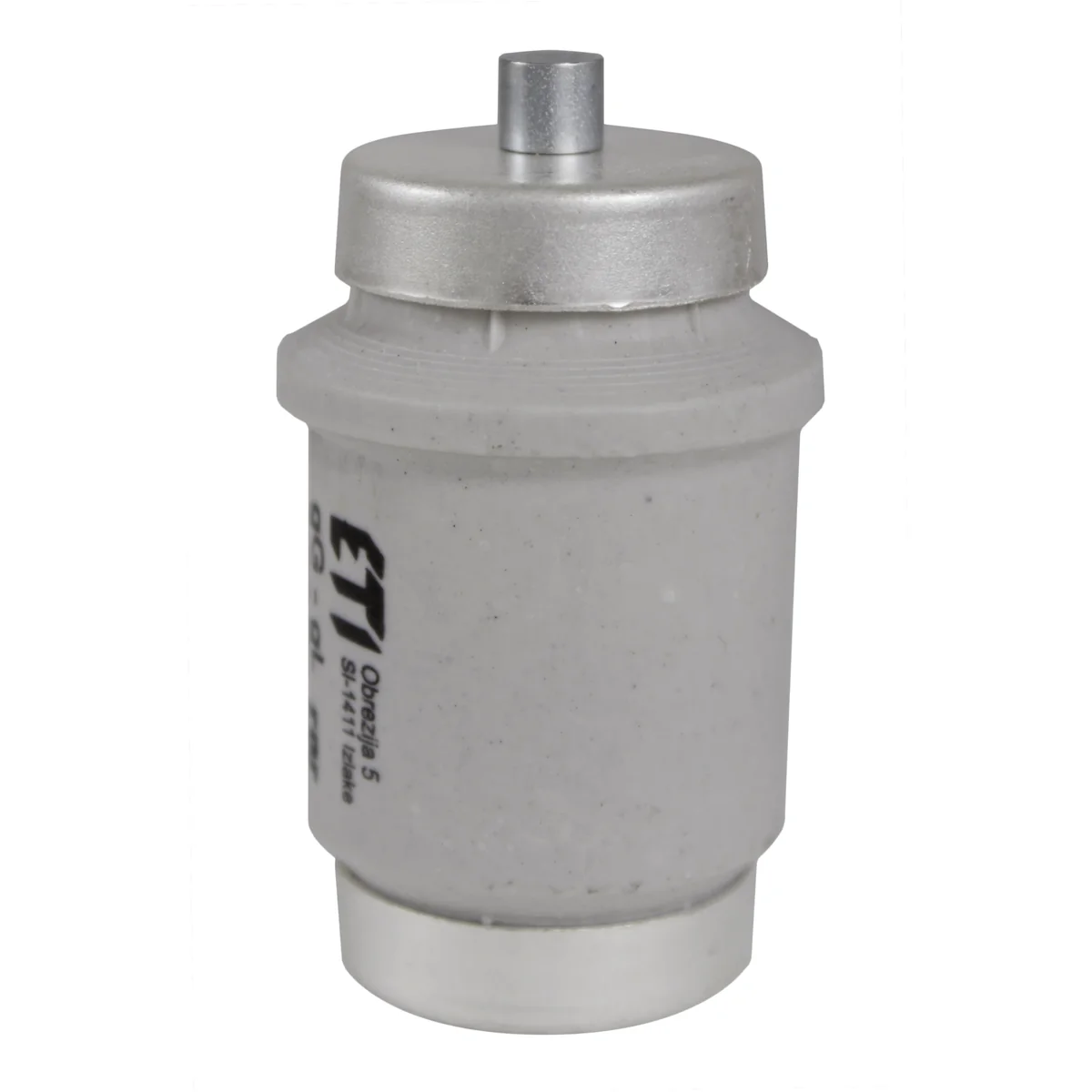

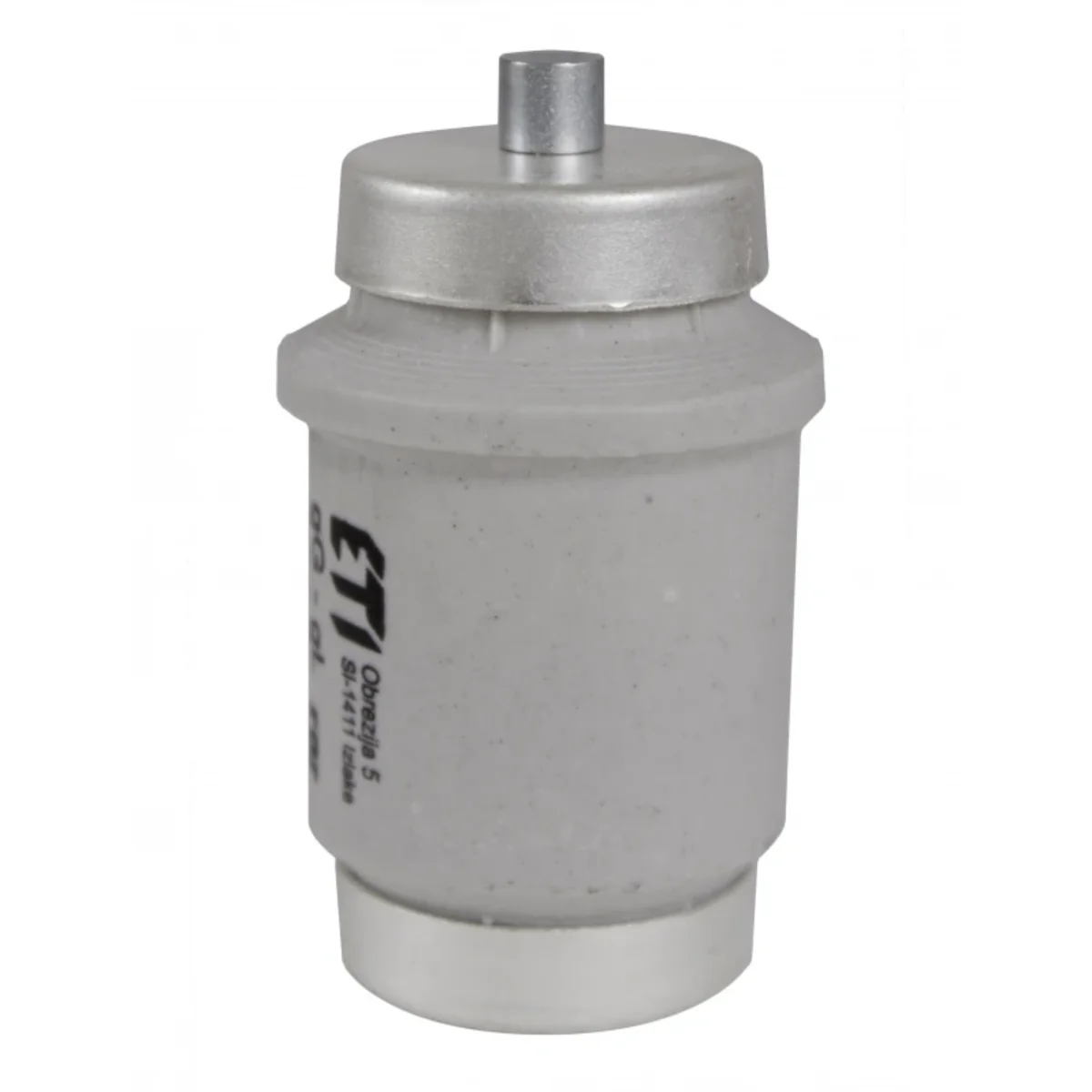

DIV/gF 80A 500 quick fuse link 002314101

local index:
ABI018ETIP
Catalog No:
002314101
EAN code:
5904722905405
Manufacturer: ETI POLAM
Characteristic: gF
Rated voltage [V]: 500
Rated current [A]: 80
Price:
9,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - System D fuse-links are designed to be replaced by unskilled persons (mainly for household and similar applications).  They are used to protect power installations against the effects of short circuits and overloads and to protect against electric shock. System D includes the entire range of five physical sizes DI, DII, DIII, DIV, DV of fuse links, ceramic and plastic sockets, and necessary accessories - heads, calibrated links, etc. D fuse links are made for Voltage [V]: voltages AC 500, 690, 750V and 1200V and DC 250V, 440V, 600V and have a rated breaking capacity of 50kA at AC current and 8kA at DC current. These fuse links have a colored operating indicator visible when the links are mounted in the fuse head and fuse base.

Advantages:
→ high Rated short-circuit capacity [kA]:,
→ slow (gL-gG) and fast (gF) characteristics,
→ wide range of rated currents from 2 to 200 A,
→ new rated currents 32A and 40A,
→ various types of incoming and outgoing terminals in sockets,
→ sockets with a TH rail holder.

Technical data

  • Characteristic
    gF
  • Rated current [A]
    80
  • Type
    DIV/gF 80A 500
  • PKWIU
    27.12.21.0
  • Rated voltage [V]
    500
  • Size
    DIV
  • Compliance with standards
    PN-IEC 269-1, EN 60269, PN-87/E-93100

Other technical data

  • Construction size
    DIV
  • Rated voltage
    500 V
  • Utilization category
    Other
  • Rated current
    80 A
  • Colour code
    Silver
  • Release characteristic
    Fast (F)

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 3 pcs. 48 pcs.
Weight (kg) 0,350 -
Volume (m3) 0,000 -
Width (m) 0,038 -
Length (m) 0,113 -
Depth (m) 0,066 -
