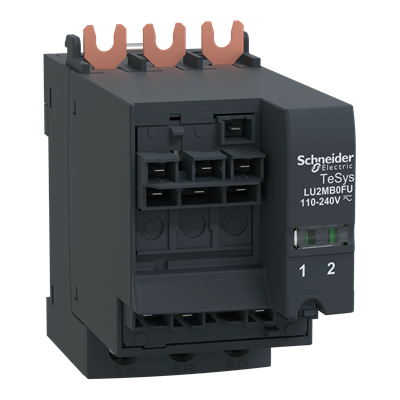

Direct mounting reversing block TeSys U 32A 110/240VAC/DC LU2MB0FU

local index:
ASA021SCHN
Catalog No:
LU2MB0FU
EAN code:
3389110363807
Manufacturer: SCHNEIDER ELECTRIC
Level of security: IP20
Price:
524,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Direct mounting reversing block TeSys U 32A 110/240VAC/DC

Technical data

  • Level of security
    IP20
  • PKWIU
    27.12.23.0

Other technical data

  • Function
    Reversing contactor
  • Rated control supply voltage AC 60 Hz
    110 ... 240 V
  • Voltage type for actuating
    AC/DC
  • Rated operation power at AC-3, 400 V
    18.5 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    Other
  • Rated control supply voltage AC 50 Hz
    110 ... 240 V
  • Rated control supply voltage DC
    110 ... 240 V
  • Rated operation current Ie at AC-3, 400 V
    38 A
  • Rated operation power NEMA
    14.9 kW
  • Degree of protection (IP)
    IP20
