DIII gF 50A 500 (BiWts) fuse-link - fast 002313102

Name: DIII gF 50A 500 (BiWts) fuse-link - fast
Brand: ETI POLAM
SKU: ABI014ETIP
Price: 1.66 PLN
Availability: InStock

local index:

ABI014ETIP

Catalog No:

002313102

EAN code:

5904722905146

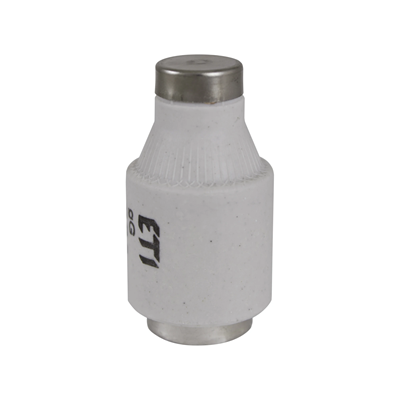

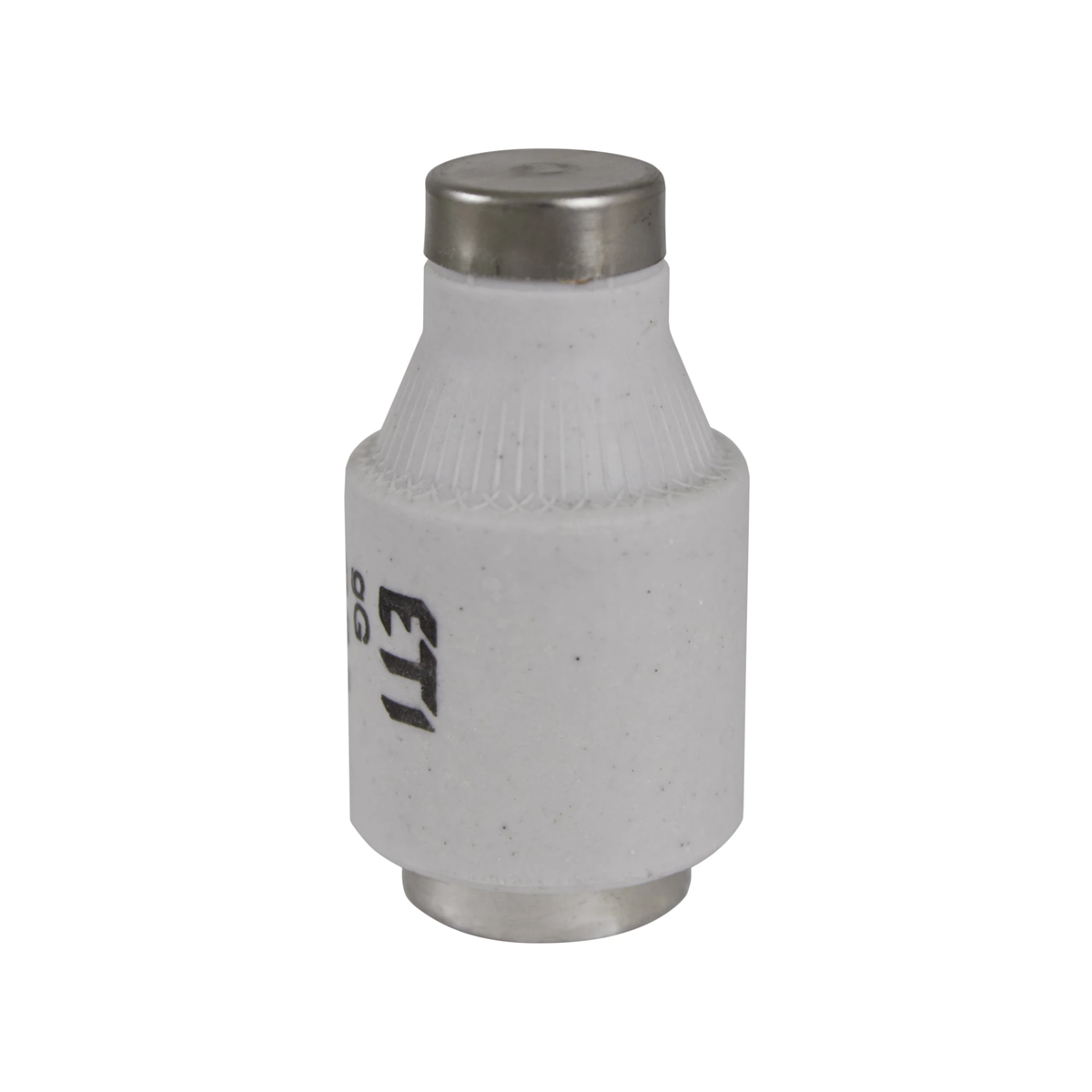

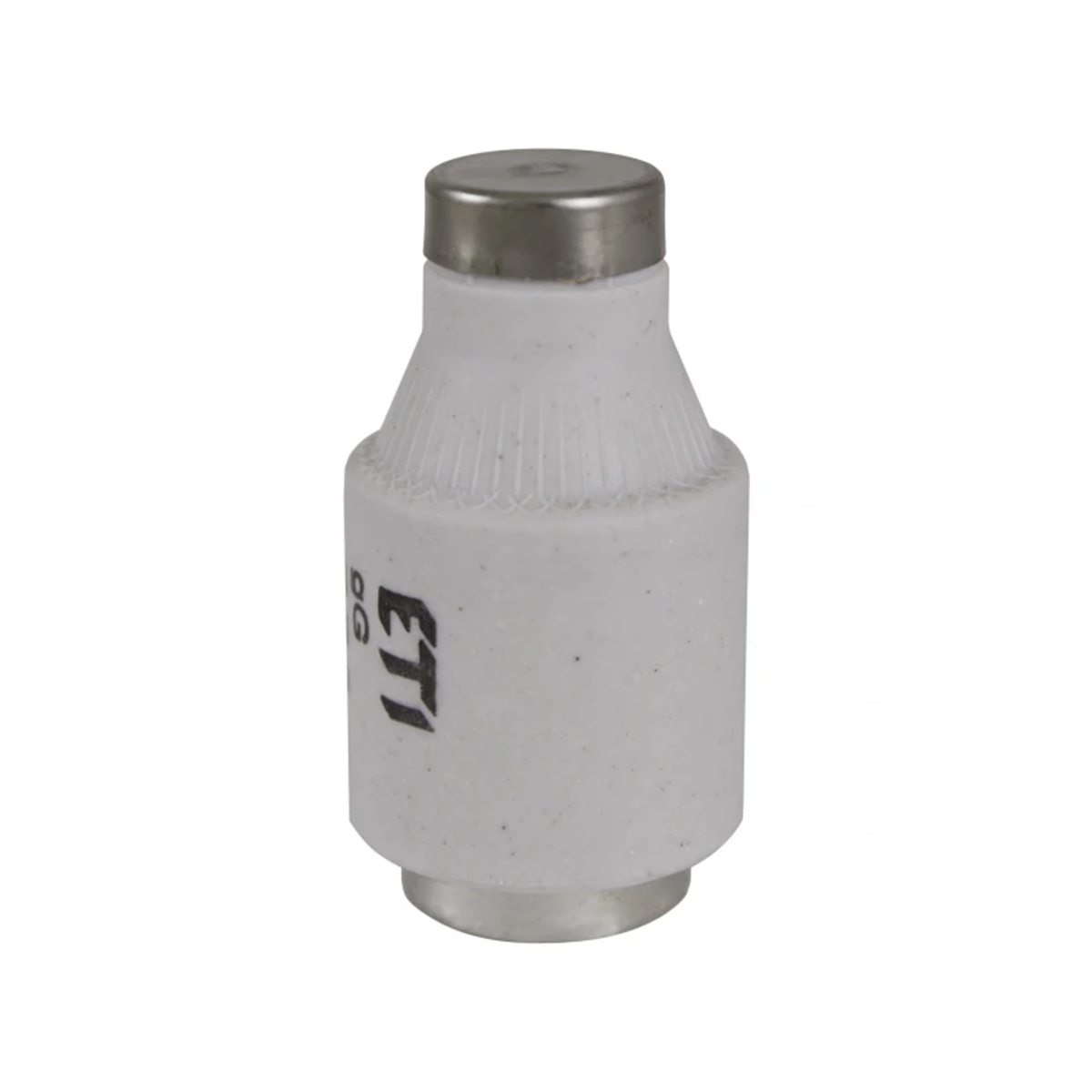

DIII gF 50A 500 (BiWts) fuse-link - fast

Click on the photo to enlarge

Manufacturer: ETI POLAM

Characteristic: gF

Model: DIII gF 50A 500 (BiWts)

Rated voltage [V]: 500

See full description

Price:

1,66 €

gross / pcs.

(including VAT 23%)

Accessible 114 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

This type of fuse-links is designed to protect power installations against the effects of short-circuits and overloads, and to protect against electric shock. They have a colored actuation indicator visible when the fuse links are mounted in the fuse head and in the fuse base. Insulation class C-VDE 0110.

Technical data

Characteristic

gF
Rated voltage [V]

500
Size

DIII
Type

Porcelain fuse link
PKWIU

27.12.21.0

Model

DIII gF 50A 500 (BiWts)
Rated current [A]

50
Handle

E33
Application

Securing electrical devices and installations

Other technical data

Construction size

DIII
Rated voltage

500 V
Utilization category

Other

Rated current

50 A
Colour code

White
Release characteristic

Fast (F)

Bulk packaging

A kind of package	Pudełko	Pudełko
Quantity	5 pcs.	250 pcs.
Weight (kg)	0,270	-
Volume (m3)	0,000	-
Width (m)	0,030	-
Length (m)	0,155	-
Depth (m)	0,050	-
