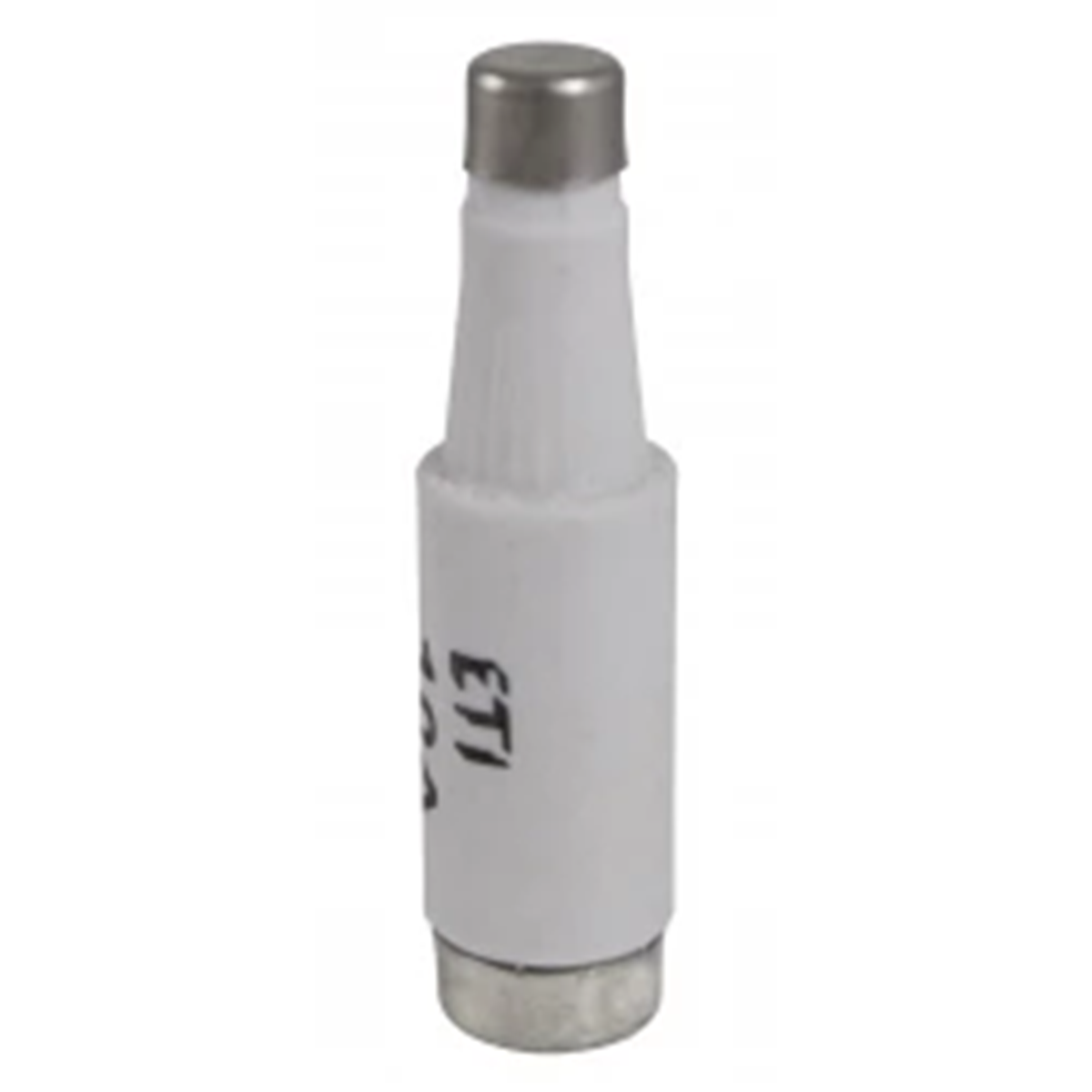

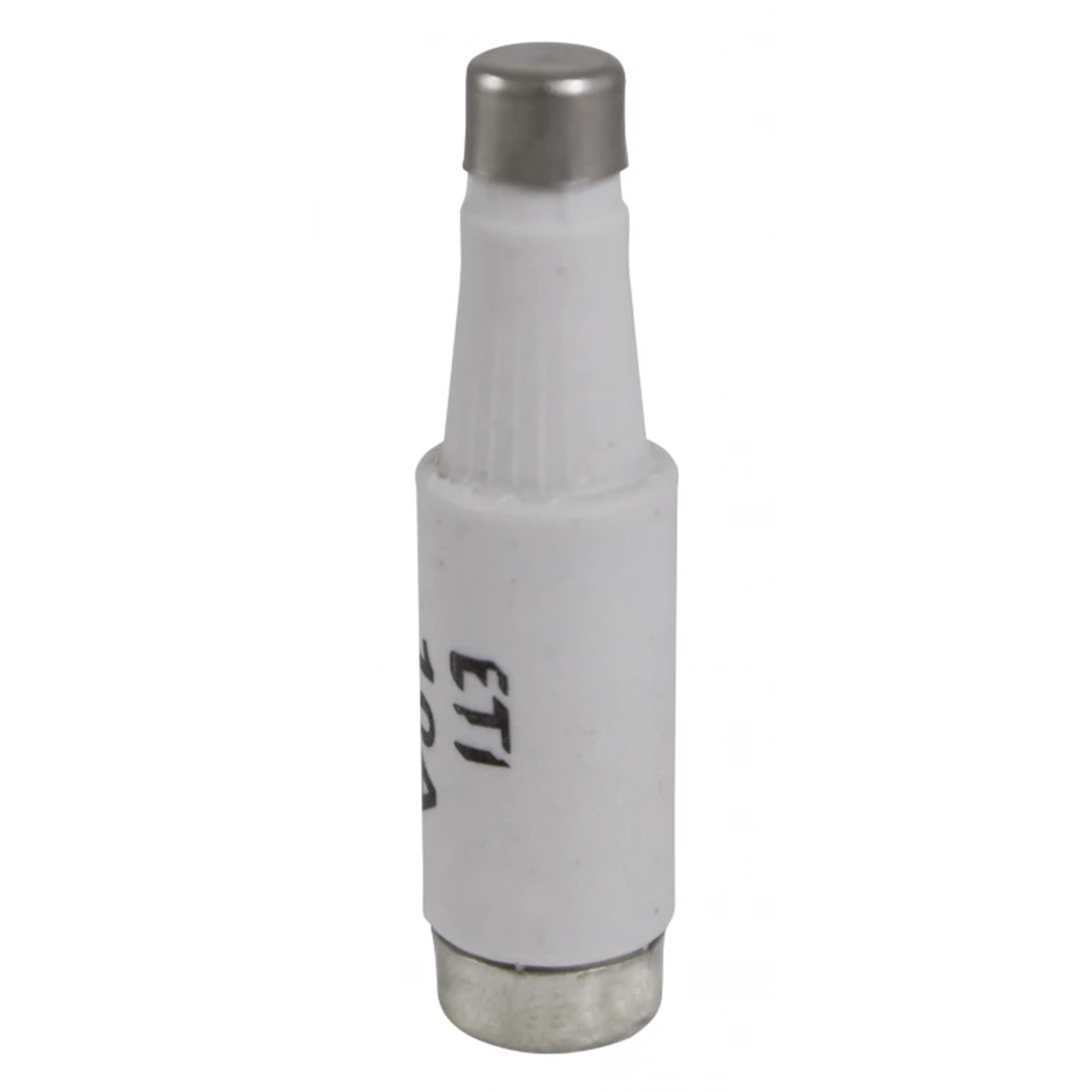

DI/gG 6A 500 slow-blow fuse link 002311403

local index:
ABI070ETIP
Catalog No:
002311403
EAN code:
5904722904743
Manufacturer: ETI POLAM
Characteristic: gG
Rated voltage [V]: 500
Rated current [A]: 6
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
1,00 €
gross / pcs.
(including VAT 23%)
Last lowest price: 1,00 € gross
Base price: 3,52 € gross -72%
Delivery in 3h
Accessible 6 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

System D fuse-links are designed to be replaced by laymen (mainly for household and similar applications).  They are used to protect power installations against the effects of short circuits and overloads and to protect against electric shock. System D includes the entire range of five physical sizes DI, DII, DIII, DIV, DV of fuse links, ceramic and plastic sockets, and necessary accessories - heads, calibrated links, etc. D fuse links are made for Voltage [V]: voltages AC 500, 690, 750V and 1200V and DC 250V, 440V, 600V and have a rated breaking capacity of 50kA at AC current and 8kA at DC current. These fuse links have a colored operating indicator visible when the links are mounted in the fuse head and fuse base.

Advantages:
→ high Rated short-circuit capacity [kA]:,
→ slow (gL-gG) and fast (gF) characteristics,
→ wide range of rated currents from 2 to 200 A,
→ new rated currents 32A and 40A,
→ various types of incoming and outgoing terminals in sockets,
→ sockets with a TH rail holder.

Technical data

  • Characteristic
    gG
  • Rated current [A]
    6
  • Type
    DI/gG 6A 500
  • PKWIU
    27.12.21.0
  • Rated voltage [V]
    500
  • Size
    DI
  • Compliance with standards
    PN-IEC 269-1, EN 60269, PN-87/E-93100

Other technical data

  • Construction size
    DI
  • Rated voltage
    500 V
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Rated current
    6 A
  • Colour code
    Green
  • Release characteristic
    Time-lag (T)

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 10 pcs. 500 pcs.
Weight (kg) 0,120 -
Volume (m3) 0,000 -
Width (m) 0,030 -
Length (m) 0,068 -
Depth (m) 0,050 -
