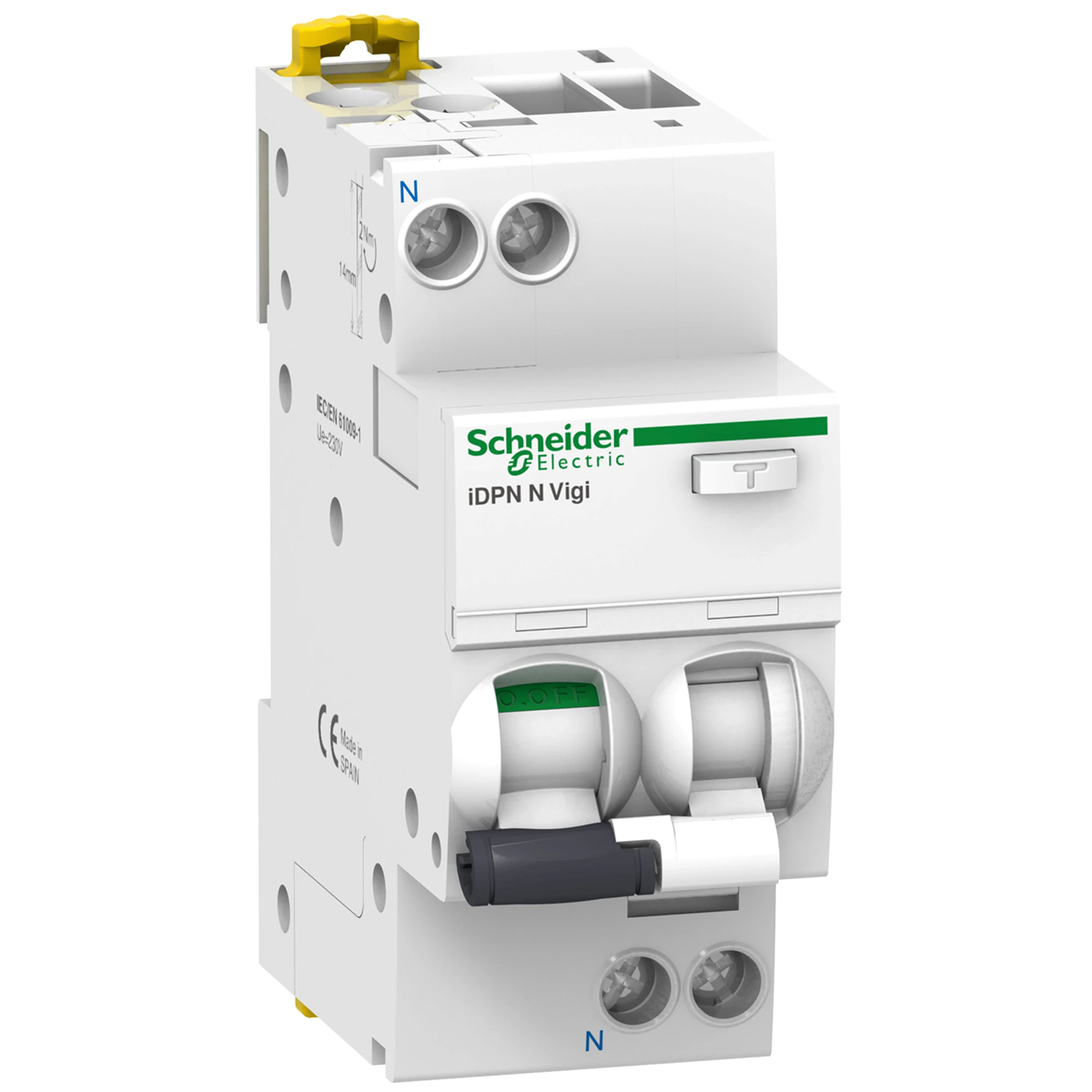

Differential circuit breaker 1P+N, 16A, 30mA, DPN N VIGI A9D56616

local index:
ARB008SCHN
Catalog No:
A9D56616
EAN code:
3606480472718
Manufacturer: SCHNEIDER ELECTRIC
Number of poles: 1
Differential current [mA]: thirty
Rated current [A]: 16
Price:
72,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Miniature circuit breaker with residual current device iDPN N Vigi.

Technical data

  • Number of poles
    1
  • Rated current [A]
    16
  • PKWIU
    27.12.23.0
  • Differential current [mA]
    thirty
  • Trigger type
    AND

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 60 °C
  • Built-in depth
    44 mm
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 10 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    400 V
  • Rated current
    16 A
  • Leakage current type
    A
  • Rated short-circuit breaking capacity according to EN 61009
    6 kA
  • Disconnection characteristic
    Other
  • Voltage type
    AC
  • Release characteristic
    B
  • With interlocking device
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    2
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 16 mm²
