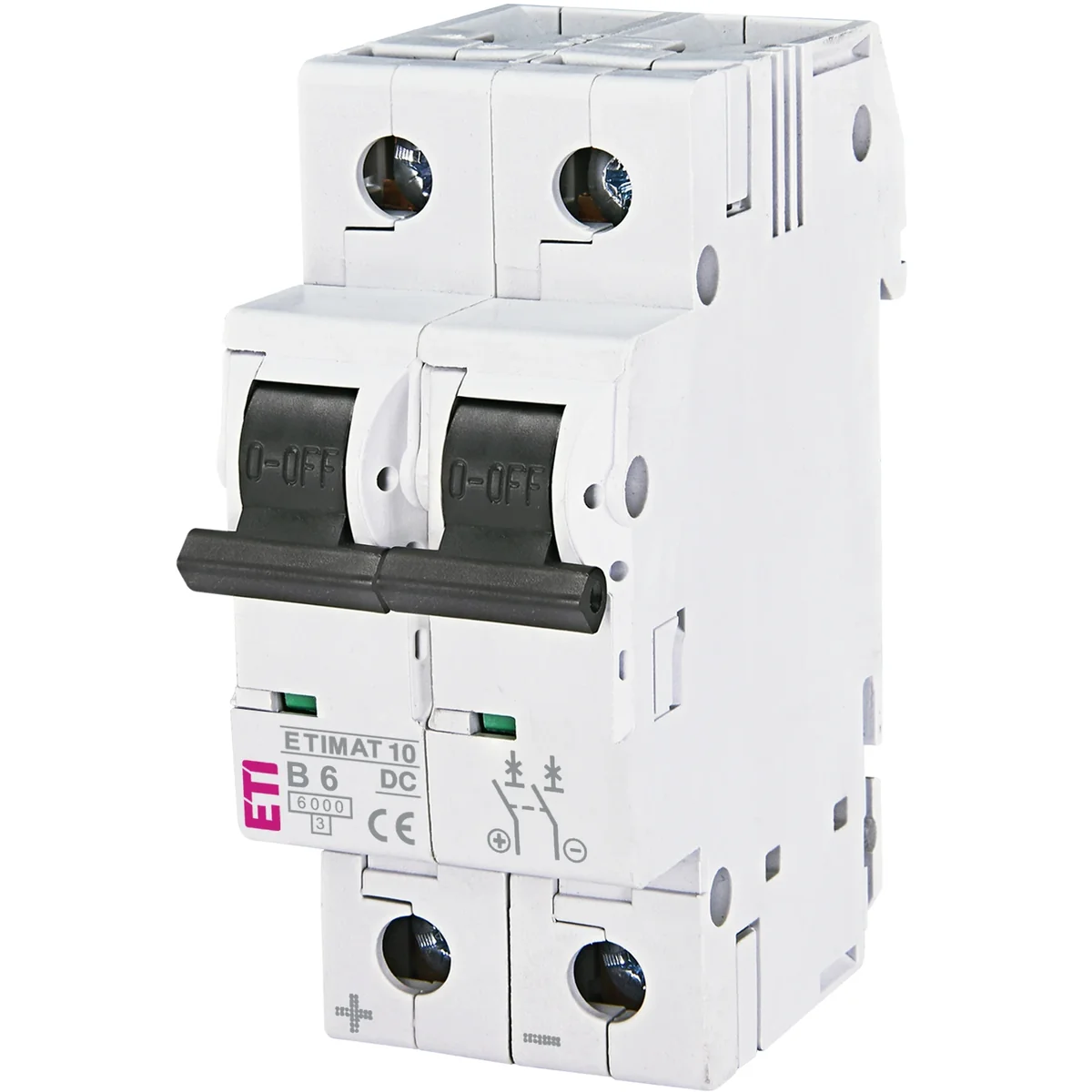

DC circuit breaker ETIMAT10 2P 6kA B 6A DC 002128712

local index:
ABB209ETIP
Catalog No:
002128712
EAN code:
3838895307433
Manufacturer: ETI POLAM
Characteristic: b
Number of poles: 2
Rated voltage [V]: 230
Price:
47,61 €
gross / pcs.
(including VAT 23%)
209,74 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

ETIMAT 10 DC overcurrent circuit breakers are used to protect DC installations. For voltages up to 220 V, a 1-pole switch is used, for higher voltages (up to 440 V) - a 2-pole switch, but with series-connected poles. When connecting ETIMAT 10 DC circuit breakers, pay attention to their polarity. Note: Two 1-pole circuit breakers cannot be used instead of a 2-pole DC circuit breaker.

Technical data

  • Characteristic
    b
  • Rated voltage [V]
    230
  • Rated current [A]
    6
  • Mechanical durability
    20 thousand shifts
  • Rated short-circuit capacity [kA]
    6
  • PKWIU
    27.12.22.0
  • Number of poles
    2
  • Case
    Non-flammable, temperature-resistant material Gray color RAL 7035
  • Working temperature [°C]
    from -25 to +50
  • Weight [g]
    227
  • Insulation voltage [V]
    500

Other technical data

  • Built-in depth
    68 mm
  • Number of poles (total)
    2
  • Rated current
    6 A
  • Voltage type
    DC
  • Current limiting class
    3
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 55 °C
  • Release characteristic
    B
  • Number of protected poles
    2
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 1 pcs. 54 pcs.
Weight (kg) 0,260 -
Volume (m3) 0,000 -
Width (m) 0,038 -
Length (m) 0,078 -
Depth (m) 0,092 -
