DC circuit breaker ETIMAT10 2P 6kA B 63A DC 002128722

Name: DC circuit breaker ETIMAT10 2P 6kA B 63A DC
Brand: ETI POLAM
SKU: ABB053ETIP
Price: 83.20 PLN

local index:

ABB053ETIP

Catalog No:

002128722

EAN code:

3838895421689

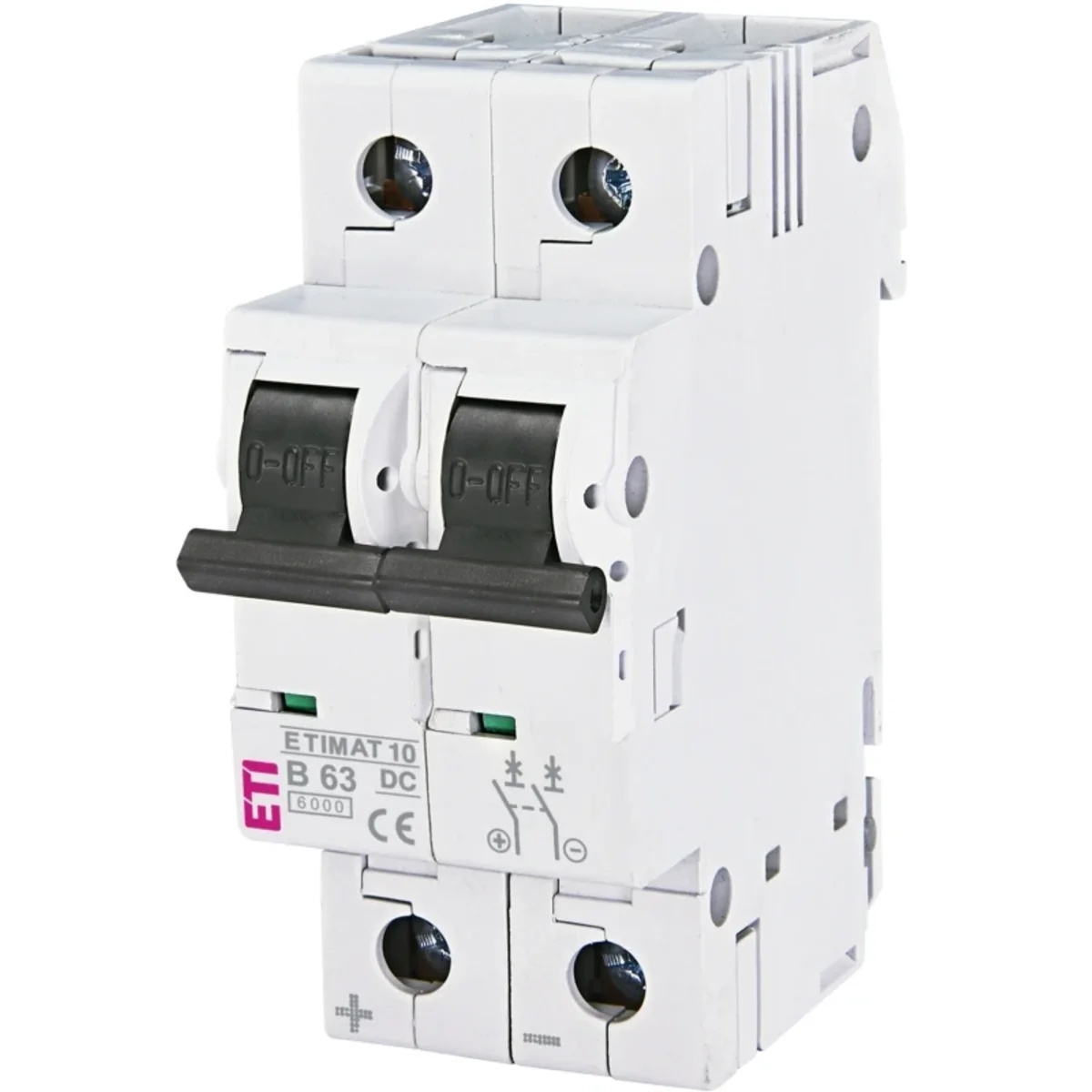

DC circuit breaker ETIMAT10 2P 6kA B 63A DC

Click on the photo to enlarge

Manufacturer: ETI POLAM

Number of poles: 2

Rated voltage [V]: 230

Rated current [A]: 63

See full description

Price:

83,20 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

ETIMAT 10 DC overcurrent circuit breakers are used to protect DC installations. For voltages up to 220 V, a 1-pole switch is used, for higher voltages (up to 440 V) - a 2-pole switch, but with series-connected poles. When connecting ETIMAT 10 DC circuit breakers, pay attention to their polarity. Note: Two 1-pole circuit breakers cannot be used instead of a 2-pole DC circuit breaker.

Technical data

Number of poles

2
Rated current [A]

63
Short-circuit breaking capacity [kA]

6

Rated voltage [V]

230
Working temperature [°C]

from -25 to +50
PKWIU

27.12.22.0

Other technical data

Built-in depth

68 mm
Number of poles (total)

2
Rated current

63 A
Voltage type

DC
Current limiting class

3
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 55 °C

Release characteristic

B
Number of protected poles

2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Additional equipment possible

Yes
Degree of protection (IP)

IP20

Bulk packaging

A kind of package	Pudełko	Pudełko
Quantity	1 pcs.	54 pcs.
Weight (kg)	0,260	-
Volume (m3)	0,000	-
Width (m)	0,038	-
Length (m)	0,078	-
Depth (m)	0,092	-
