DC circuit breaker ETIMAT10 2P 6kA B 16A DC 002128716

Name: DC circuit breaker ETIMAT10 2P 6kA B 16A DC
Brand: ETI POLAM
SKU: ABB007ETIP
Price: 47.15 PLN

local index:

ABB007ETIP

Catalog No:

002128716

EAN code:

3838895307495

DC circuit breaker ETIMAT10 2P 6kA B 16A DC

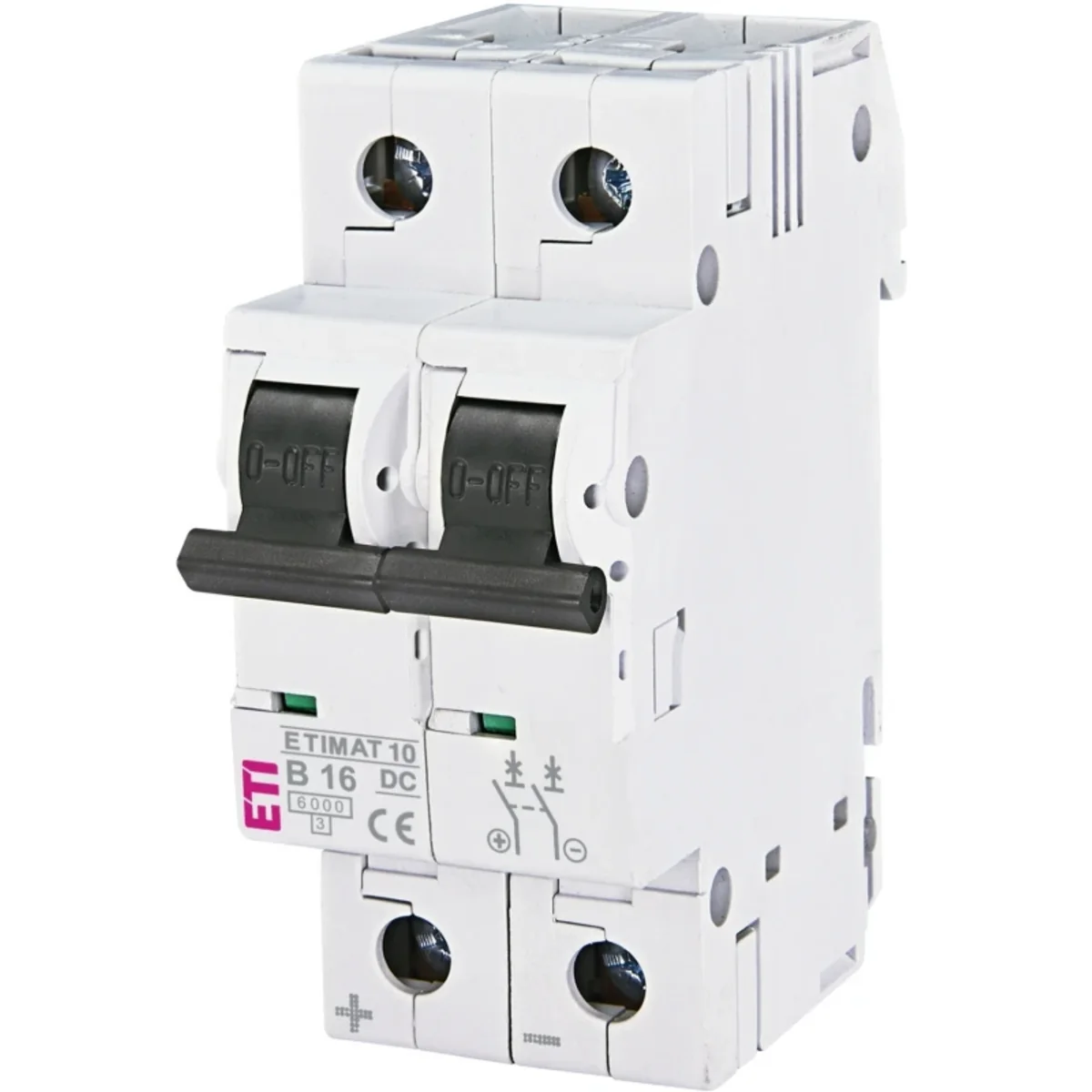

Click on the photo to enlarge

Manufacturer: ETI POLAM

Characteristic: b

Number of poles: 2

Rated voltage [V]: 230

See full description

Price:

47,15 €

gross / pcs.

(including VAT 23%)

207,71 € gross/kg.

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

ETIMAT 10 DC overcurrent circuit breakers are used to protect DC installations. For voltages up to 220 V, a 1-pole switch is used, for higher voltages (up to 440 V) - a 2-pole switch, but with series-connected poles. When connecting ETIMAT 10 DC circuit breakers, pay attention to their polarity. Note: Two 1-pole circuit breakers cannot be used instead of a 2-pole DC circuit breaker.

Technical data

Characteristic

b
Rated voltage [V]

230
Rated current [A]

16
Mechanical durability

20 thousand shifts
Rated short-circuit capacity [kA]

6
PKWIU

27.12.22.0

Number of poles

2
Case

Non-flammable, temperature-resistant material Gray color RAL 7035
Working temperature [°C]

from -25 to +50
Weight [g]

227
Insulation voltage [V]

500

Other technical data

Built-in depth

68 mm
Number of poles (total)

2
Rated current

16 A
Voltage type

DC
Current limiting class

3
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 55 °C

Release characteristic

B
Number of protected poles

2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Additional equipment possible

Yes
Degree of protection (IP)

IP20

Bulk packaging

A kind of package	Pudełko	Pudełko
Quantity	1 pcs.	54 pcs.
Weight (kg)	0,260	-
Volume (m3)	0,000	-
Width (m)	0,038	-
Length (m)	0,078	-
Depth (m)	0,092	-
