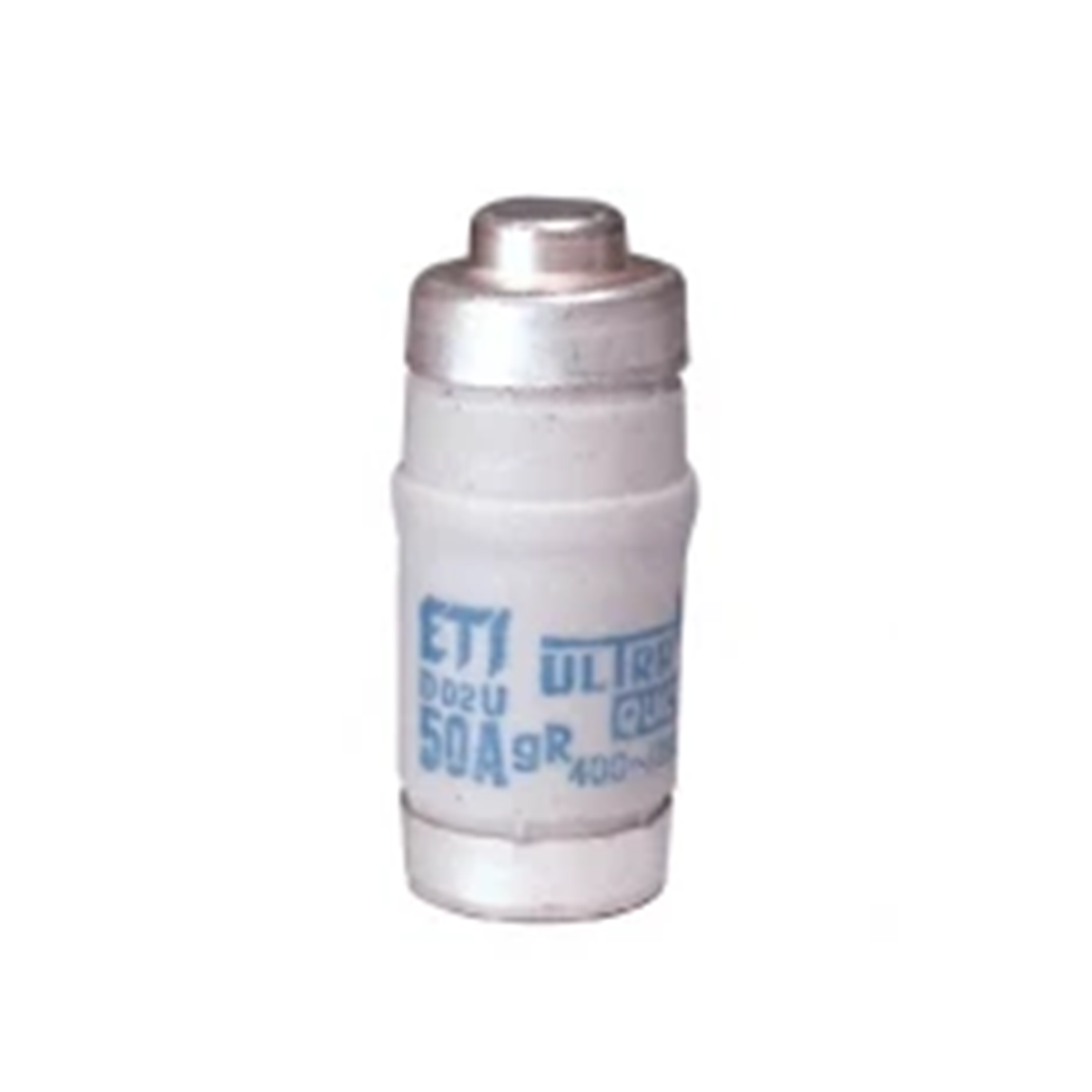

D02UQ35A ultra-fast fuse-link 004312003

local index:
ABM709ETIP
Catalog No:
004312003
EAN code:
5904722914650
Manufacturer: ETI POLAM
Characteristic: gR
Rated voltage [V]: 230
DC rated voltage [V]: 250
Price:
6,05 €
gross / pcs.
(including VAT 23%)
465,38 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

D0 system inserts are used in E14 and E18 fuse bases, as well as in VLD01 and STV D02 fuse switch disconnectors.

Technical data

  • Characteristic
    gR
  • DC rated voltage [V]
    250
  • Weight [g]
    13
  • AC rated voltage [V]
    400
  • Rated voltage [V]
    230
  • Rated current [A]
    35
  • Rated short-circuit capacity [kA]
    10
  • PKWIU
    27.12.21.0

Other technical data

  • Construction size
    D02
  • Rated voltage
    400 V
  • Utilization category
    gR (general purpose semiconductor protection)
  • Rated current
    35 A
  • Colour code
    Black

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 10 pcs. 500 pcs.
Weight (kg) 0,140 -
Volume (m3) 0,000 -
Width (m) 0,040 -
Length (m) 0,080 -
Depth (m) 0,033 -

Files to download
