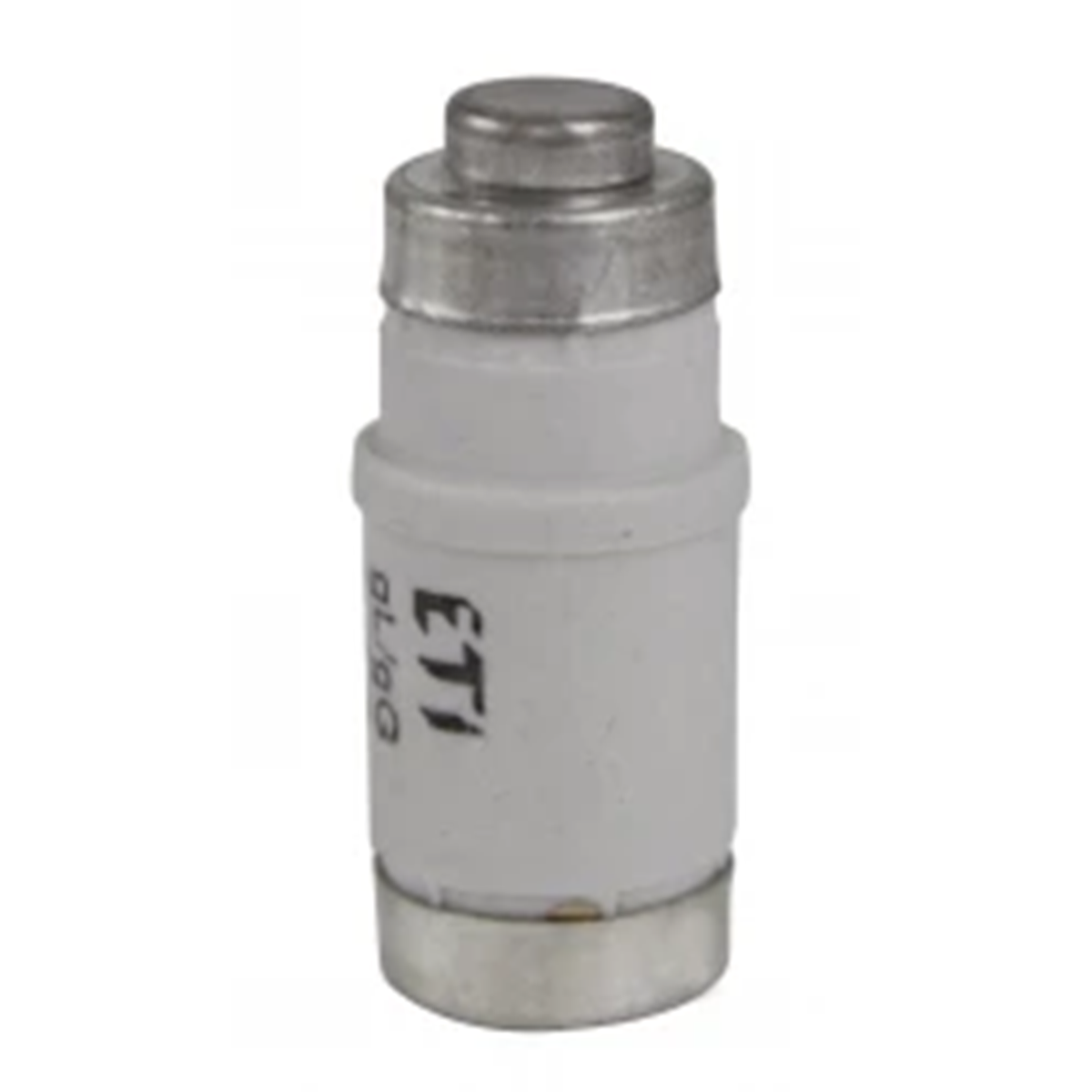

This type of fuse-links is designed to protect power installations against the effects of short-circuits and overloads, and to protect against electric shock. They have a colored actuation indicator visible when the inserts are mounted in the fuse head and in the fuse base.
Technical data
Characteristic
gG
Rated voltage [V]
230
Size
D02
Type
Small porcelain fuse link
PKWIU
27.12.21.0
Model
DO2 gG 25A 400
Rated current [A]
25
Handle
E18
Application
Securing electrical devices and installations
Other technical data
Construction size
D02
Rated voltage
400 V
Utilization category
gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
