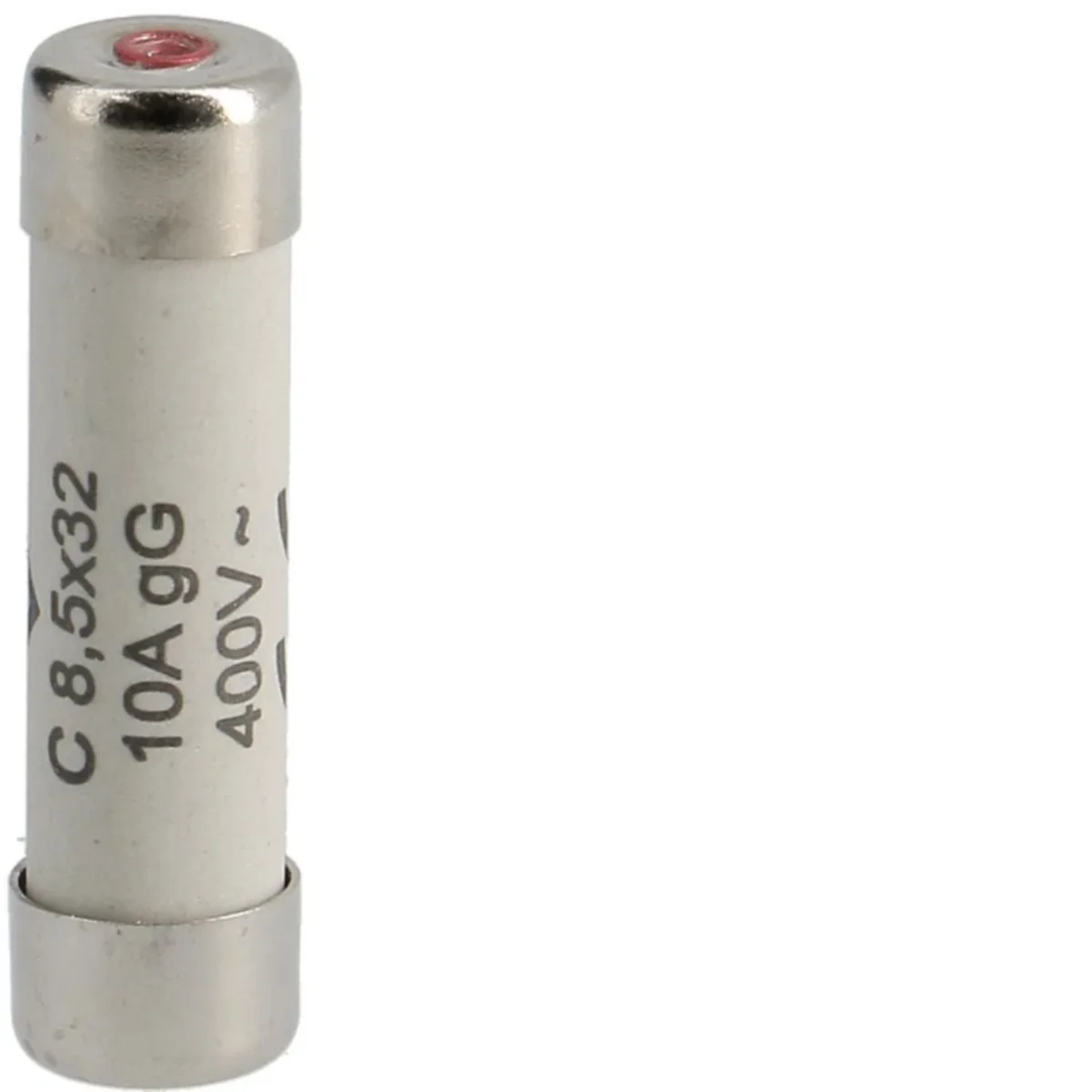

Cylindrical fuse-link C 8.5x32 10A 400V AC gG L8532C10

local index:
ABI599HAGE
Catalog No:
L8532C10
EAN code:
3250614128165
Manufacturer: HAGER
Characteristic: gG
Length [mm]: 32
Rated current [A]: 10
Price:
2,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cylindrical fuse link:

  • fuse link size: 8.5x32
  • type C

Technical data

  • Characteristic
    gG
  • Rated current [A]
    10
  • Width [mm]
    8.5
  • Height [mm]
    8.5
  • Rated short-circuit breaking capacity Icn [A]
    10
  • Length [mm]
    32
  • Size
    8.5x32
  • Fuse link size
    8.5 x 32
  • Rated switching voltage [V]
    400
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    8x32 mm
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    100 kA

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 40000 pcs.
Weight (kg) 0,003 0,041 187,000
Width (m) 0,001 0,045 0,800
Length (m) 0,001 0,008 0,420
Depth (m) 0,001 0,067 1,200
