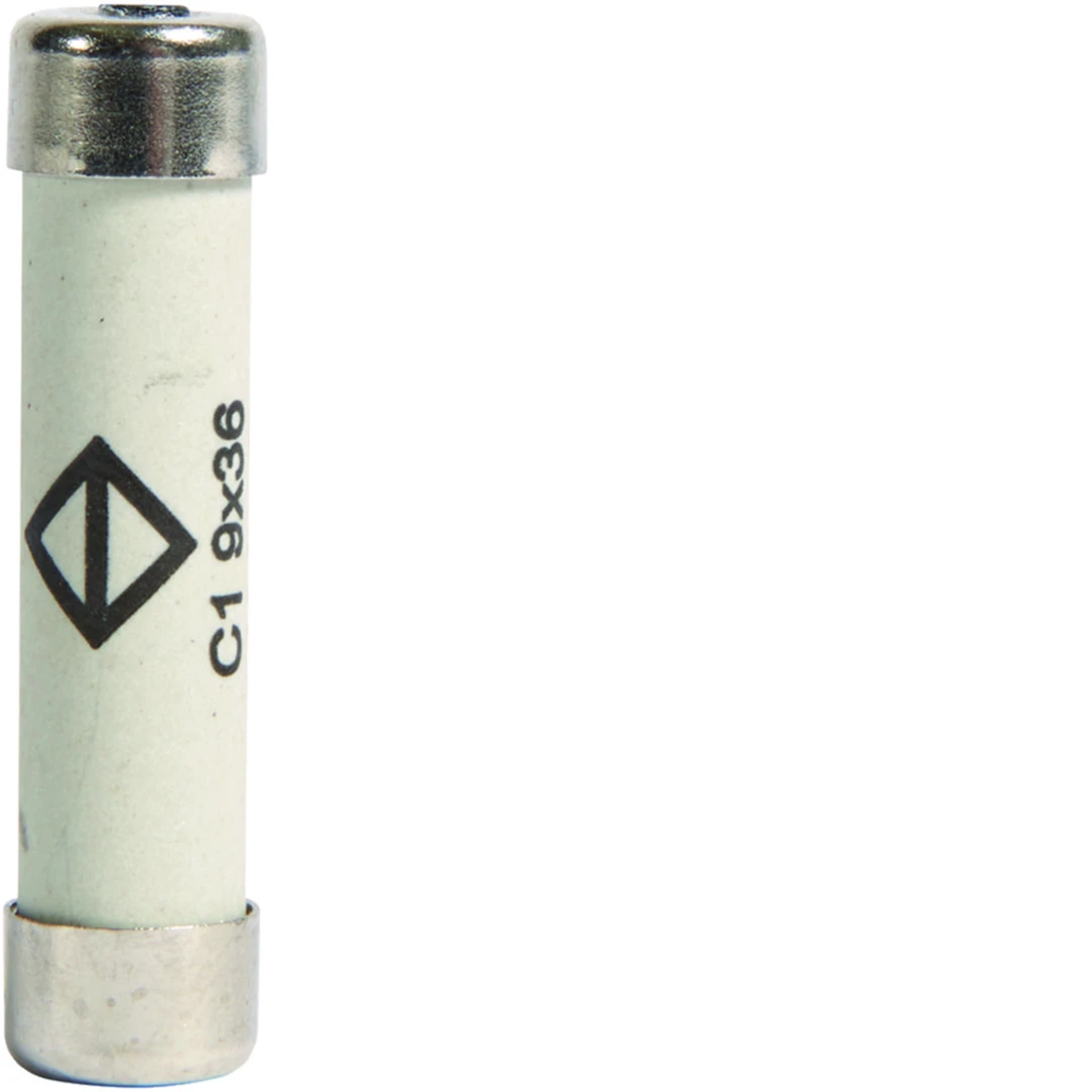

Cylindrical fuse link 9x36mm gG 40A 400V L936C1-40
local index:
ABI597HAGE
Catalog No:
L936C1-40
EAN code:
3250614128295
Price:
2,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse link:
- fuse link size: 9x36mm
Technical data
-
CharacteristicgG
-
Fuse link size9 x 36
-
Rated short-circuit breaking capacity Icn [A]40
-
Rated current [A]40
-
Rated switching voltage [V]400
-
PKWIU27.12.21.0
Other technical data
-
ModelCeramic fuse
-
Voltage typeAC
-
Rated voltage400 V
-
Rated operating frequency50 ... 60 Hz
-
Release characteristicMedium time-lag
-
Power loss at rated current5 W
-
SizeOther
-
Rated current40 A
-
Utilization categorygG (cable protection/equipment protection)
-
Type of fuse status indicatorTop fuse status indicator
-
Breaking capacity100 kA
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta |
| Quantity | 10 pcs. | 3330 pcs. |
| Weight (kg) | 0,040 | 13,320 |
| Width (m) | 0,040 | 0,800 |
| Length (m) | 0,010 | 1,050 |
| Depth (m) | 0,070 | 1,200 |
