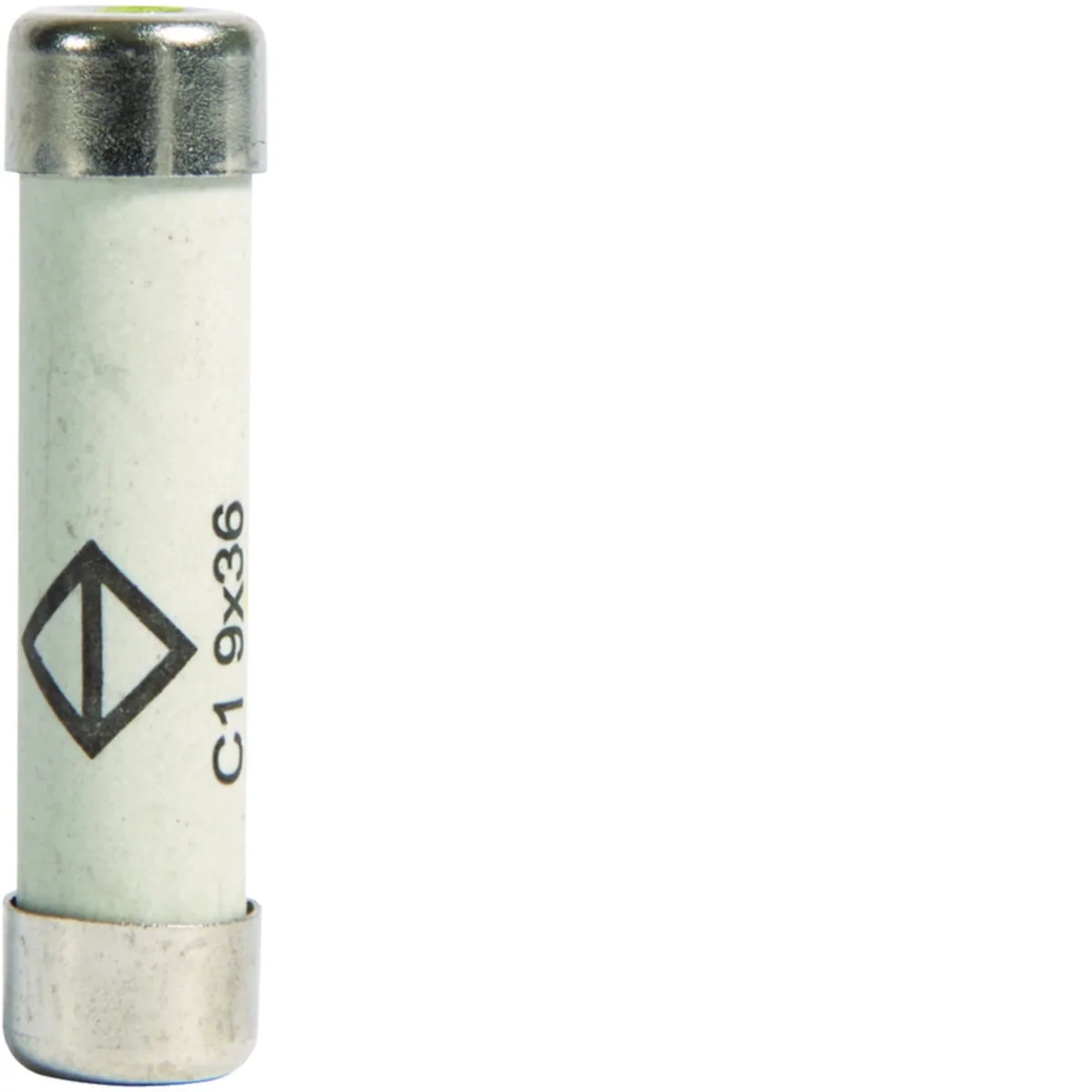

Cylindrical fuse link 9x36mm gG 25A 400V L936C1-25

local index:
ABI593HAGE
Catalog No:
L936C1-25
EAN code:
3250614128264
Manufacturer: HAGER
Characteristic: gG
Rated current [A]: 25
Fuse link size: 9 x 36
Price:
1,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cylindrical fuse link:

  • fuse link size: 9x36mm

Technical data

  • Characteristic
    gG
  • Fuse link size
    9 x 36
  • Rated short-circuit breaking capacity Icn [A]
    25
  • Rated current [A]
    25
  • Rated switching voltage [V]
    400
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    Other
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    100 kA

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 80000 pcs.
Weight (kg) 0,004 0,050 423,000
Width (m) 0,009 0,045 0,800
Length (m) 0,009 0,010 0,420
Depth (m) 0,036 0,076 1,200
