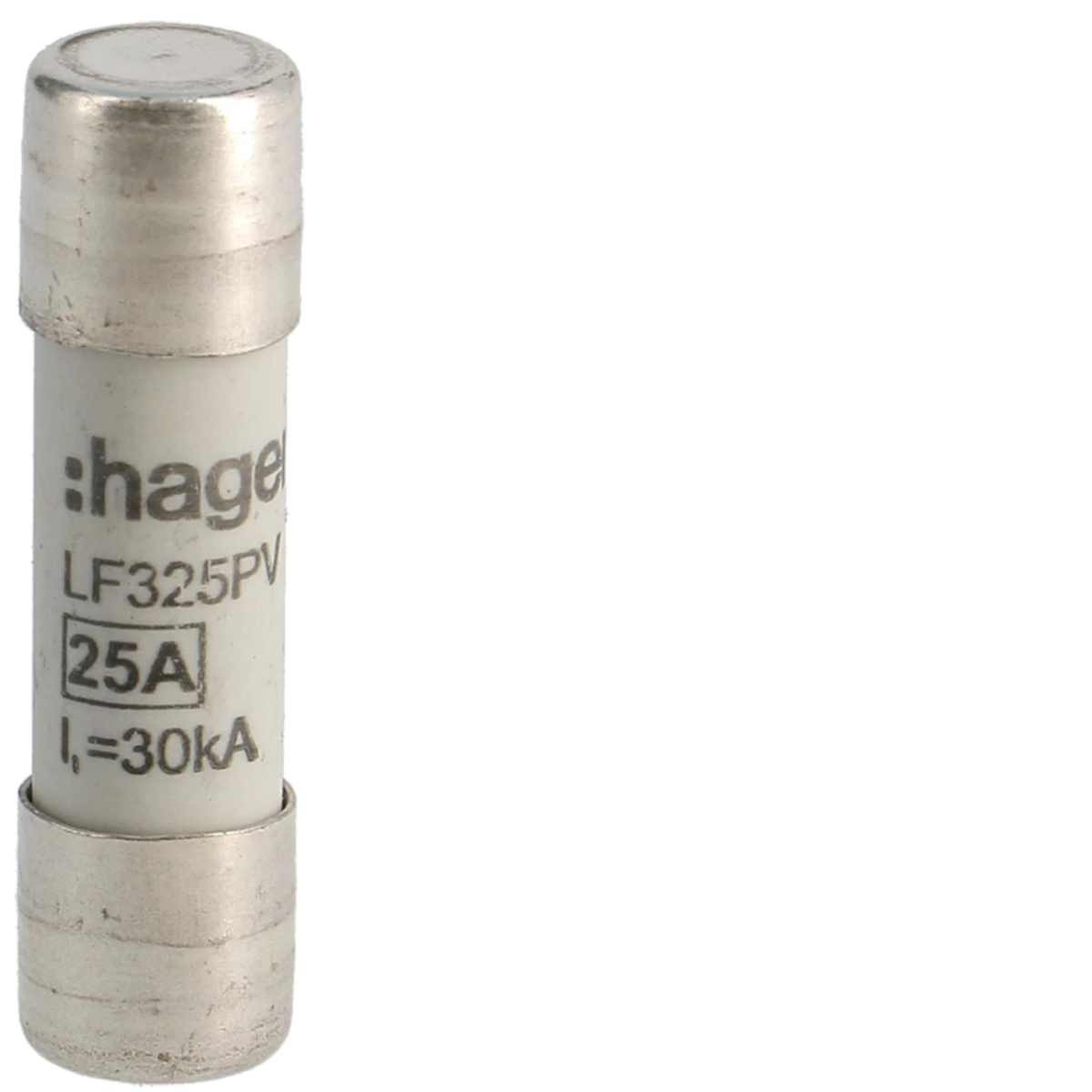

Cylindrical fuse-link 10x38 mm gPV 25 A 600 V d.c. LF325PV
local index:
ABI447HAGE
Catalog number:
LF325PV
EAN code:
3250614061622
51
67
zł
gross / pcs.
(including VAT 23%)
Availability
Dostępne up to 10 weeks
On request
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse link for photovoltaic installations:
- fuse link size: 10x38mm,
- 25A.
Technical data
-
DC operating voltage [V]600
-
power loss [W]2.74
-
Operating temperature range [°C]from -25 to 70
-
PKWIU27.12.21.0
-
Rated current [A]25
-
Fuse link size10.3x38
-
Rated short-circuit breaking capacity Icn [kA]thirty
Other technical data
-
ModelCeramic fuse
-
Rated current25 A
-
Voltage typeDC
-
Rated operating frequency50 ... 60 Hz
-
Release characteristicSuper fast (FF)
-
Power loss at rated current2.74 W
-
Size10x38 mm
-
Rated voltage DC1000 V
-
Utilization categorygPV (photovoltaic protection)
-
Type of fuse status indicatorTop fuse status indicator
-
Zdolność wyłączania przy napięciu znamionowym, DC30 kA
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 10 pcs. | 2000 pcs. | 48000 pcs. |
| Weight (kg) | 0,080 | 16,380 | 418,120 |
| Width (m) | 0,060 | 0,320 | 0,800 |
| Length (m) | 0,020 | 0,220 | 1,050 |
| Depth (m) | 0,080 | 0,360 | 1,200 |
