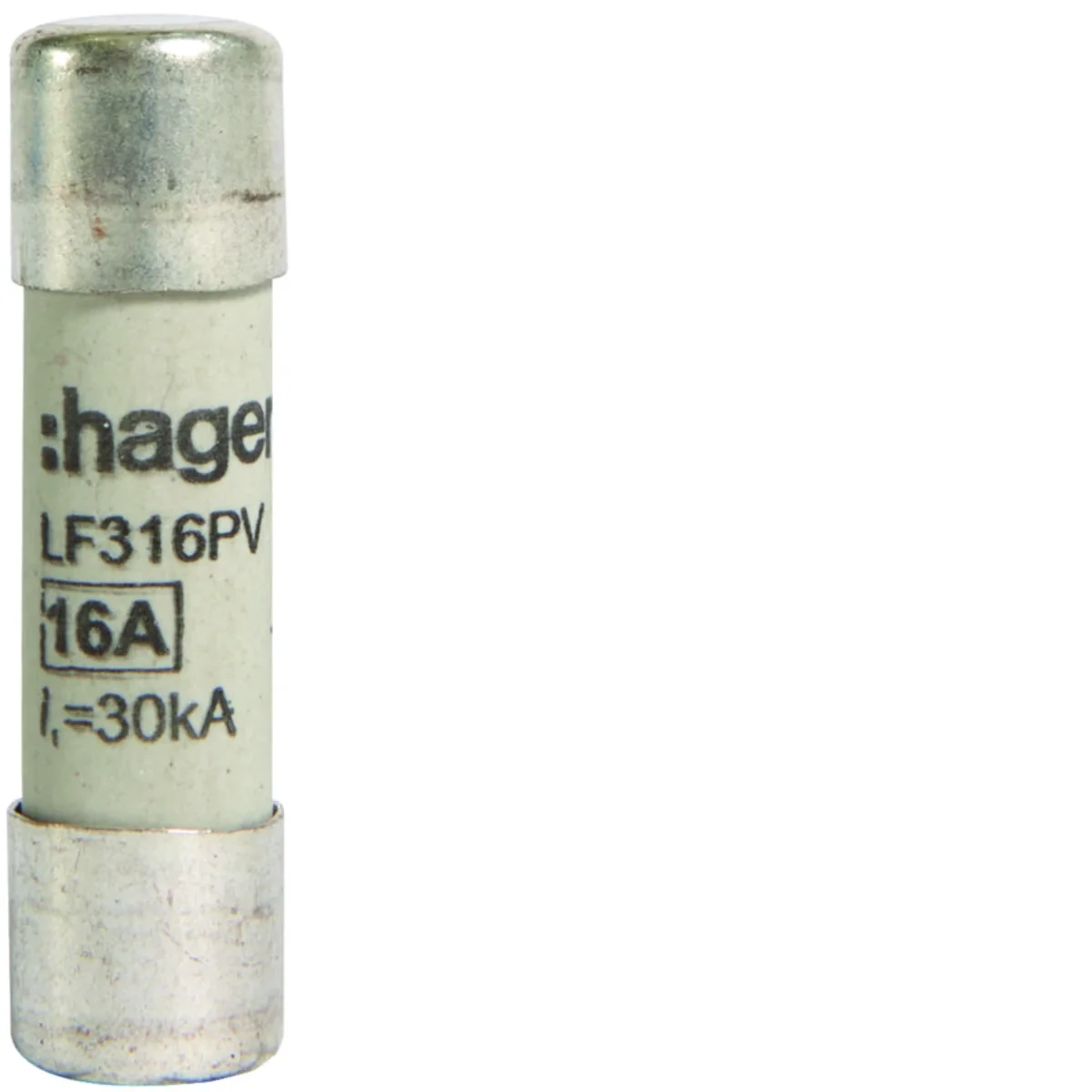

Cylindrical fuse-link 10x38 mm gPV 16 A 1000 V d.c. LF316PV
local index:
ABI583HAGE
Catalog No:
LF316PV
EAN code:
3250614061578
Price:
10,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse link:
- fuse link size: 10x38mm,
- 16A.
Technical data
-
DC operating voltage [V]1000
-
power loss [W]2.7
-
Operating temperature range [°C]from -25 to 70
-
PKWIU27.12.21.0
-
Rated current [A]16
-
Fuse link size10.3x38
-
Rated short-circuit breaking capacity Icn [kA]thirty
Other technical data
-
Size10x38 mm
-
Utilization categoryOther
-
Release characteristicOther
-
Voltage typeDC
-
Rated operating frequency50 ... 60 Hz
-
Breaking capacity30 kA
Manufacturer details
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 2000 pcs. | 48000 pcs. |
| Weight (kg) | 0,007 | 0,078 | 15,865 | 403,760 |
| Width (m) | 0,010 | 0,050 | 0,290 | 0,800 |
| Length (m) | 0,010 | 0,010 | 0,130 | 1,050 |
| Depth (m) | 0,010 | 0,080 | 0,385 | 1,200 |
