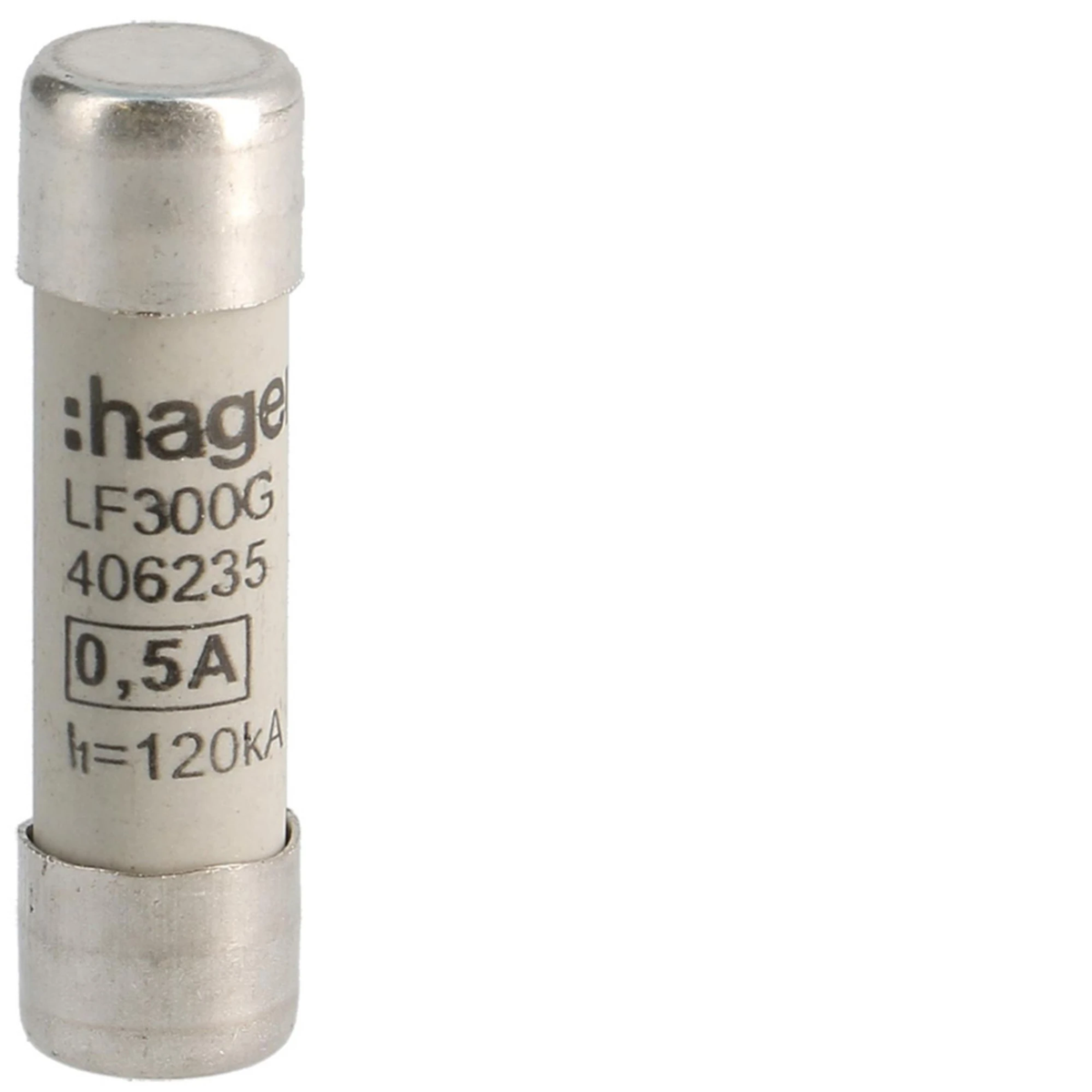

Cylindrical fuse-link 10x38 mm gG 0.5 A 500 V a.c. LF300G
local index:
ABI578HAGE
Catalog No:
LF300G
EAN code:
3250614062353
Price:
2,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse link:
- fuse link size: 10x38mm,
- 0.5A.
Technical data
-
Rated frequency [Hz]50
-
power loss [W]1.43
-
Rated switching voltage [V]500
-
PKWIU27.12.21.0
-
Rated current [A]0.5
-
Fuse link size10.3x38
-
Rated short-circuit breaking capacity Icn [kA]120
Other technical data
-
ModelCeramic fuse
-
Voltage typeAC
-
Rated voltage500 V
-
Rated operating frequency50 ... 60 Hz
-
Release characteristicTime-lag (T)
-
Power loss at rated current1.43 W
-
Size10x38 mm
-
Rated current0.5 A
-
Utilization categorygG (cable protection/equipment protection)
-
Type of fuse status indicatorTop fuse status indicator
-
Breaking capacity120 kA
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 10 pcs. | 2000 pcs. | 84000 pcs. | 10 pcs. | 2000 pcs. | 84000 pcs. |
| Weight (kg) | 0,070 | 14,000 | 588,000 | 0,070 | 14,000 | 588,000 |
| Width (m) | 0,050 | 0,290 | 0,800 | 0,050 | 0,290 | 0,800 |
| Length (m) | 0,010 | 0,120 | 1,020 | 0,010 | 0,120 | 1,020 |
| Depth (m) | 0,080 | 0,390 | 1,200 | 0,080 | 0,390 | 1,200 |
