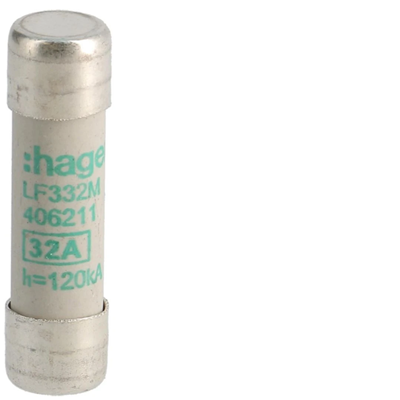

Cylindrical fuse-link 10x38 mm aM 32 A 400 V a.c. LF332M

local index:
ABI052HAGE
Catalog No:
LF332M
EAN code:
3250614062117
Manufacturer: HAGER
Rated current [A]: 32
Fuse link size: 10.3x38
Price:
4,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

< tr style="margin: 0px; padding: 0px;">
Specifications
Rated current In: 32A
Fuse link size: 10.3x38

Technical data

  • Rated current [A]
    32
  • PKWIU
    27.12.21.0
  • Fuse link size
    10.3x38

Other technical data

  • Size
    10x38 mm
  • Utilization category
    aM (switchgear protection)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    120 kA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 2000 pcs. 86400 pcs.
Weight (kg) 0,007 0,081 15,770 400,760
Width (m) 0,010 0,054 0,285 0,800
Length (m) 0,010 0,011 0,130 0,710
Depth (m) 0,038 0,081 0,380 1,200
