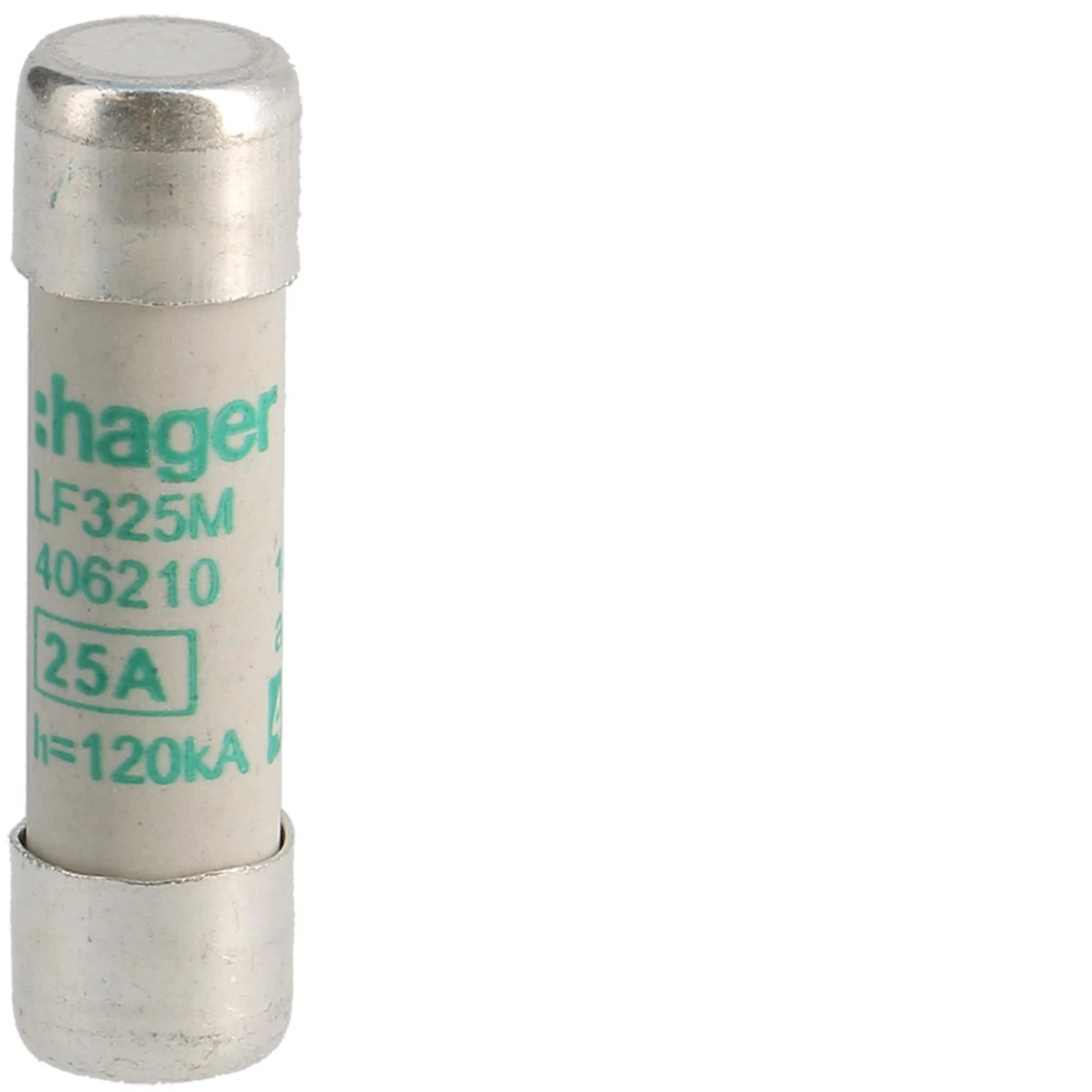

Cylindrical fuse-link 10x38 mm aM 25 A 400 V a.c. LF325M

local index:
ABI576HAGE
Catalog No:
LF325M
EAN code:
3250614062100
Manufacturer: HAGER
Rated current [A]: 25
power loss [W]: 1.4
Fuse link size: 10.3x38
Price:
5,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cylindrical fuse link:

  • fuse link size: 10x38mm,
  • 25A.

Technical data

  • Rated current [A]
    25
  • Fuse link size
    10.3x38
  • Rated short-circuit breaking capacity Icn [kA]
    120
  • power loss [W]
    1.4
  • Rated switching voltage [V]
    400
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    10x38 mm
  • Utilization category
    aM (switchgear protection)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    120 kA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 2000 pcs. 48000 pcs.
Weight (kg) 0,007 0,075 15,875 404,000
Width (m) 0,010 0,055 0,290 0,800
Length (m) 0,010 0,015 0,130 0,670
Depth (m) 0,038 0,080 0,380 1,200
