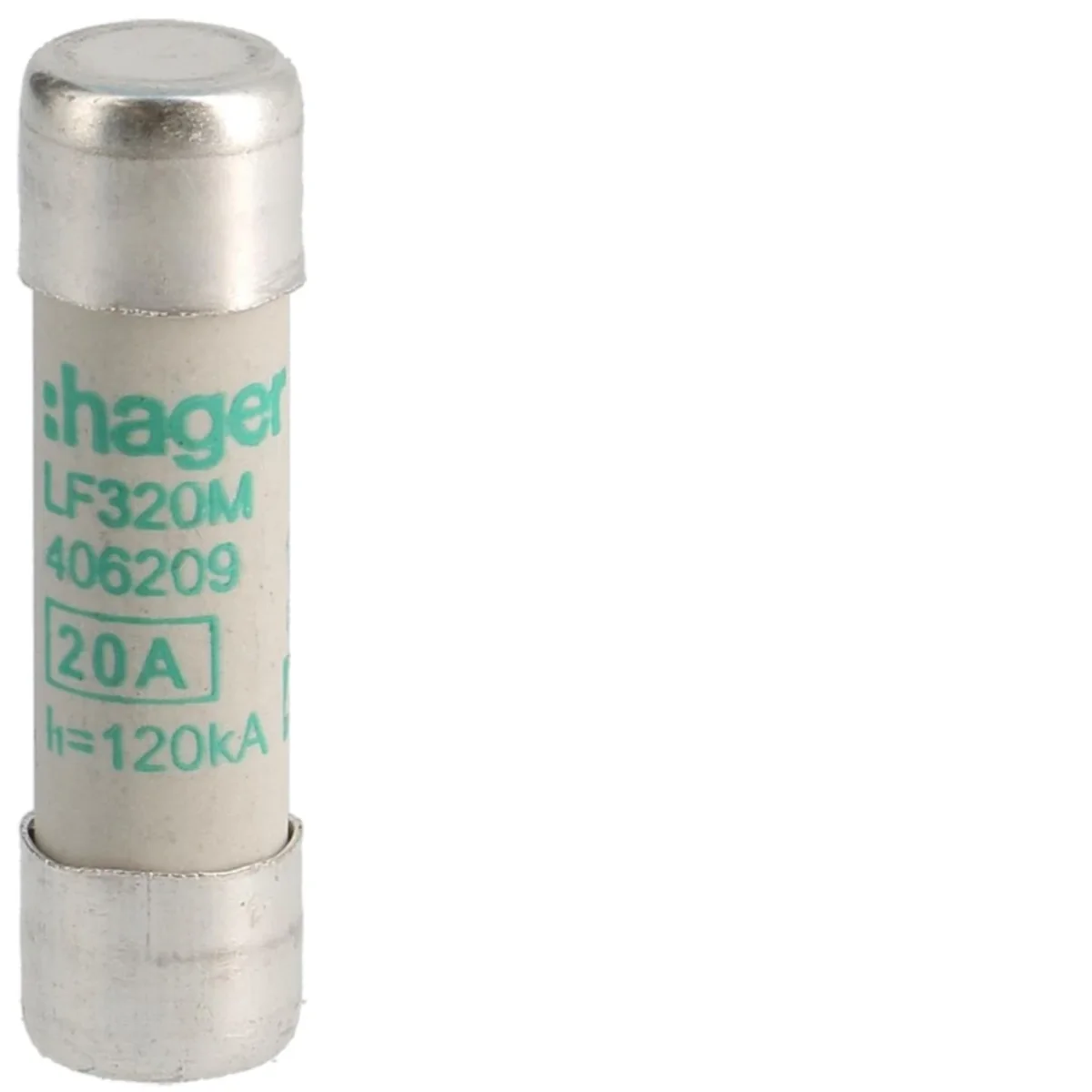

Cylindrical fuse-link 10x38 mm aM 20 A 400 V a.c. LF320M

local index:
ABI575HAGE
Catalog No:
LF320M
EAN code:
3250614062094
Manufacturer: HAGER
Rated current [A]: 20
power loss [W]: 0.96
Fuse link size: 10.3x38
Price:
4,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cylindrical fuse link:

  • fuse link size: 10x38mm,
  • 20A.

Technical data

  • Rated current [A]
    20
  • Fuse link size
    10.3x38
  • Rated short-circuit breaking capacity Icn [kA]
    120
  • power loss [W]
    0.96
  • Rated switching voltage [V]
    400
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    10x38 mm
  • Utilization category
    aM (switchgear protection)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    120 kA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 2000 pcs. 48000 pcs.
Weight (kg) 0,007 0,075 15,695 399,680
Width (m) 0,010 0,050 0,300 0,800
Length (m) 0,010 0,015 0,125 0,670
Depth (m) 0,038 0,080 0,380 1,200
