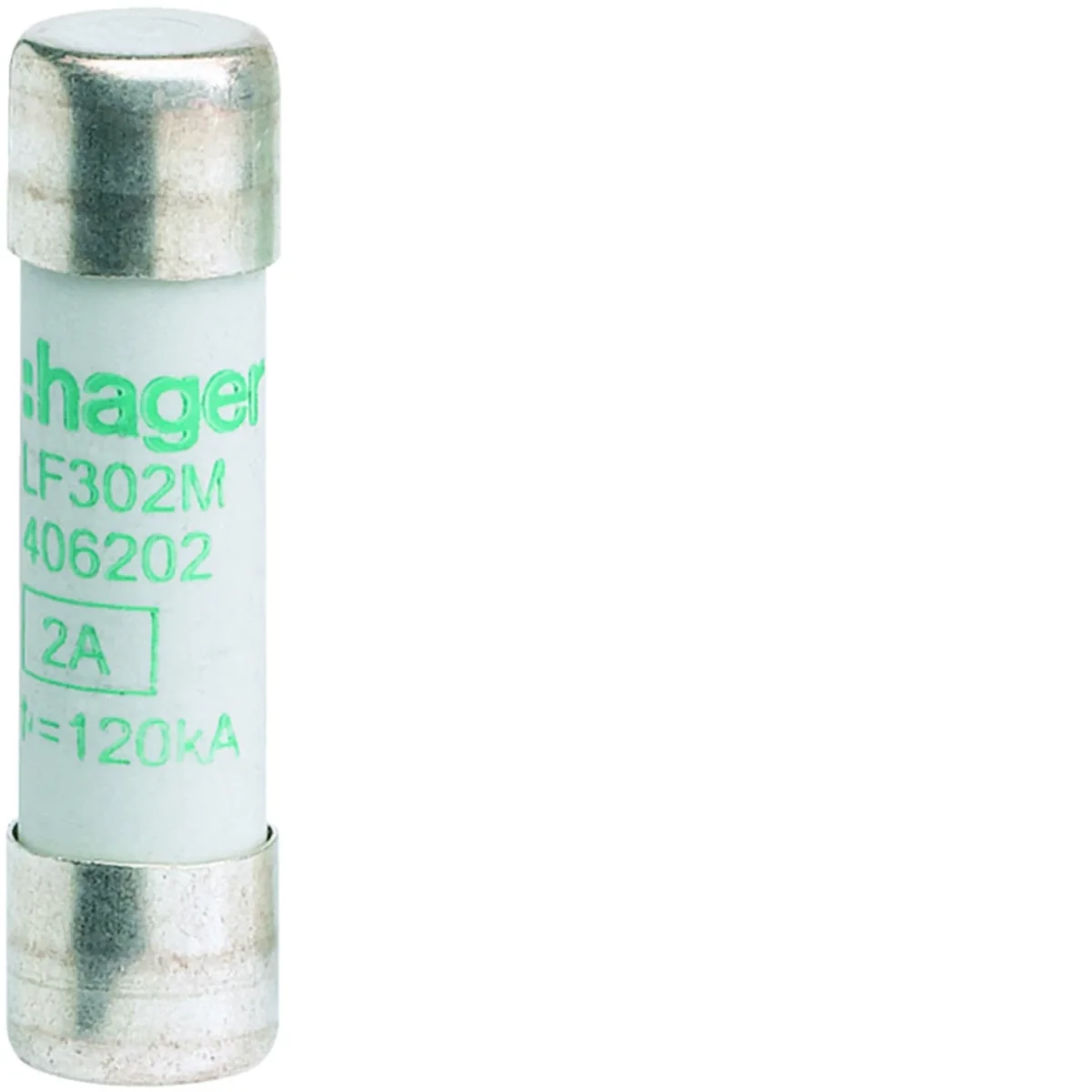

Cylindrical fuse-link 10x38 mm aM 2 A 500 V a.c. LF302M

local index:
ABI574HAGE
Catalog No:
LF302M
EAN code:
3250614062025
Manufacturer: HAGER
Rated current [A]: 2
power loss [W]: 0.18
Fuse link size: 10.3x38
Price:
4,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cylindrical fuse link:

  • fuse link size: 10x38mm,
  • 2A.

Technical data

  • Rated current [A]
    2
  • Fuse link size
    10.3x38
  • Rated short-circuit breaking capacity Icn [kA]
    120
  • power loss [W]
    0.18
  • Rated switching voltage [V]
    500
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    10x38 mm
  • Utilization category
    aM (switchgear protection)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    120 kA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 2000 pcs. 48000 pcs.
Weight (kg) 0,007 0,075 15,825 402,800
Width (m) 0,010 0,082 0,290 0,800
Length (m) 0,010 0,011 0,130 0,670
Depth (m) 0,038 0,051 0,385 1,200
