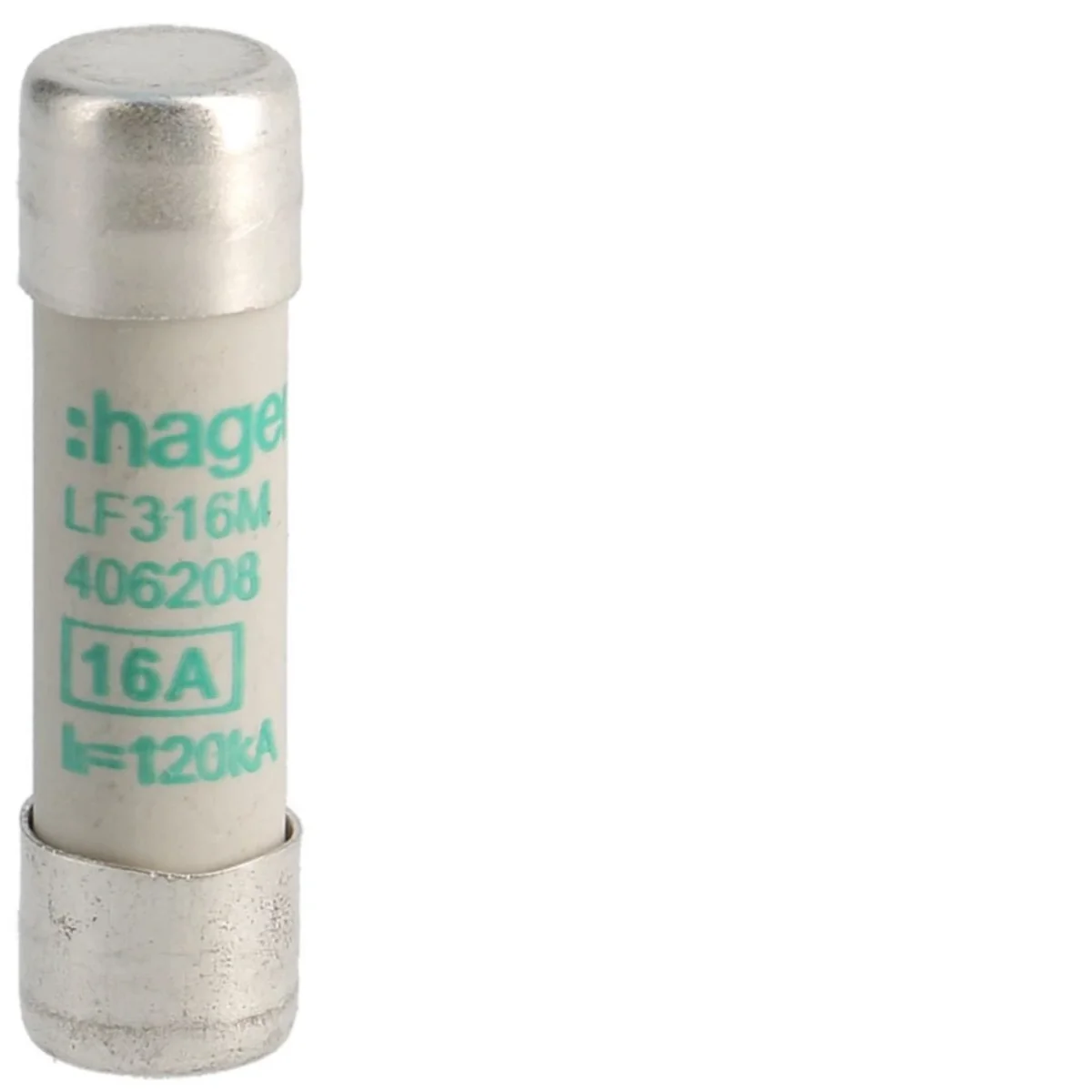

Cylindrical fuse-link 10x38 mm aM 16 A 500 V a.c. LF316M

local index:
ABI053HAGE
Catalog No:
LF316M
EAN code:
3250614062087
Manufacturer: HAGER
Rated current [A]: 16
power loss [W]: 0.92
Size: 1.3x38
Price:
5,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Glass, cylindrical, system D and knife fuses. Luminaires and sockets as well as fuse bases and switch disconnectors. A comprehensive offer of protections fully adapted to the needs of professional power engineering and various industries. In order to meet the expectations of the customer, Hager has introduced two trip signaling solutions for NH fuses. Fuses with an upper trip indicator are mainly intended for fuse bases, where the visibility of this indicator is good due to the lack of covers. Fuses with a double combined indicator are designed for fuse switch disconnectors. The indicator, which is located on the front plate of the porcelain body, is perfectly visible in the inspection windows that have fuse switches. Using such a solution significantly shortens the time of locating a damaged fuse.

Technical data

  • Rated current [A]
    16
  • Size
    1.3x38
  • power loss [W]
    0.92
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    10x38 mm
  • Utilization category
    aM (switchgear protection)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    120 kA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 2000 pcs. 48000 pcs.
Weight (kg) 0,007 0,078 16,040 409,960
Width (m) 0,010 0,055 0,313 0,800
Length (m) 0,010 0,010 0,216 1,014
Depth (m) 0,038 0,080 0,364 1,200
