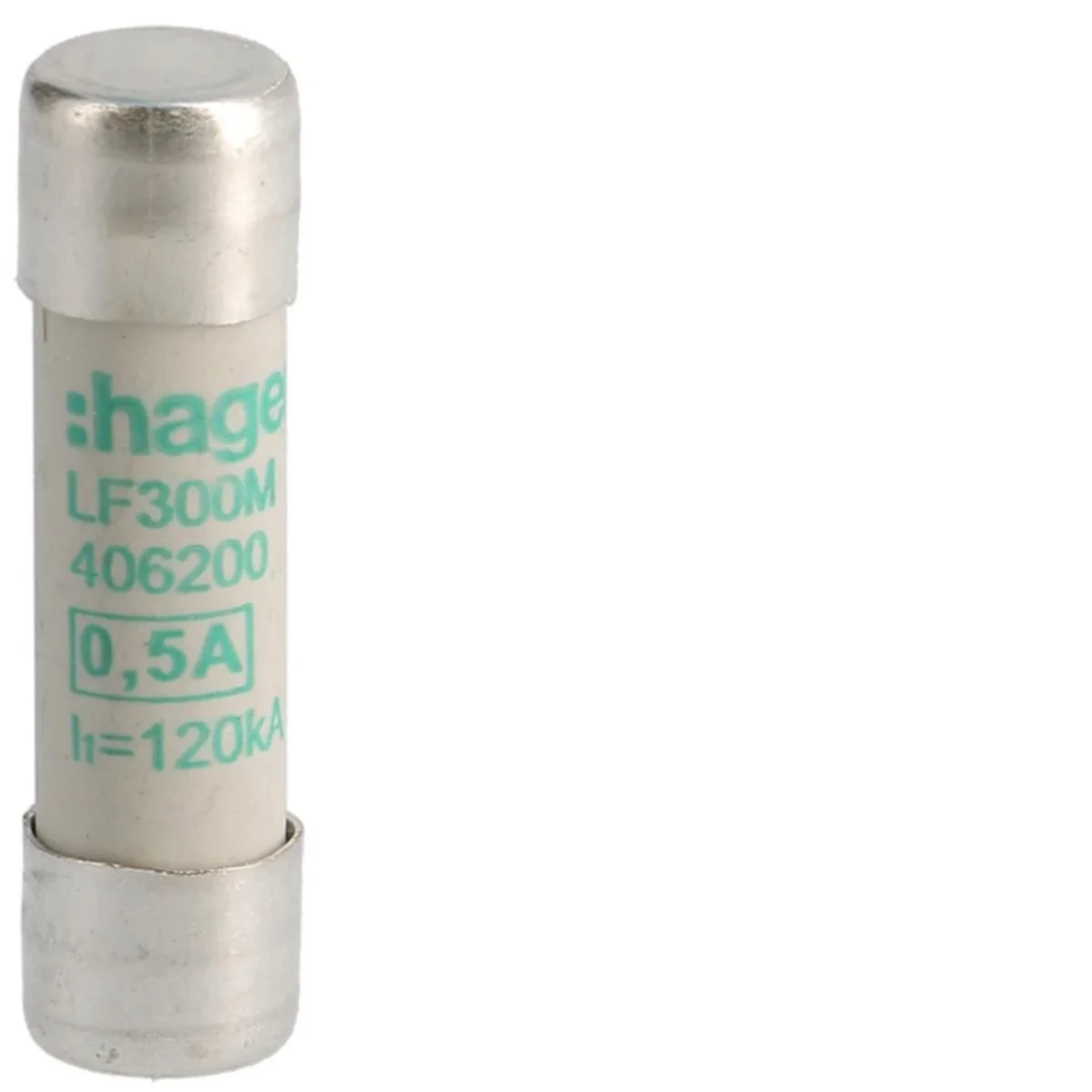

Cylindrical fuse-link 10x38 mm aM 0.5 A 500 V a.c. LF300M
local index:
ABI570HAGE
Catalog No:
LF300M
EAN code:
3250614062001
Price:
4,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse link:
- fuse link size: 10x38mm,
- 0.5A.
Technical data
-
Rated current [A]0.5
-
Fuse link size10.3x38
-
Rated short-circuit breaking capacity Icn [kA]120
-
power loss [W]0.49
-
Rated switching voltage [V]500
-
PKWIU27.12.21.0
Other technical data
-
Size10x38 mm
-
Utilization categoryaM (switchgear protection)
-
Release characteristicOther
-
Voltage typeAC
-
Rated operating frequency50 ... 60 Hz
-
Breaking capacity120 kA
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 2000 pcs. | 48000 pcs. |
| Weight (kg) | 0,007 | 0,078 | 16,040 | 409,960 |
| Width (m) | 0,010 | 0,054 | 0,315 | 0,800 |
| Length (m) | 0,010 | 0,011 | 0,219 | 1,026 |
| Depth (m) | 0,038 | 0,081 | 0,365 | 1,200 |
