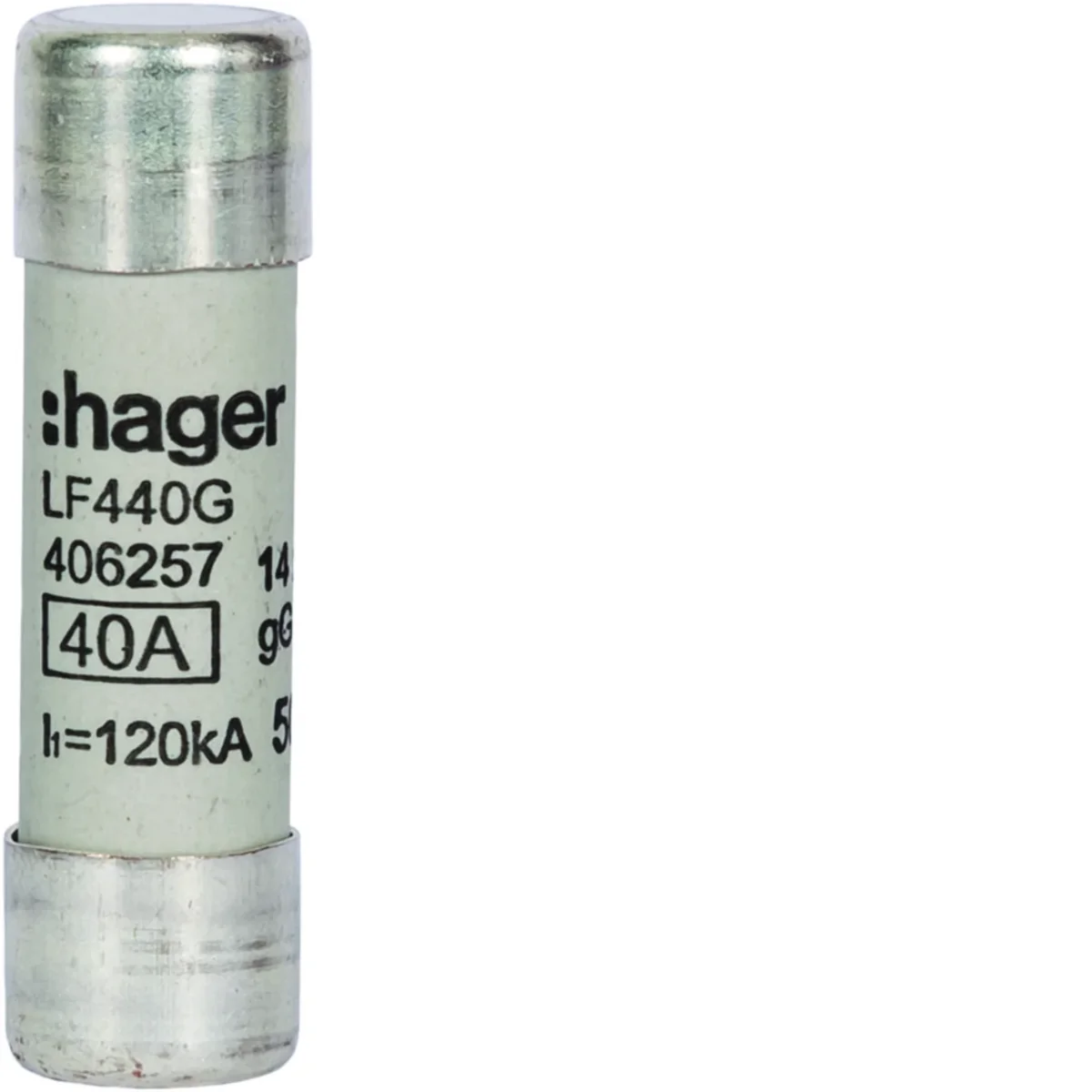

Cylindrical fuse gG 40A LF440G

local index:
ABI020HAGE
Catalog No:
LF440G
EAN code:
3250614062575
Manufacturer: HAGER
Rated current [A]: 40
Width [mm]: 45
Height [mm]: 14
Price:
2,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cylindrical fuses. Type CH, characteristics gG and aM
• material: ceramic cylinder and copper contact caps, silver-plated
• operating temperature: from -25°C to +70°C
• storage temperature: -40°C to +80°C
• sold in full packages of 10 pcs
• standards: EN/IEC 60269-1

Technical data

  • Rated current [A]
    40
  • Height [mm]
    14
  • Width [mm]
    45
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    14x51 mm
  • Utilization category
    aM (switchgear protection)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    120 kA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 1000 pcs. 24000 pcs.
Weight (kg) 0,019 0,200 20,000 503,000
Width (m) 0,014 0,075 0,290 0,800
Length (m) 0,014 0,015 0,155 0,670
Depth (m) 0,051 0,100 0,385 1,200
