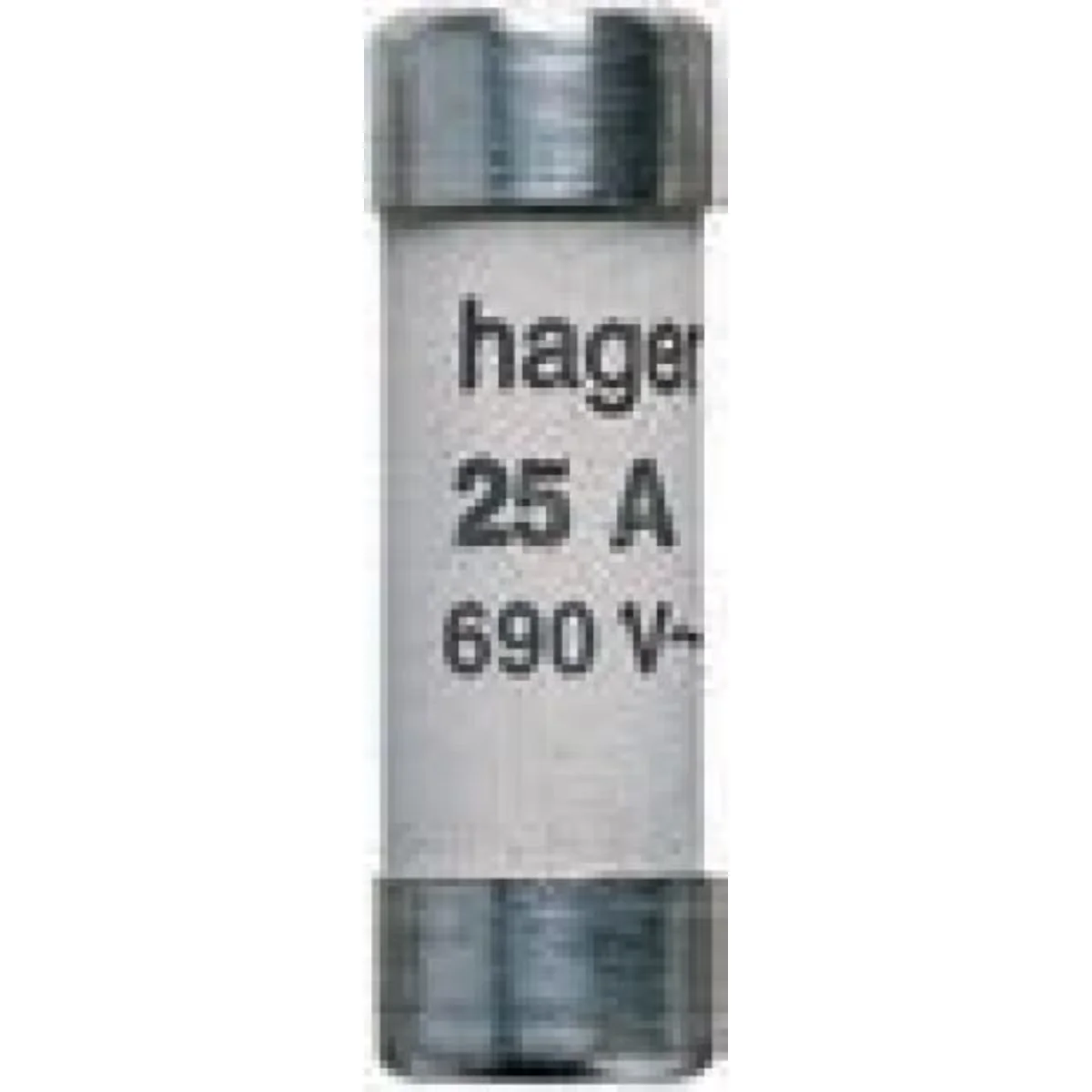

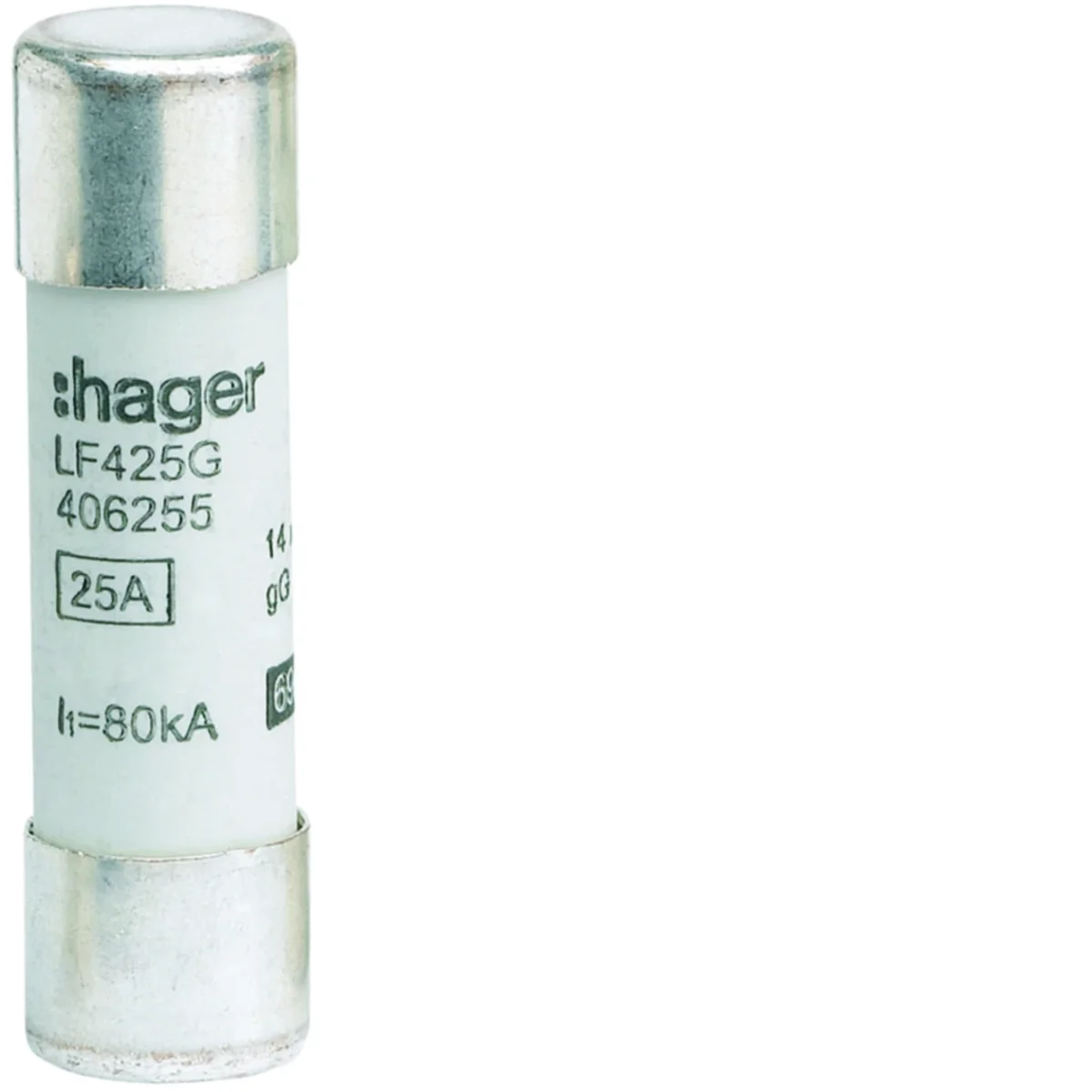

Name: Cylindrical fuse gG 25A
Brand: HAGER
SKU: ABI018HAGE
Price: 2.42 PLN

Cylindrical fuses. Type CH, characteristics gG and aM
• material: ceramic cylinder and copper contact caps, silver-plated
• operating temperature: from -25°C to +70°C
• storage temperature: -40°C to +80°C
• sold in full packages of 10 pcs
• standards: EN/IEC 60269-1

Rated current [A]

25
Height [mm]

14

Width [mm]

51
PKWIU

27.12.21.0

Other technical data

Size

14x51 mm
Utilization category

aM (switchgear protection)
Release characteristic

Other

Voltage type

AC
Rated operating frequency

50 ... 60 Hz
Breaking capacity

80 kA

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	1000 pcs.	24000 pcs.
Weight (kg)	0,019	0,193	19,575	492,800
Width (m)	0,014	0,105	0,290	0,800
Length (m)	0,014	0,016	0,130	0,670
Depth (m)	0,051	0,074	0,390	1,200
