Cylindrical fuse 22x58 gG 80A LF580G

Name: Cylindrical fuse 22x58 gG 80A
Brand: HAGER
SKU: ABI010HAGE
Price: 6.21 PLN

local index:

ABI010HAGE

Catalog No:

LF580G

EAN code:

3250614062735

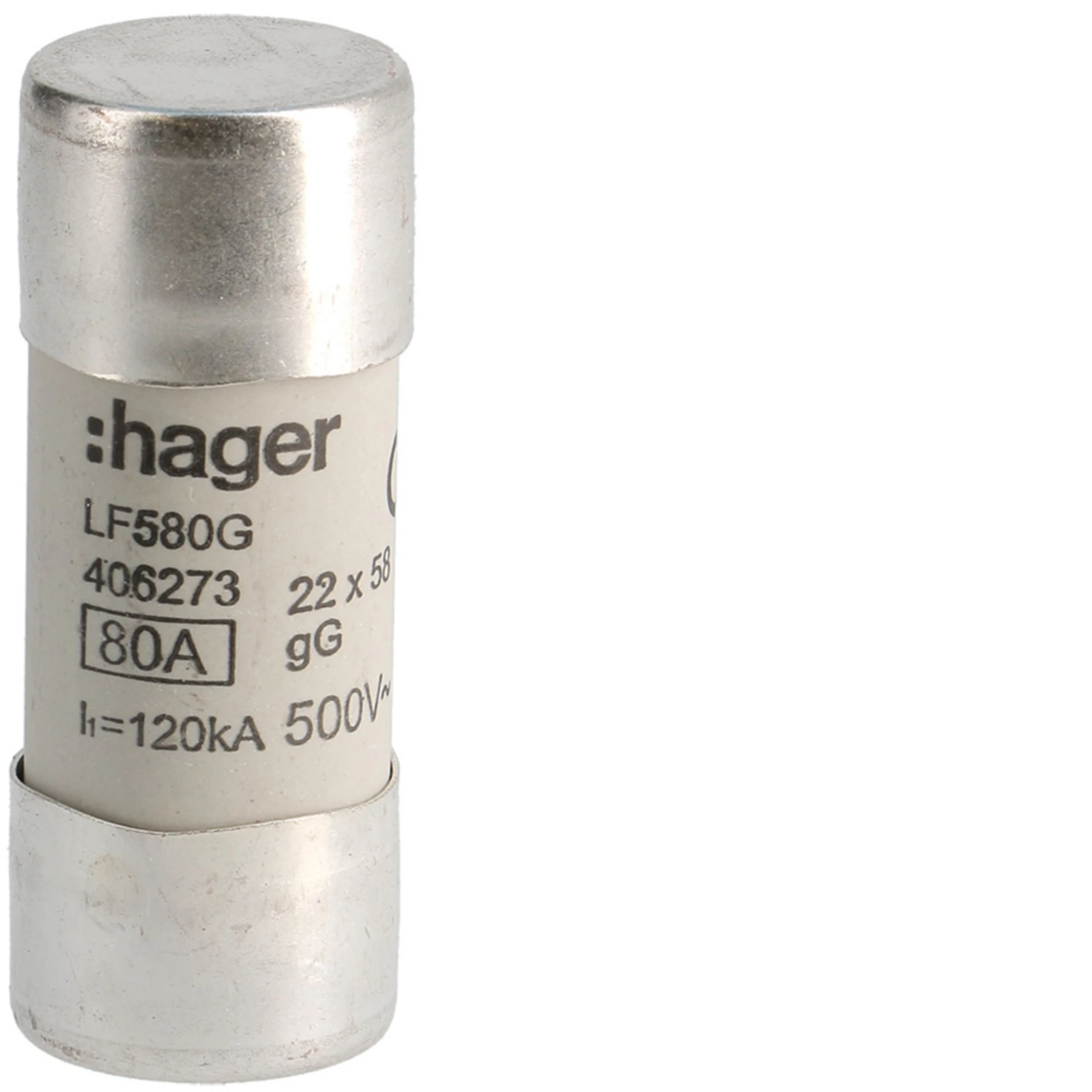

Click on the photo to enlarge

Manufacturer: HAGER

Width [mm]: 58

Height [mm]: 22

See full description

Price:

6,21 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Cylindrical fuses. Type CH, characteristics gG and aM
• material: ceramic cylinder and copper contact caps, silver-plated
• operating temperature: from -25°C to +70°C
• storage temperature: -40°C to +80°C
• sold in full packages of 10 pcs
• standards: EN/IEC 60269-1

Technical data

Width [mm]

58
PKWIU

27.12.21.0

Height [mm]

22

Other technical data

Model

Ceramic fuse
Voltage type

AC
Rated voltage

500 V
Rated operating frequency

50 ... 60 Hz
Release characteristic

Time-lag (T)
Power loss at rated current

7.8 W

Size

22x58 mm
Rated current

80 A
Utilization category

gG (cable protection/equipment protection)
Type of fuse status indicator

Top fuse status indicator
Breaking capacity

120 kA

Manufacturer details

Manufacturer

Hager Electro S.A.S.
Address

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	10 pcs.	300 pcs.	7200 pcs.
Weight (kg)	0,510	15,300	367,200
Width (m)	0,110	0,280	0,800
Length (m)	0,020	0,130	0,560
Depth (m)	0,120	0,380	1,200
