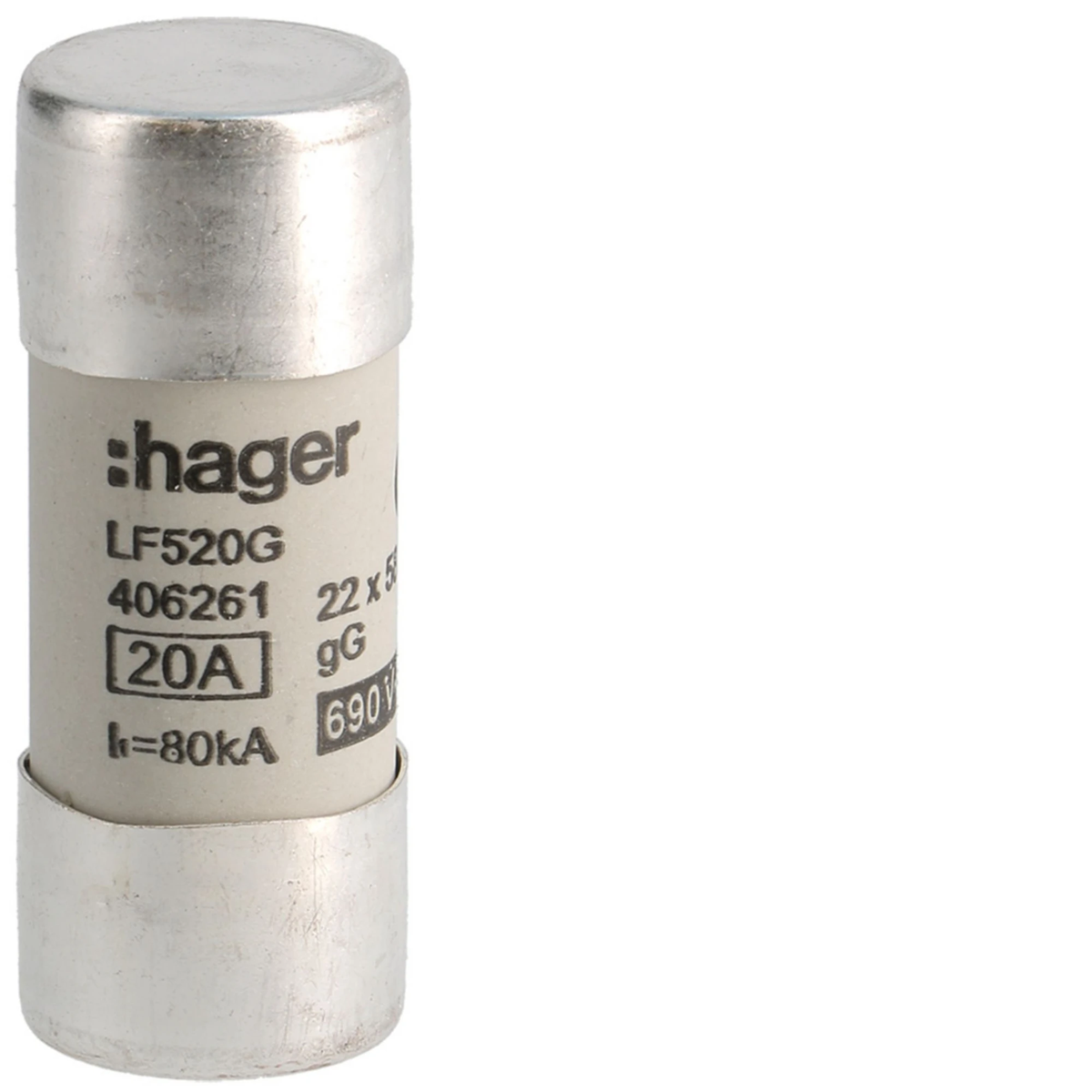

Cylindrical fuse 22x58 gG 20A LF520G

local index:
ABI028HAGE
Catalog No:
LF520G
EAN code:
3250614062612
Manufacturer: HAGER
Rated voltage [V]: 690
Rated current [A]: 20
Power dissipation [W]: 3
Price:
4,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cylindrical fuse 22x58 gG 20A

Technical data

  • Rated voltage [V]
    690
  • Power dissipation [W]
    3
  • Height [mm]
    22
  • Rated current [A]
    20
  • Width [mm]
    58
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    22x58 mm
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    80 kA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 300 pcs. 12600 pcs.
Weight (kg) 0,050 0,510 15,680 683,000
Width (m) 0,022 0,115 0,290 0,800
Length (m) 0,022 0,025 0,130 1,074
Depth (m) 0,058 0,120 0,390 1,200
