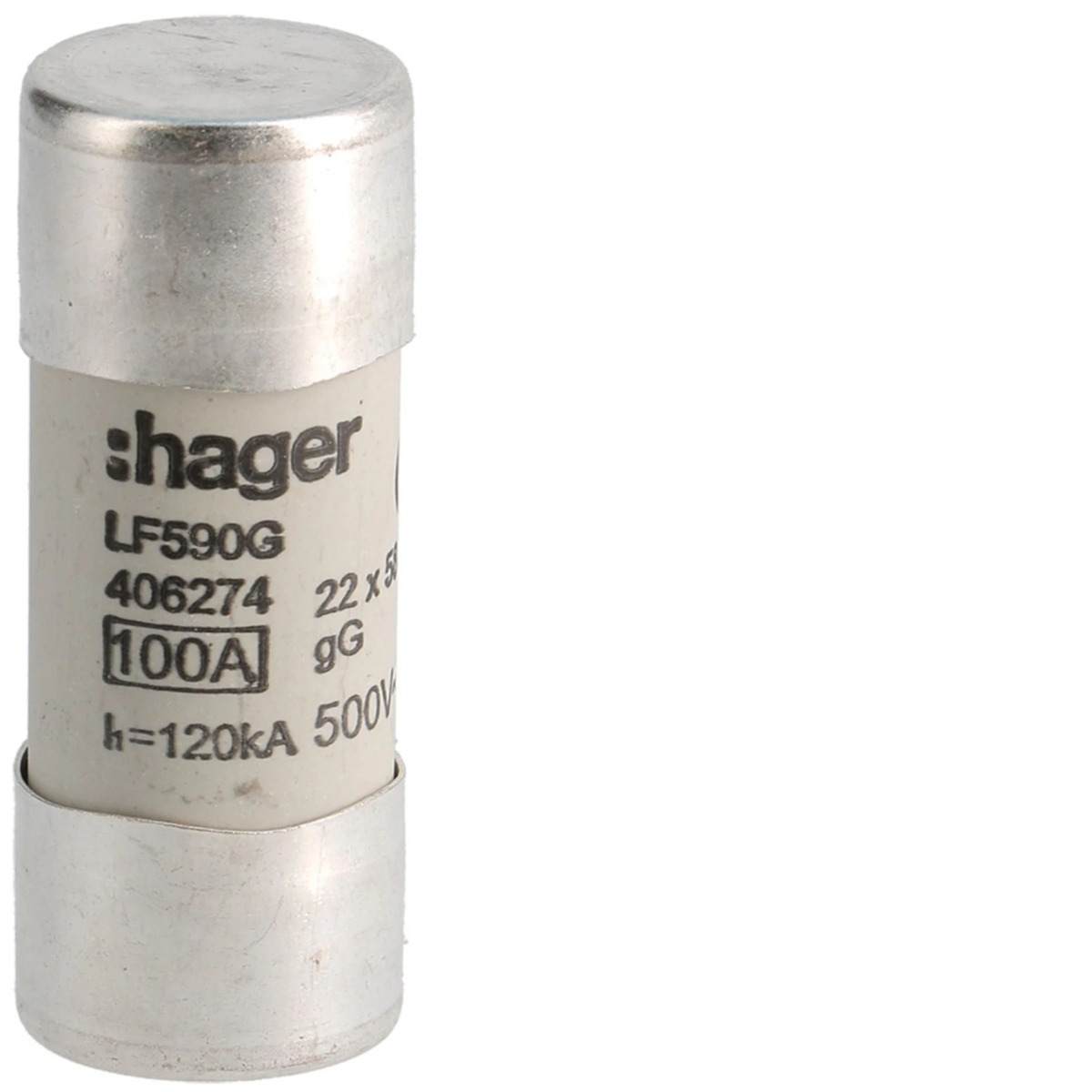

Cylindrical fuse 22x58 gG 100A LF590G

Name: Cylindrical fuse 22x58 gG 100A
Brand: HAGER
SKU: ABI011HAGE
Price: 6.59 PLN

local index:

ABI011HAGE

Catalog No:

LF590G

EAN code:

3250614062742

Click on the photo to enlarge

Manufacturer: HAGER

Rated current [A]: 100

Width [mm]: 58

Height [mm]: 22

See full description

Price:

6,59 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Cylindrical fuses. Type CH, characteristics gG and aM
• material: ceramic cylinder and copper contact caps, silver-plated
• operating temperature: from -25°C to +70°C
• storage temperature: -40°C to +80°C
• sold in full packages of 10 pcs
• standards: EN/IEC 60269-1

Technical data

Rated current [A]

100
Height [mm]

22

Width [mm]

58
PKWIU

27.12.21.0

Other technical data

Size

22x58 mm
Utilization category

gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
Release characteristic

Other

Voltage type

AC
Rated operating frequency

50 ... 60 Hz
Breaking capacity

120 kA

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	10 pcs.	300 pcs.	7200 pcs.
Weight (kg)	0,535	16,260	413,240
Width (m)	0,115	0,285	0,800
Length (m)	0,025	0,130	1,050
Depth (m)	0,115	0,375	1,200
