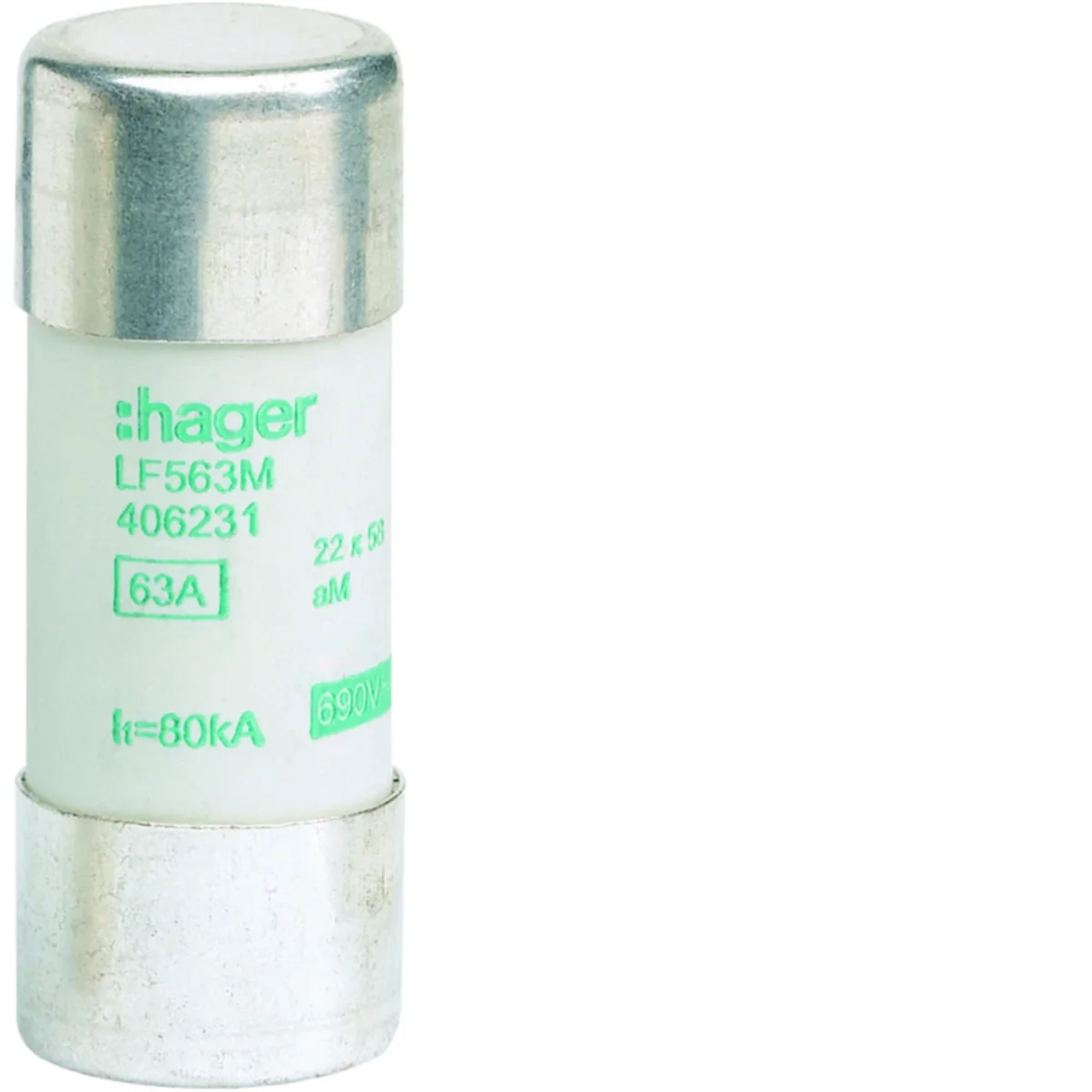

Cylindrical fuse 22x58 aM 63A LF563M

local index:
ABI245HAGE
Catalog No:
LF563M
EAN code:
3250614062315
Manufacturer: HAGER
Rated current [A]: 63
power loss [W]: 4.46
Fuse link size: 22 x 58
Price:
7,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cylindrical fuse:

  • fuse insert size: 22x58mm,
  • 63A.

Technical data

  • Rated current [A]
    63
  • Fuse link size
    22 x 58
  • Rated short-circuit breaking capacity Icn [kA]
    80
  • power loss [W]
    4.46
  • Rated switching voltage [V]
    690
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    22x58 mm
  • Utilization category
    aM (switchgear protection)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    80 kA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 300 pcs. 12600 pcs.
Weight (kg) 0,051 0,515 15,690 681,980
Width (m) 0,022 0,115 0,290 0,800
Length (m) 0,022 0,025 0,130 1,074
Depth (m) 0,058 0,120 0,385 1,200
