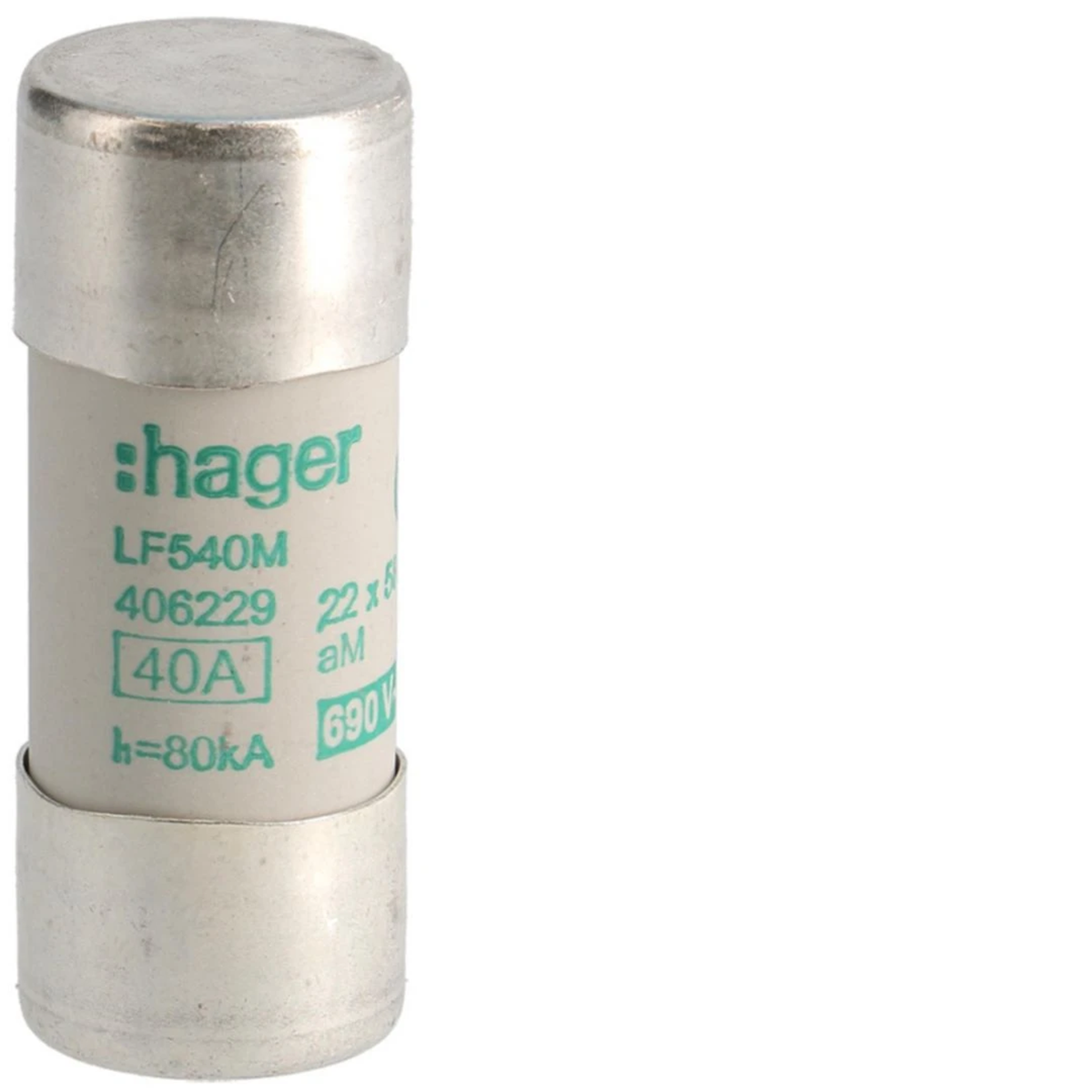

Cylindrical fuse 22x58 aM 40A LF540M
local index:
ABI243HAGE
Catalog No:
LF540M
EAN code:
3250614062292
Price:
8,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse:
- fuse insert size: 22x58mm,
- 40A.
Technical data
-
Rated current [A]40
-
Fuse link size22 x 58
-
Rated short-circuit breaking capacity Icn [kA]80
-
power loss [W]3.4
-
Rated switching voltage [V]690
-
PKWIU27.12.21.0
Other technical data
-
ModelCeramic fuse
-
Voltage typeAC
-
Rated voltage690 V
-
Rated operating frequency50 ... 60 Hz
-
Release characteristicTime-lag (T)
-
Power loss at rated current3.4 W
-
Size22x58 mm
-
Rated current40 A
-
Utilization categoryaM (switchgear protection)
-
Type of fuse status indicatorTop fuse status indicator
-
Breaking capacity80 kA
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 10 pcs. | 300 pcs. | 7200 pcs. | 10 pcs. | 300 pcs. | 7200 pcs. |
| Weight (kg) | 0,510 | 15,300 | 367,200 | 0,510 | 15,300 | 367,200 |
| Width (m) | 0,110 | 0,290 | 0,800 | 0,110 | 0,290 | 0,800 |
| Length (m) | 0,020 | 0,140 | 0,430 | 0,020 | 0,140 | 0,430 |
| Depth (m) | 0,110 | 0,390 | 1,200 | 0,110 | 0,390 | 1,200 |
