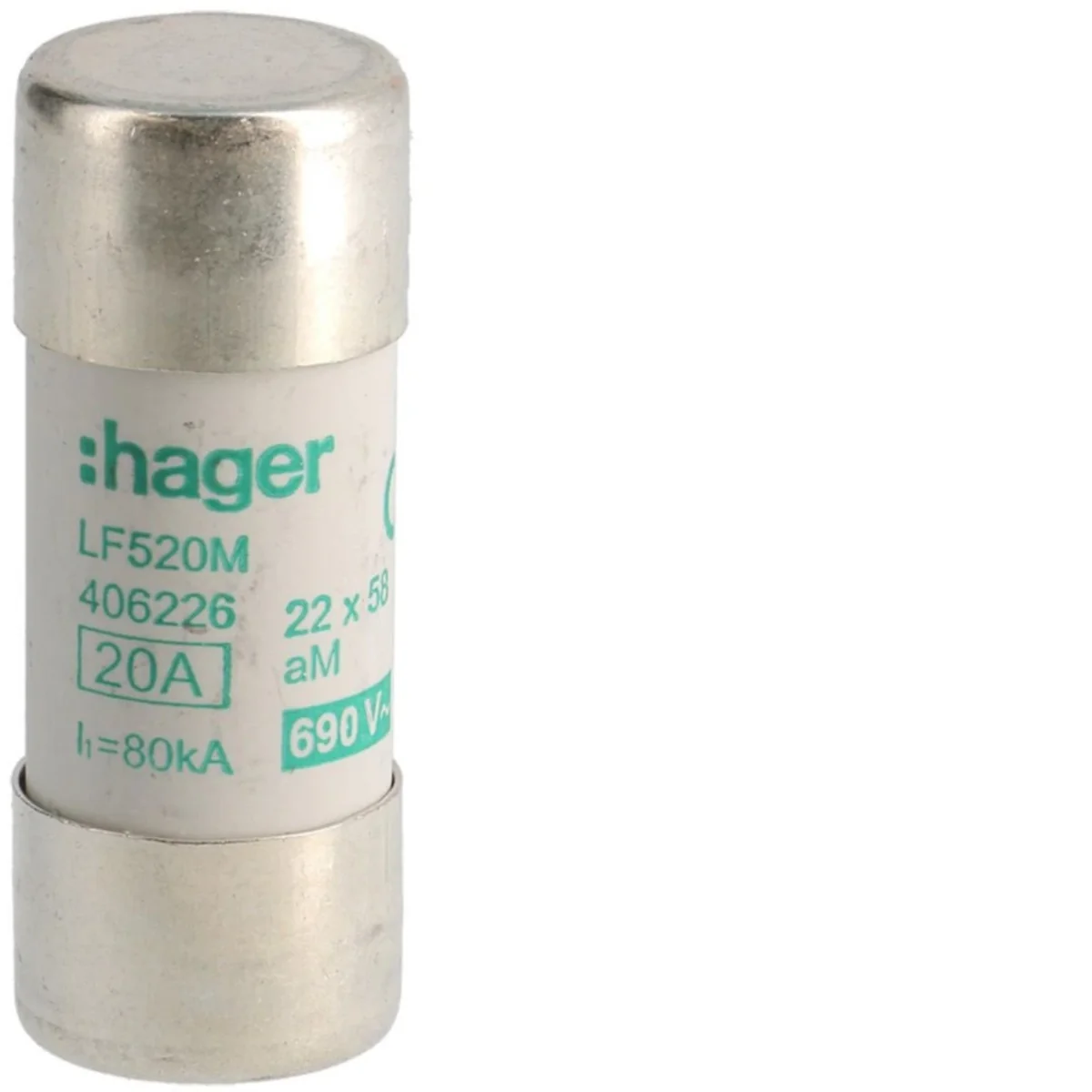

Cylindrical fuse 22x58 aM 20A LF520M
local index:
ABI239HAGE
Catalog No:
LF520M
EAN code:
3250614062261
Price:
7,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse:
- fuse insert size: 22x58mm,
- 20A.
Technical data
-
Rated current [A]20
-
Fuse link size22 x 58
-
Rated short-circuit breaking capacity Icn [kA]80
-
power loss [W]1.29
-
Rated switching voltage [V]690
-
PKWIU27.12.21.0
Other technical data
-
Size22x58 mm
-
Utilization categoryaM (switchgear protection)
-
Release characteristicOther
-
Voltage typeAC
-
Rated operating frequency50 ... 60 Hz
-
Breaking capacity80 kA
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 300 pcs. | 7200 pcs. |
| Weight (kg) | 0,051 | 0,512 | 15,635 | 398,240 |
| Width (m) | 0,022 | 0,113 | 0,290 | 0,800 |
| Length (m) | 0,022 | 0,023 | 0,130 | 0,670 |
| Depth (m) | 0,058 | 0,119 | 0,390 | 1,200 |
