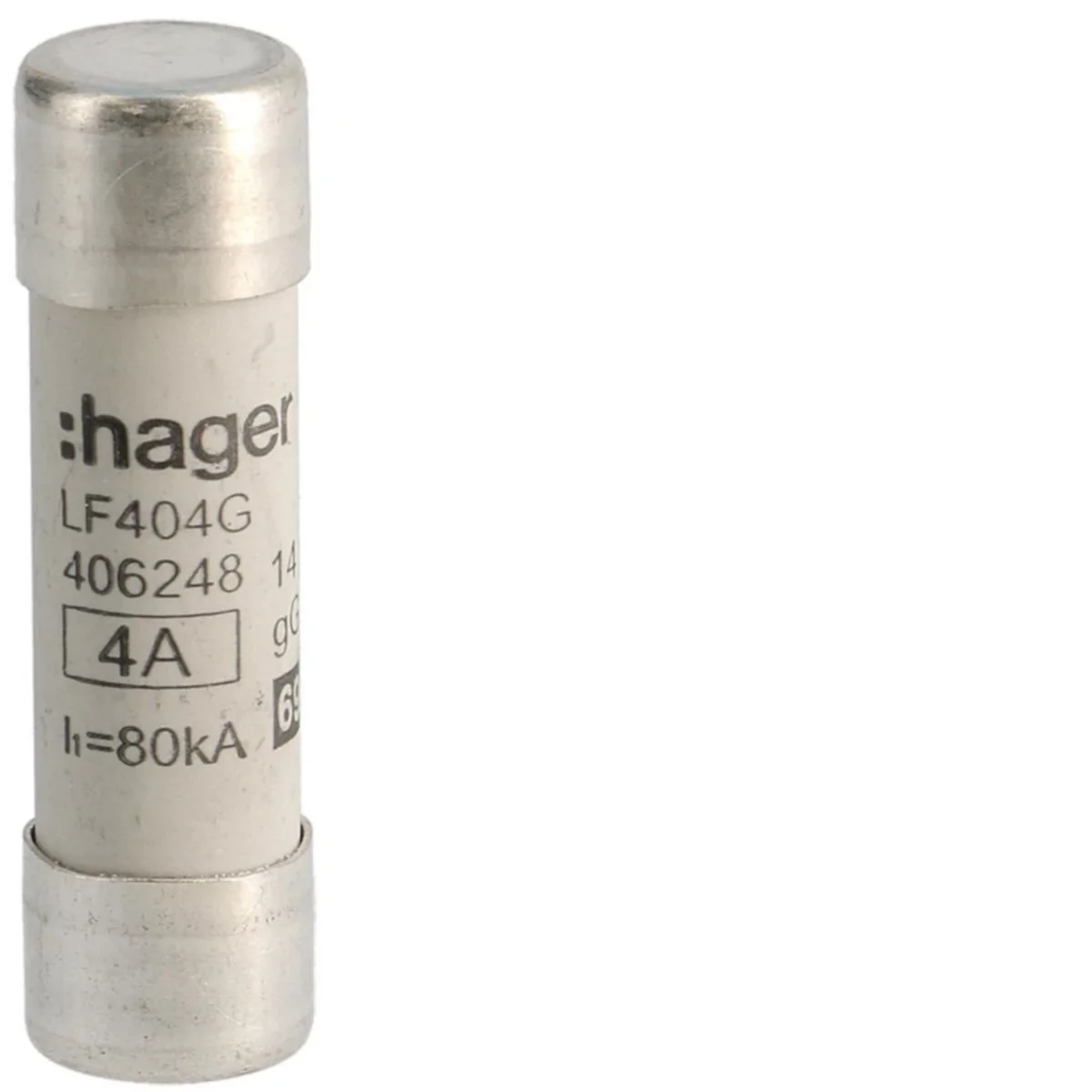

Cylindrical fuse 14x51 gG 4A LF404G

local index:
ABI216HAGE
Catalog No:
LF404G
EAN code:
3250614062483
Manufacturer: HAGER
Rated frequency [Hz]: 50
Rated current [A]: 4
power loss [W]: 1
Price:
2,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cylindrical fuse:

  • fuse insert size: 14x51mm,
  • 4A.

Technical data

  • Rated frequency [Hz]
    50
  • power loss [W]
    1
  • Rated switching voltage [V]
    690
  • PKWIU
    27.12.21.0
  • Rated current [A]
    4
  • Fuse link size
    14 x 51
  • Rated short-circuit breaking capacity Icn [kA]
    80

Other technical data

  • Size
    14x51 mm
  • Utilization category
    aM (switchgear protection)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    80 kA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 1000 pcs. 24000 pcs.
Weight (kg) 0,018 0,190 19,540 491,960
Width (m) 0,014 0,075 0,295 0,800
Length (m) 0,014 0,015 0,165 1,050
Depth (m) 0,051 0,105 0,385 1,200
