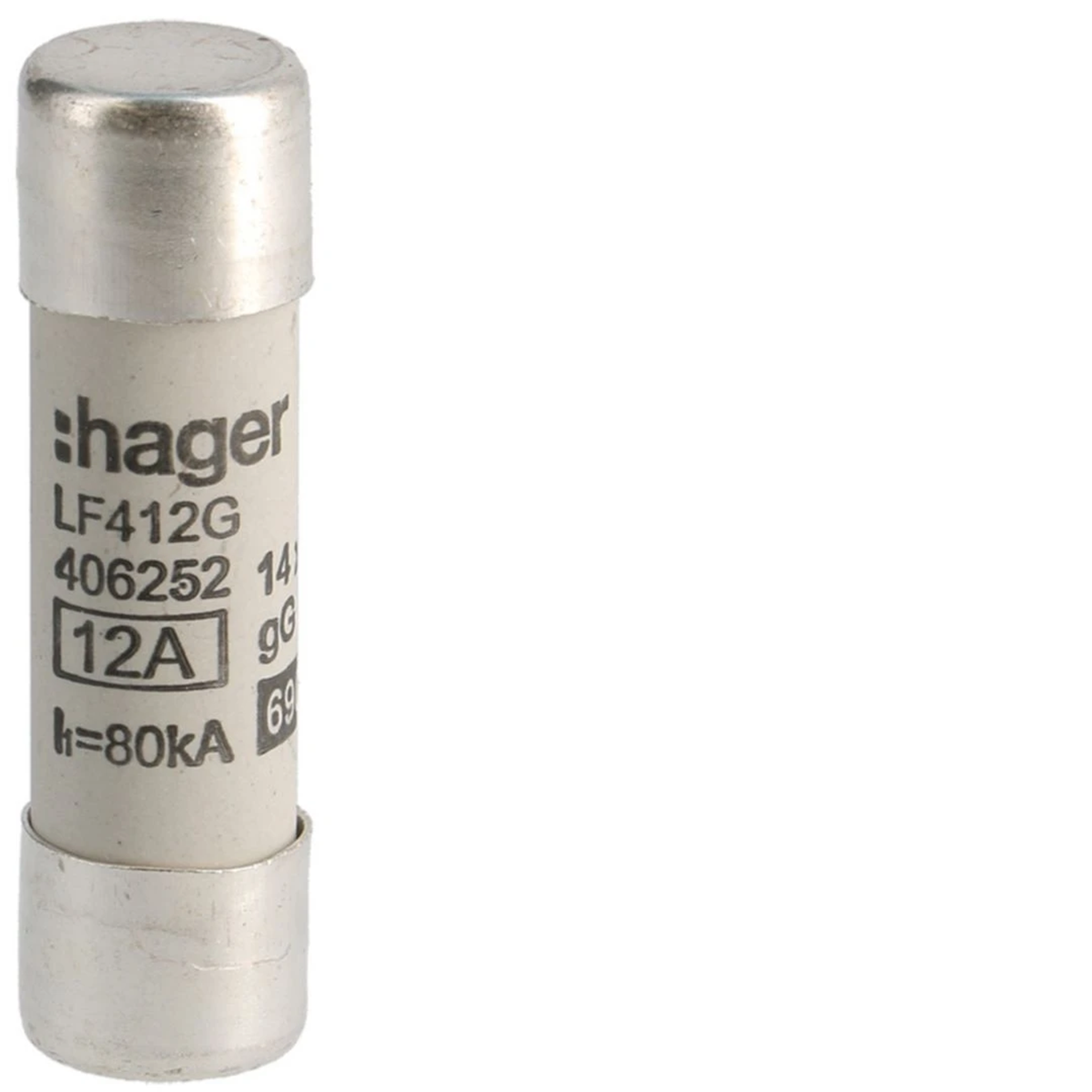

Cylindrical fuse 14x51 gG 12A LF412G
local index:
ABI223HAGE
Catalog No:
LF412G
EAN code:
3250614062520
Price:
16,53 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse:
- fuse insert size: 14x51mm,
- 12A.
Technical data
-
Rated frequency [Hz]50
-
power loss [W]1.7
-
Rated switching voltage [V]690
-
PKWIU27.12.21.0
-
Rated current [A]12
-
Fuse link size14 x 51
-
Rated short-circuit breaking capacity Icn [kA]80
Other technical data
-
ModelCeramic fuse
-
Rated current12 A
-
Voltage typeAC
-
Rated operating frequency50 ... 60 Hz
-
Release characteristicTime-lag (T)
-
Power loss at rated current1.7 W
-
Size14x51 mm
-
Rated voltage AC690 V
-
Utilization categorygG (cable protection/equipment protection)
-
Type of fuse status indicatorTop fuse status indicator
-
Zdolność wyłączania przy napięciu znamionowym, AC120 kA
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
