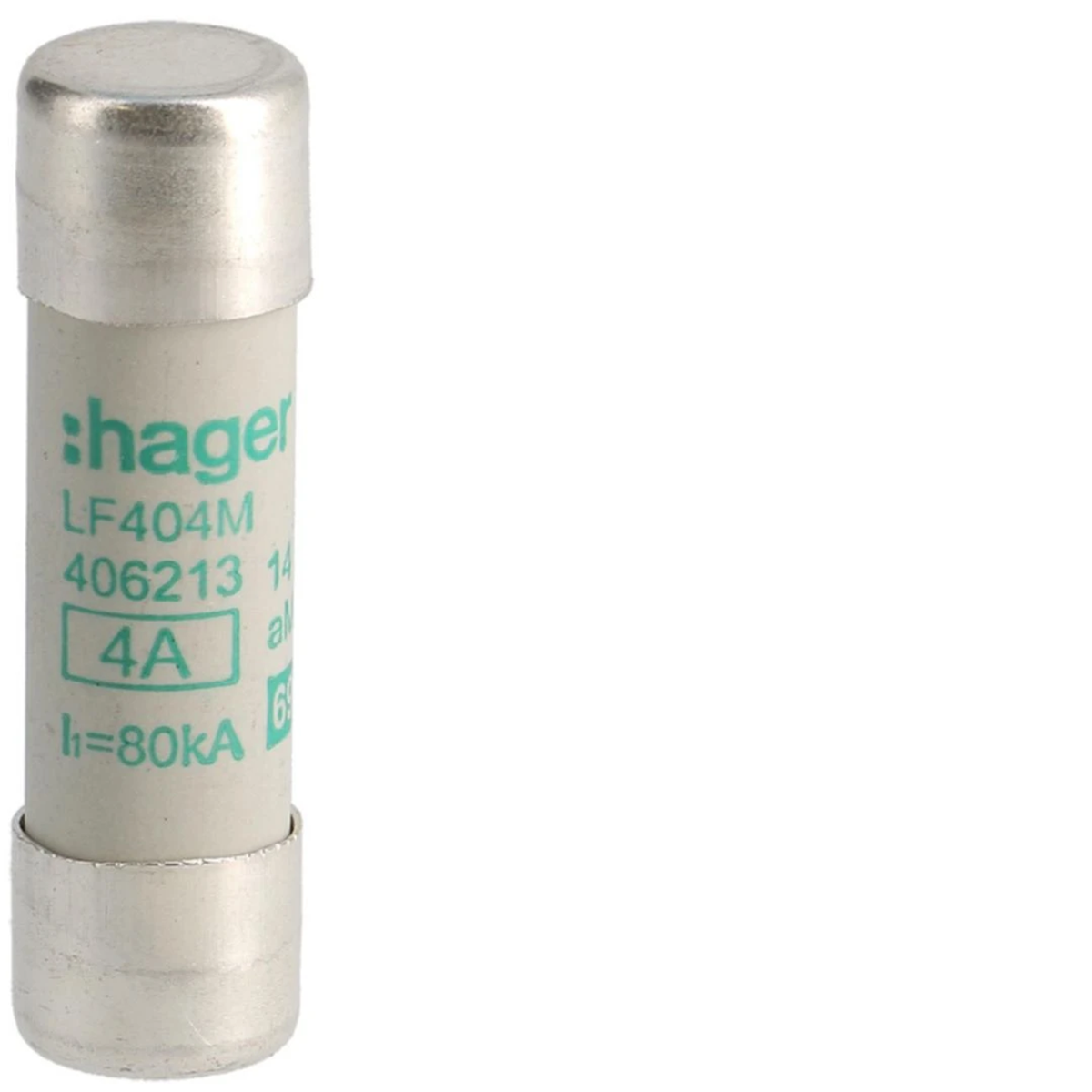

Cylindrical fuse 14x51 aM 4A LF404M
local index:
ABI217HAGE
Catalog No:
LF404M
EAN code:
3250614062131
Price:
6,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse:
- fuse insert size: 14x51mm,
- 4A.
Technical data
-
Rated current [A]4
-
Fuse link size14 x 51
-
Rated short-circuit breaking capacity Icn [kA]80
-
power loss [W]0.45
-
Rated switching voltage [V]690
-
PKWIU27.12.21.0
Other technical data
-
ModelCeramic fuse
-
Voltage typeAC
-
Rated voltage690 V
-
Rated operating frequency50 ... 60 Hz
-
Release characteristicTime-lag (T)
-
Power loss at rated current0.45 W
-
Size14x51 mm
-
Rated current4 A
-
Utilization categoryaM (switchgear protection)
-
Type of fuse status indicatorTop fuse status indicator
-
Breaking capacity80 kA
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 10 pcs. | 500 pcs. | 24000 pcs. | 10 pcs. | 500 pcs. | 24000 pcs. |
| Weight (kg) | 0,180 | 9,250 | 444,000 | 0,180 | 9,250 | 444,000 |
| Width (m) | 0,070 | 0,310 | 0,800 | 0,070 | 0,310 | 0,800 |
| Length (m) | 0,010 | 0,220 | 1,310 | 0,010 | 0,220 | 1,310 |
| Depth (m) | 0,100 | 0,360 | 1,200 | 0,100 | 0,360 | 1,200 |
