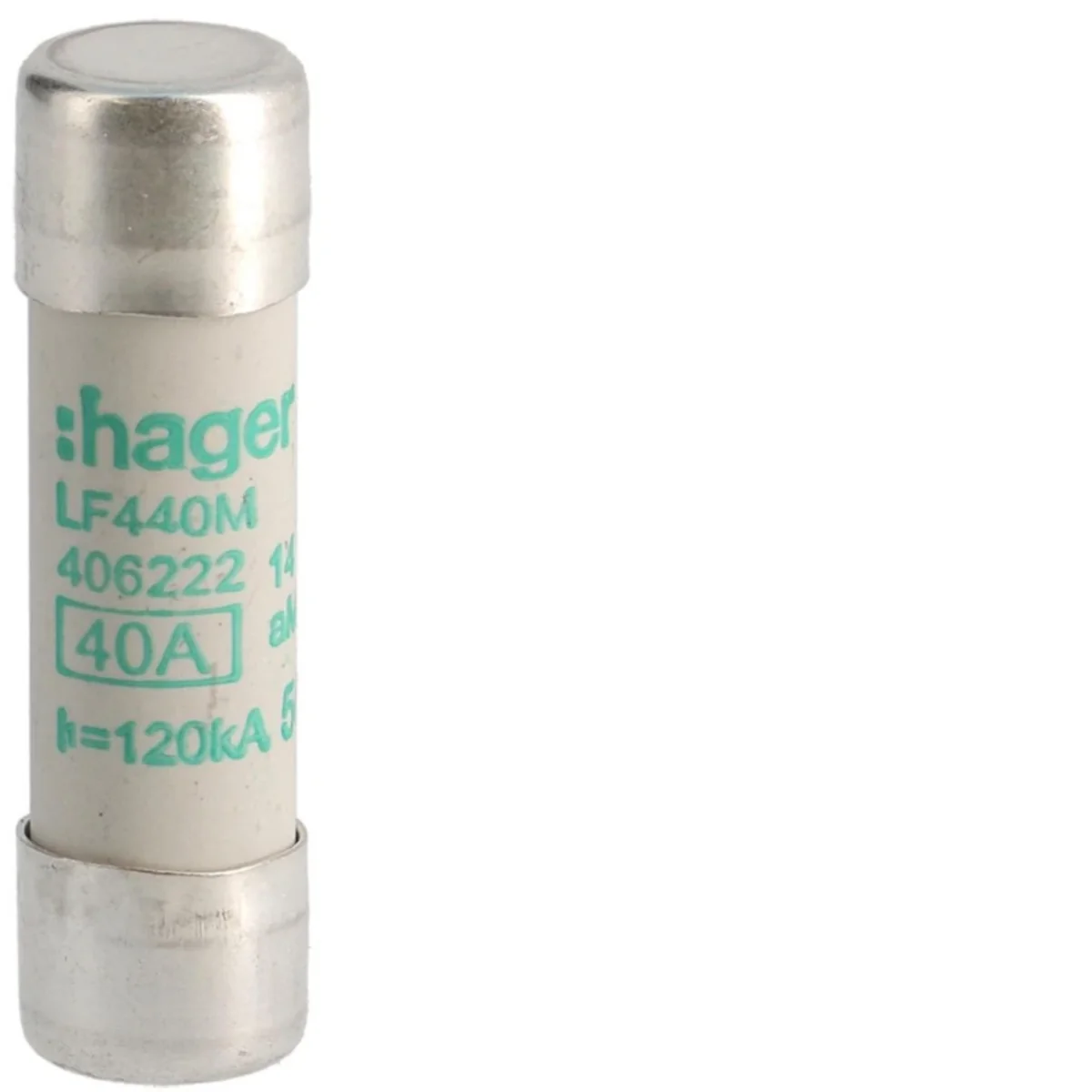

Cylindrical fuse 14x51 aM 40A LF440M

local index:
ABI233HAGE
Catalog No:
LF440M
EAN code:
3250614062223
Manufacturer: HAGER
Rated current [A]: 40
power loss [W]: 2.6
Fuse link size: 14 x 51
Price:
6,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cylindrical fuse:

  • fuse insert size: 14x51mm,
  • 40A.

Technical data

  • Rated current [A]
    40
  • Fuse link size
    14 x 51
  • Rated short-circuit breaking capacity Icn [kA]
    120
  • power loss [W]
    2.6
  • Rated switching voltage [V]
    500
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    14x51 mm
  • Utilization category
    aM (switchgear protection)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    120 kA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 1000 pcs. 24000 pcs.
Weight (kg) 0,018 0,193 19,575 492,800
Width (m) 0,022 0,080 0,290 0,800
Length (m) 0,079 0,079 0,130 0,670
Depth (m) 0,080 0,109 0,390 1,200
