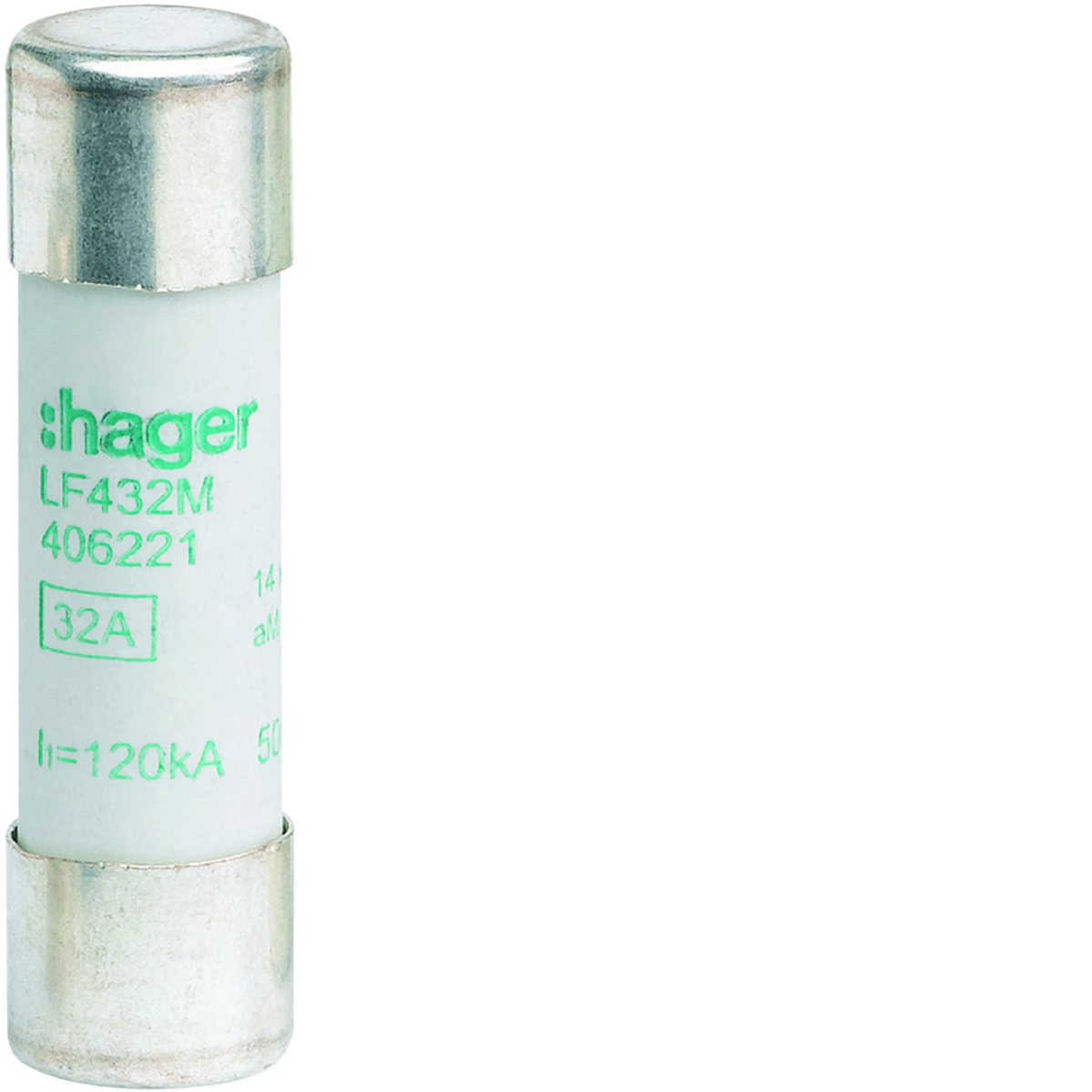

Cylindrical fuse 14x51 aM 32A LF432M
local index:
ABI231HAGE
Catalog No:
LF432M
EAN code:
3250614062216
Price:
6,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse:
- fuse insert size: 14x51mm,
- 32A.
Technical data
-
Rated current [A]32
-
Fuse link size14 x 51
-
Rated short-circuit breaking capacity Icn [kA]120
-
power loss [W]2.04
-
Rated switching voltage [V]500
-
PKWIU27.12.21.0
Other technical data
-
ModelCeramic fuse
-
Voltage typeAC
-
Rated voltage500 V
-
Rated operating frequency50 ... 60 Hz
-
Release characteristicTime-lag (T)
-
Power loss at rated current2.04 W
-
Size14x51 mm
-
Rated current32 A
-
Utilization categoryaM (switchgear protection)
-
Type of fuse status indicatorTop fuse status indicator
-
Breaking capacity120 kA
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 10 pcs. | 1000 pcs. | 24000 pcs. | 10 pcs. | 1000 pcs. | 24000 pcs. |
| Weight (kg) | 0,180 | 18,500 | 444,000 | 0,180 | 18,500 | 444,000 |
| Width (m) | 0,070 | 0,290 | 0,800 | 0,070 | 0,290 | 0,800 |
| Length (m) | 0,020 | 0,150 | 0,670 | 0,020 | 0,150 | 0,670 |
| Depth (m) | 0,100 | 0,380 | 1,200 | 0,100 | 0,380 | 1,200 |
