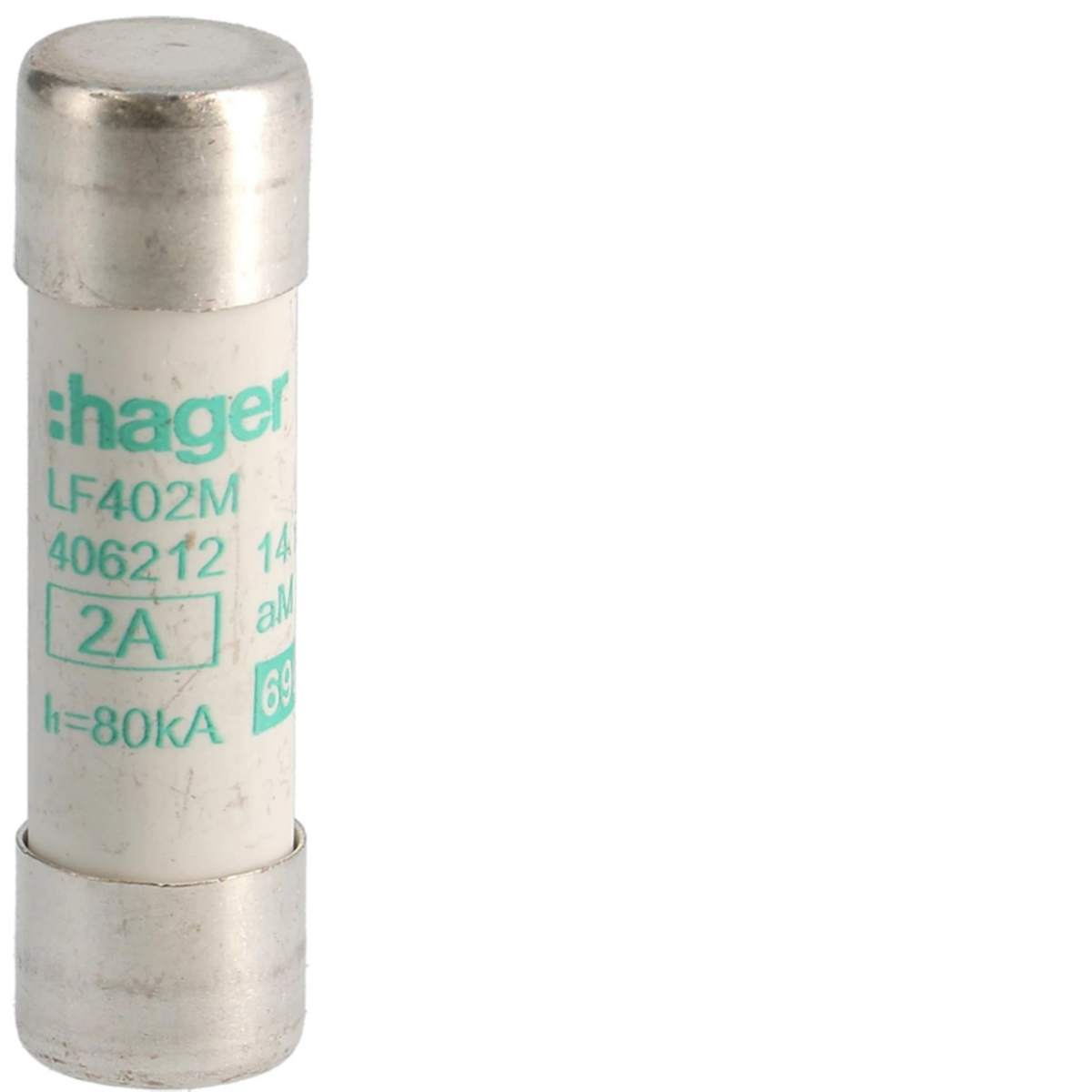

Cylindrical fuse 14x51 aM 2A LF402M
local index:
ABI215HAGE
Catalog number:
LF402M
EAN code:
3250614062124
Price:
30,73 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse:
- fuse link size: 14x51mm,
- 2A.
Technical data
-
Rated current [A]2
-
Fuse link size14 x 51
-
Rated short-circuit breaking capacity Icn [kA]80
-
power loss [W]0.24
-
Rated switching voltage [V]690
-
PKWIU27.12.21.0
Other technical data
-
ModelCeramic fuse
-
Rated current2 A
-
Voltage typeAC
-
Rated operating frequency50 ... 60 Hz
-
Release characteristicTime-lag (T)
-
Power loss at rated current0.24 W
-
Size14x51 mm
-
Rated voltage AC690 V
-
Utilization categoryaM (switchgear protection)
-
Type of fuse status indicatorTop fuse status indicator
-
Zdolność wyłączania przy napięciu znamionowym, AC80 kA
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 10 pcs. | 1000 pcs. | 12000 pcs. |
| Weight (kg) | 0,187 | 19,000 | 251,000 |
| Width (m) | 0,070 | 0,310 | 0,800 |
| Length (m) | 0,010 | 0,140 | 0,430 |
| Depth (m) | 0,100 | 0,390 | 1,200 |
