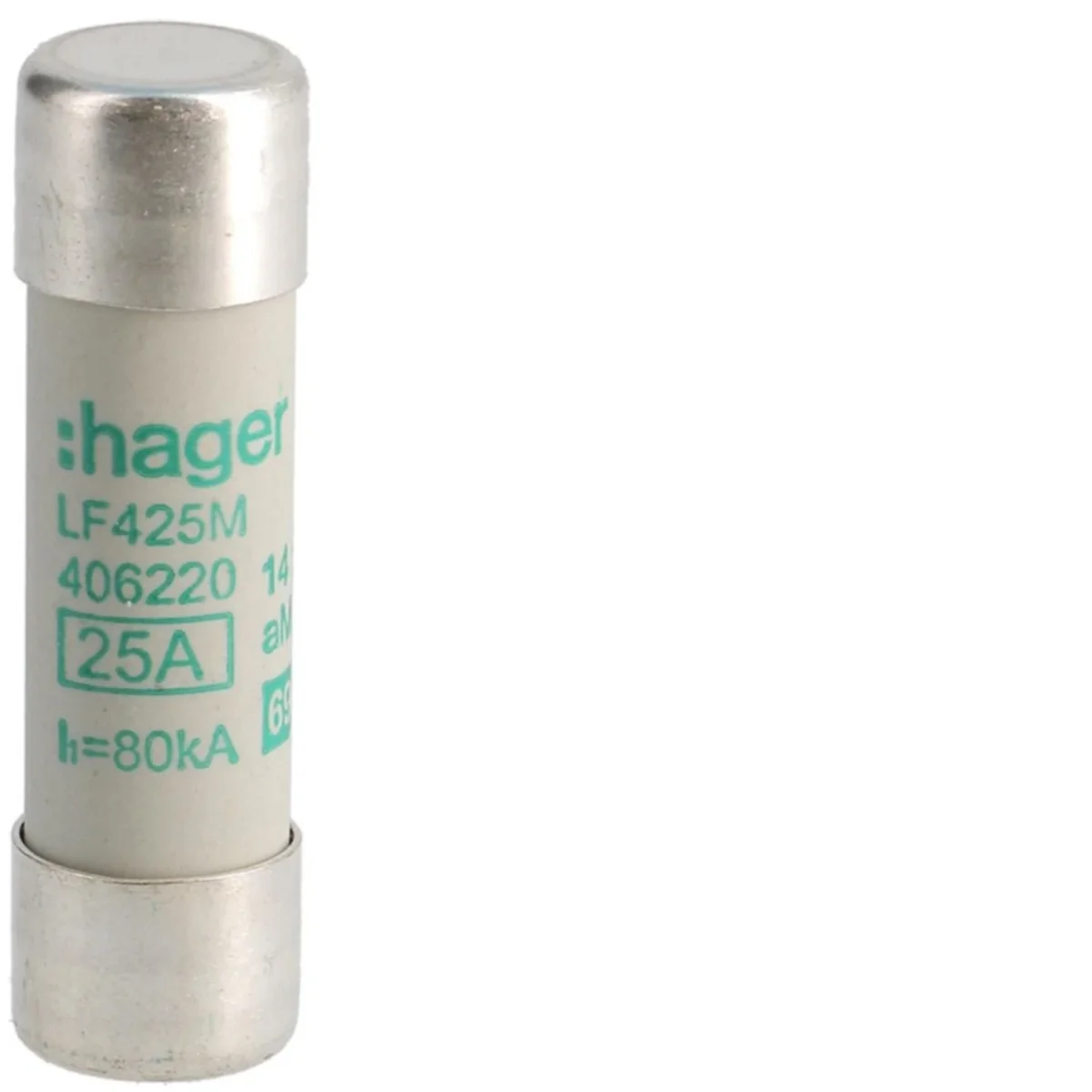

Cylindrical fuse 14x51 aM 25A LF425M
local index:
ABI229HAGE
Catalog No:
LF425M
EAN code:
3250614062209
Price:
6,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse:
- fuse insert size: 14x51mm,
- 25A.
Technical data
-
Rated current [A]25
-
Fuse link size14 x 51
-
Rated short-circuit breaking capacity Icn [kA]80
-
power loss [W]1.46
-
Rated switching voltage [V]690
-
PKWIU27.12.21.0
Other technical data
-
Size14x51 mm
-
Utilization categoryaM (switchgear protection)
-
Release characteristicOther
-
Voltage typeAC
-
Rated operating frequency50 ... 60 Hz
-
Breaking capacity80 kA
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 1000 pcs. | 24000 pcs. |
| Weight (kg) | 0,019 | 0,195 | 19,770 | 497,480 |
| Width (m) | 0,014 | 0,075 | 0,320 | 0,800 |
| Length (m) | 0,014 | 0,015 | 0,215 | 0,670 |
| Depth (m) | 0,051 | 0,105 | 0,370 | 1,200 |
