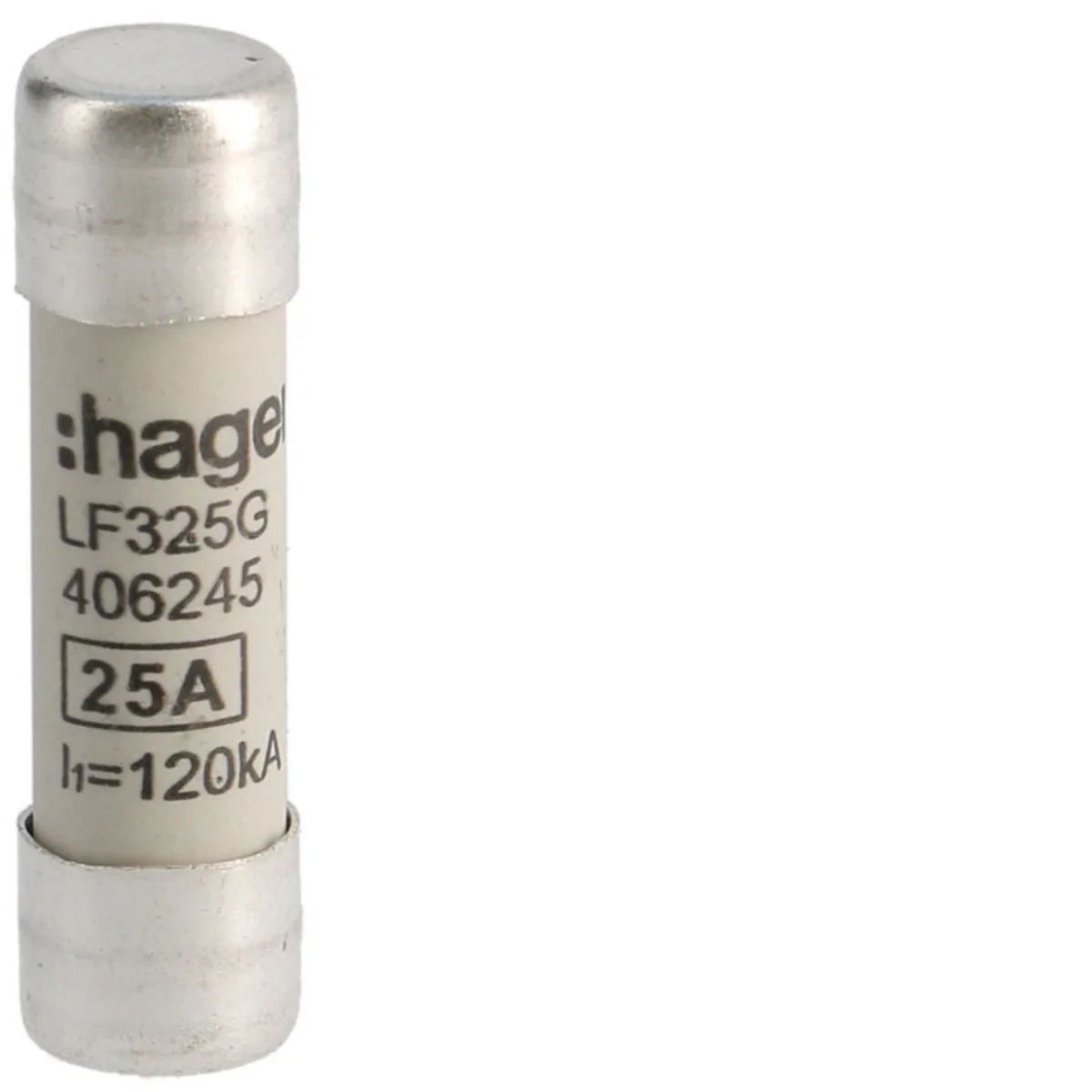

Cylindrical fuse 10x38 gG 25A LF325G
local index:
ABI027HAGE
Catalog No:
LF325G
EAN code:
3250614062452
Price:
2,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cylindrical fuse 10x38 gG 25A
Technical data
-
Rated current [A]25
-
Height [mm]10
-
Width [mm]38
-
PKWIU27.12.21.0
Other technical data
-
ModelCeramic fuse
-
Voltage typeAC
-
Rated voltage500 V
-
Rated operating frequency50 ... 60 Hz
-
Release characteristicTime-lag (T)
-
Power loss at rated current2.6 W
-
Size10x38 mm
-
Rated current25 A
-
Utilization categorygG (cable protection/equipment protection)
-
Type of fuse status indicatorTop fuse status indicator
-
Breaking capacity120 kA
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 10 pcs. | 2000 pcs. | 48000 pcs. |
| Weight (kg) | 0,060 | 13,000 | 312,000 |
| Width (m) | 0,050 | 0,280 | 0,800 |
| Length (m) | 0,010 | 0,130 | 0,560 |
| Depth (m) | 0,080 | 0,380 | 1,200 |
