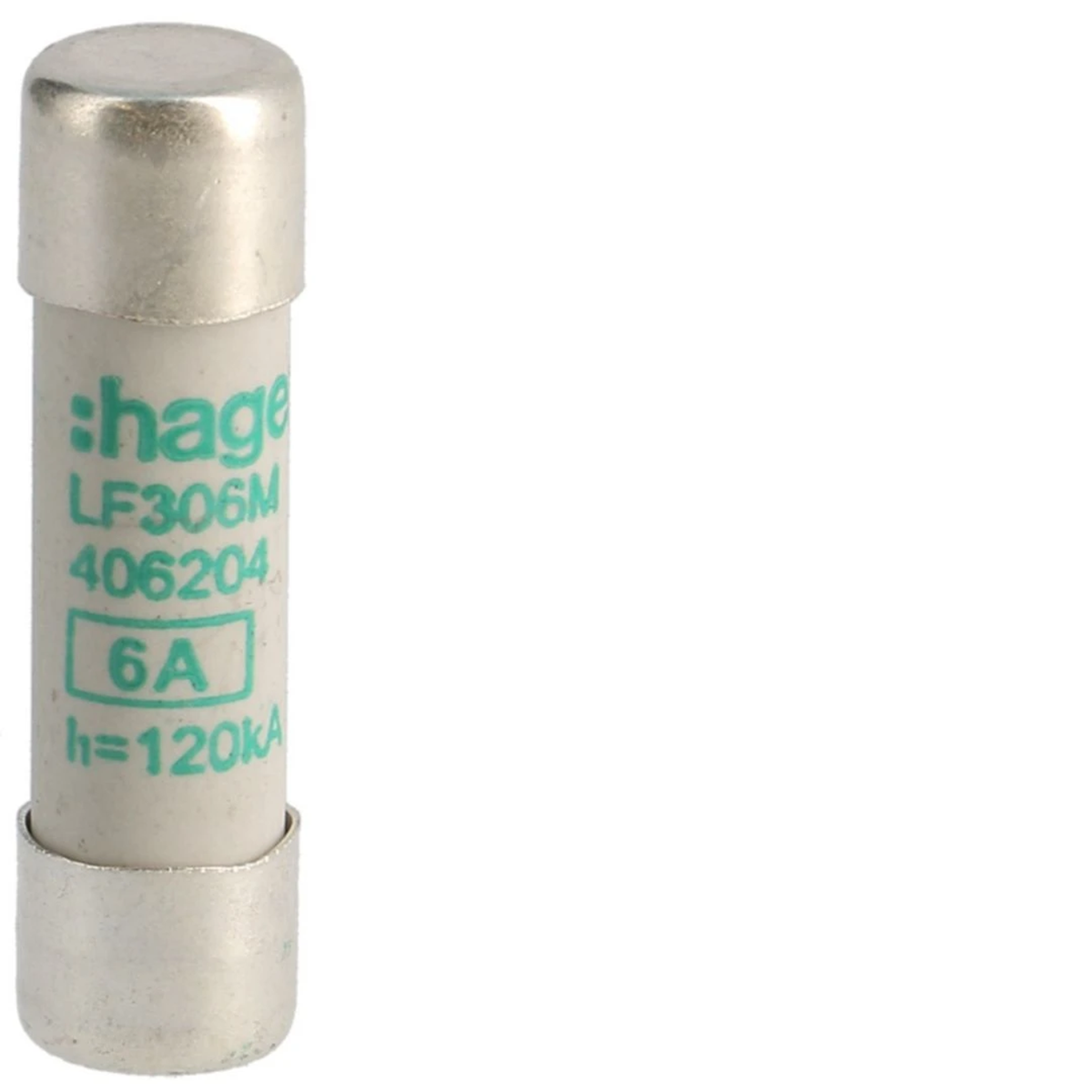

Name: Cylindrical fuse 10x38 aM 6A
Brand: HAGER
SKU: ABI023HAGE
Price: 5.24 PLN

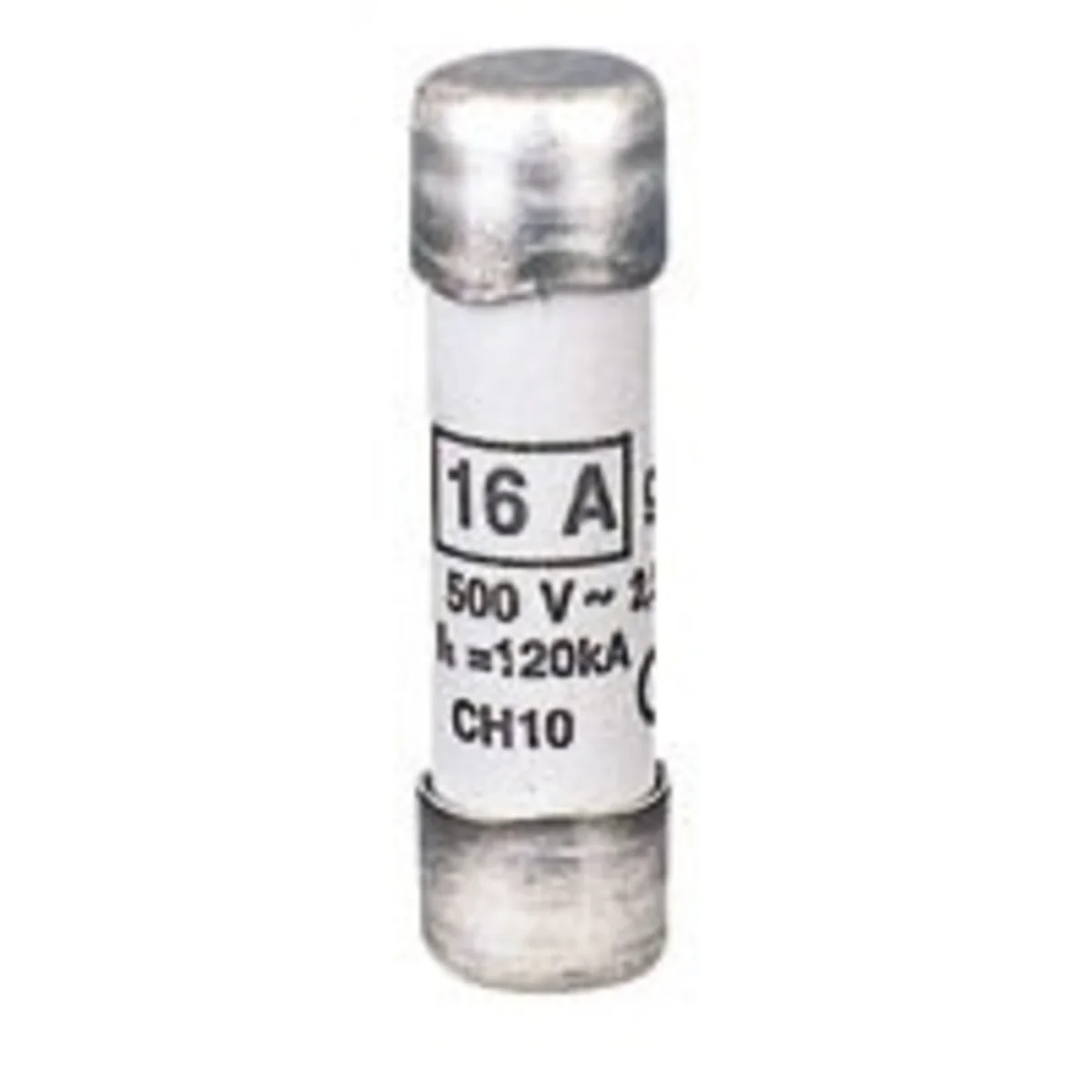

Cylindrical fuses. Type CH, characteristics gG and aM
• material: ceramic cylinder and copper contact caps, silver-plated
• operating temperature: from -25°C to +70°C
• storage temperature: -40°C to +80°C
• sold in full packages of 10 pcs
• standards: EN/IEC 60269-1

Width [mm]

38
PKWIU

27.12.21.0

Height [mm]

10

Other technical data

Size

10x38 mm
Utilization category

aM (switchgear protection)
Release characteristic

Other

Voltage type

AC
Rated operating frequency

50 ... 60 Hz
Breaking capacity

120 kA

Manufacturer details

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	2000 pcs.	48000 pcs.
Weight (kg)	0,007	0,075	15,430	393,320
Width (m)	0,010	0,050	0,295	0,800
Length (m)	0,010	0,015	0,130	0,670
Depth (m)	0,038	0,080	0,380	1,200
