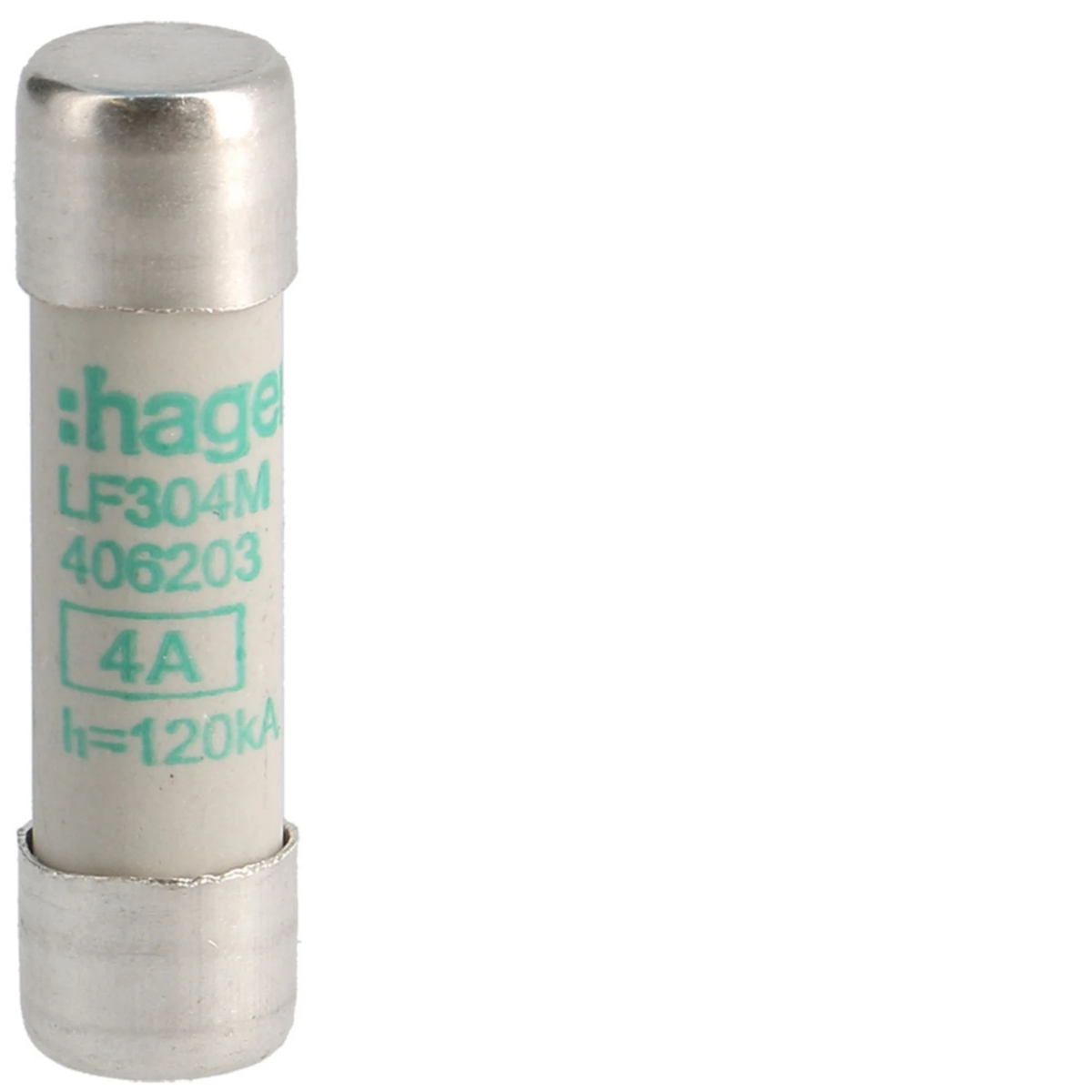

Cylindrical fuse 10x38 aM 4A LF304M

local index:
ABI012HAGE
Catalog No:
LF304M
EAN code:
3250614062032
Manufacturer: HAGER
Width [mm]: 58
Height [mm]: 10
Price:
4,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cylindrical fuses Type CH, characteristics gG and aM
• material: ceramic cylinder and copper contact caps, silver-plated
• operating temperature: from -25°C to +70°C
• storage temperature: -40°C to +80°C
• sold in full packages of 10 pcs
• standards: EN/IEC 60269-1

Technical data

  • Width [mm]
    58
  • PKWIU
    27.12.21.0
  • Height [mm]
    10

Other technical data

  • Size
    10x38 mm
  • Utilization category
    aM (switchgear protection)
  • Release characteristic
    Other
  • Voltage type
    AC
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    120 kA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 2000 pcs. 48000 pcs.
Weight (kg) 0,007 0,077 15,650 398,600
Width (m) 0,010 0,054 0,290 0,800
Length (m) 0,010 0,011 0,125 0,670
Depth (m) 0,038 0,080 0,380 1,200
