ctx-1 contactor 65A 230V~ 416166

local index:

ATA003LEGR

Catalog number:

416166

EAN code:

3414970401168

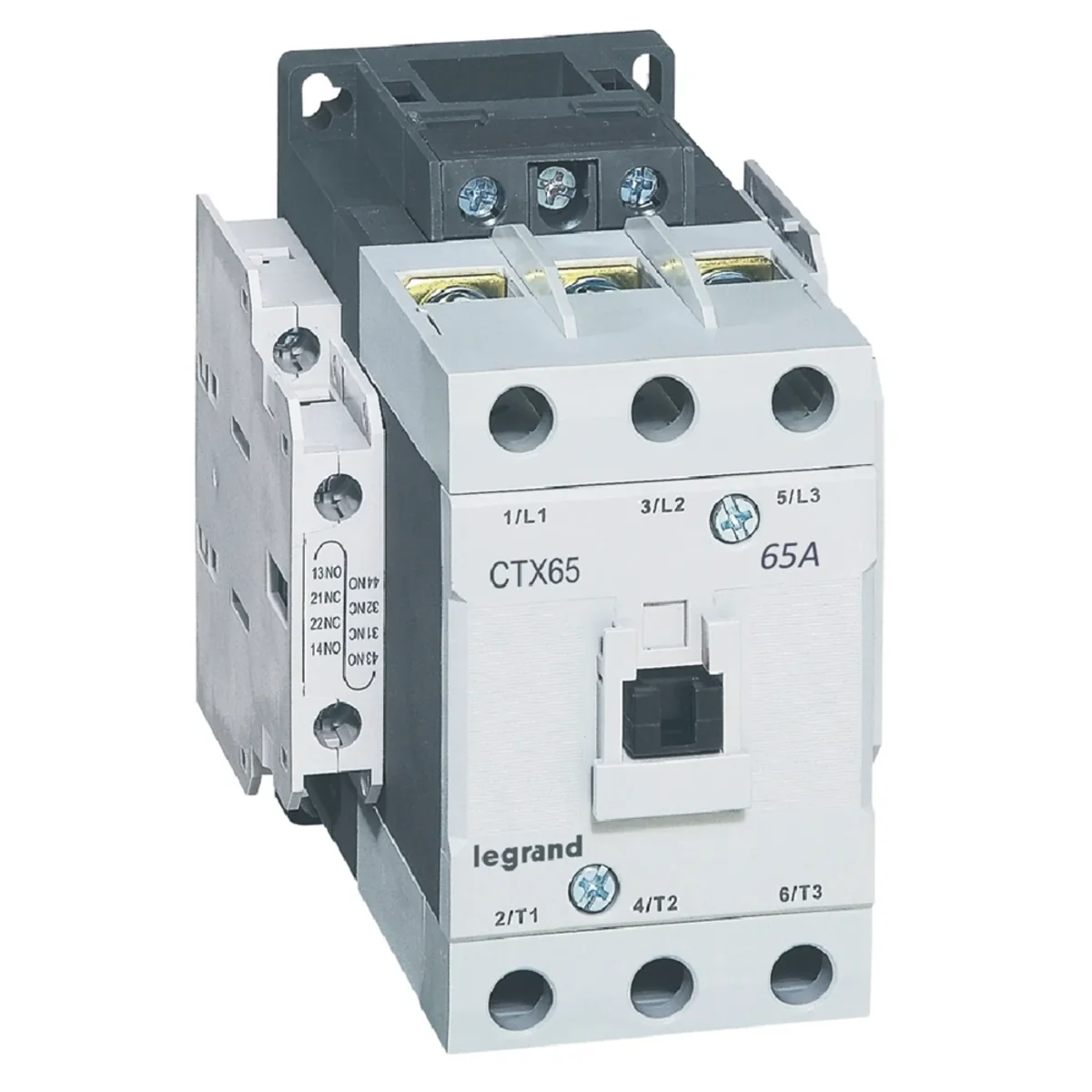

Click on the photo to enlarge

Manufacturer: LEGRAND

Frequency [Hz]: 50/60

Number of poles: 3

Rated voltage [V]: 230

See full description

869

zł

gross / pcs. (including VAT 23%)

Dostępne up to 2 weeks

On request

Choose your wholesaler

Choose

Quantity pcs. (multiplicity: 1 )

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

CTX-1 industrial contactors:
Three-pole from 9 A to 105 A
Three-pole electromagnetic contactors with and without built-in auxiliary contact
Contactor main contacts 3 x NO
Utilization categories AC1 and AC3
Contactors can be equipped with auxiliary contacts mounted on the front or side of the contactor xxx
Connection terminals protected against accidental touch in accordance with VDE 0106T.100.VBG4
Products meet the requirements of EN 60947-1, EN 60947- 4-1, EN 60947-5-1
Contactors: CTX-1

Technical data

Frequency [Hz]

50/60
Rated voltage [V]

230
Clamp type

Keyboard
PKWIU

27.12.24.0

Number of poles

3
Rated current [A]

65
Rated switching voltage [V]

690

Other technical data

Rated control supply voltage AC 50 Hz

195.5 ... 253 V
Voltage type for actuating

AC
Number of normally open contacts as main contact

3
Rated operation current Ie at AC-1, 400 V

100 A
Rated operation power at AC-3, 400 V

30 kW
Rated operation power at AC-4, 400 V

22 kW
Number of auxiliary contacts as normally closed contact

2

Rated control supply voltage AC 60 Hz

195.5 ... 253 V
Number of normally closed contacts as main contact

0
Type of electrical connection of main circuit

Cable clamp
Rated operation current Ie at AC-3, 400 V

65 A
Rated operation current Ie at AC-4, 400 V

47 A
Number of auxiliary contacts as normally open contact

2
Modular version

Yes

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Bulk packaging

A kind of package	Pudełko	Karton	Paleta	Pudełko	Karton	Paleta
Quantity	1 pcs.	10 pcs.	180 pcs.	1 pcs.	10 pcs.	180 pcs.
Weight (kg)	0,922	9,704	174,672	0,922	9,704	174,672
Volume (m3)	0,001	0,018	0,924	0,001	0,018	0,924
Width (m)	0,111	0,460	1,200	0,111	0,460	1,200
Length (m)	0,134	0,160	0,770	0,134	0,160	0,770
Depth (m)	0,090	0,250	1,000	0,090	0,250	1,000
